Suburban SF-35Q User Manual

CAULK BEHIND VENT CAP AS SHOWN TO SEAL
BETWEEN EXHAUST AND INTAKE AND TO
PREVENT MOISTURE INSIDE FURNACE
COMPARTMENT. APPLY CAULKING GENEROUSLY
AROUND PERIMETER
OF VENT CAP AND ACROSS
CENTER AS SHOWN. CENTER PUTTY STRIP IS
ESSENTIAL.
DETAIL "A"
FURNACE CABINET

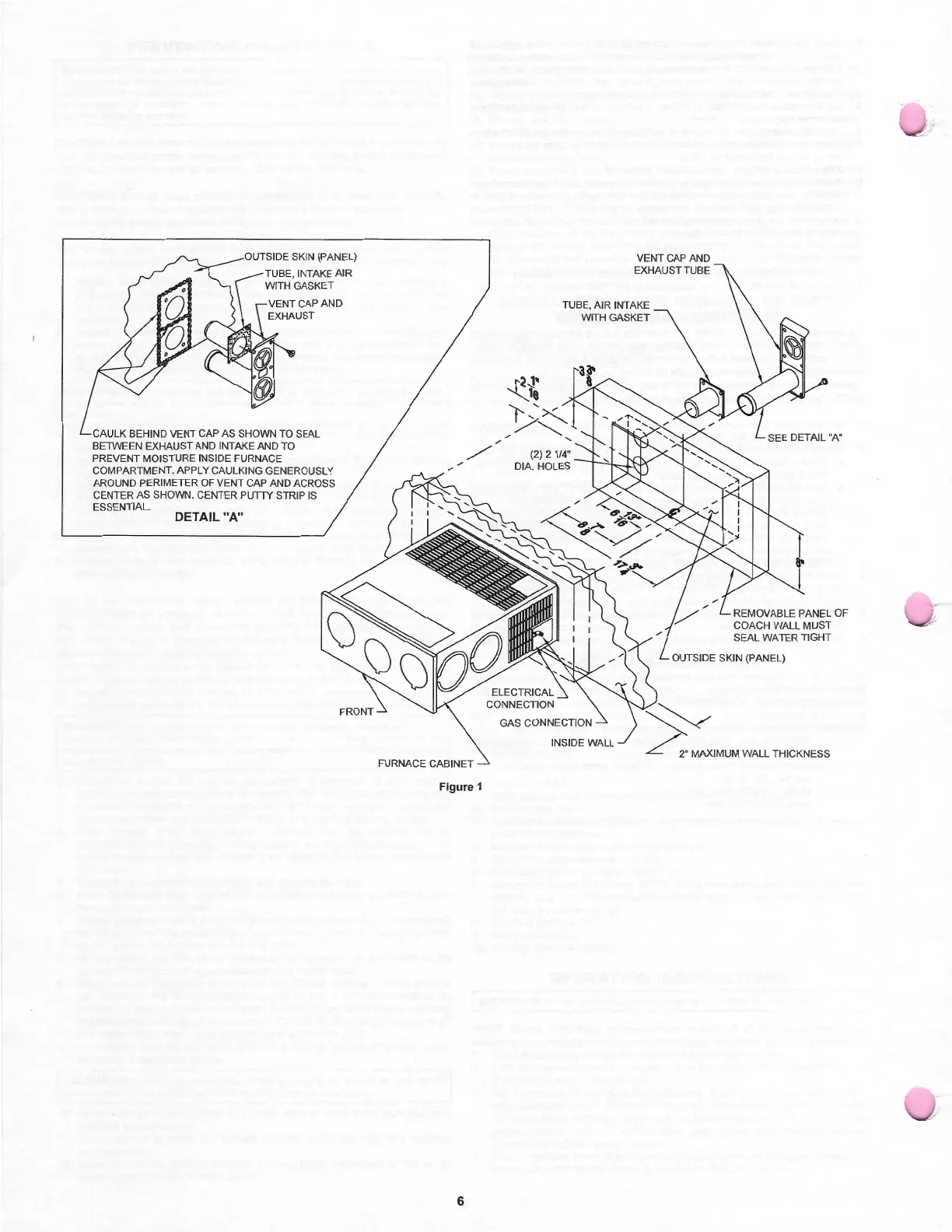

Figure 1
6
VENT CAP AND
EXHAUST TUBE
TUBE, AIR INTAKE
WITH GASKET
REMOVABLE PANEL OF
COACH WALL MUST
SEAL WATER TIGHT
OUTSIDE SKIN (PANEL)
INSIDE WALL
~•MUM WACC '"' C'""
