Hinge Adjustment
IMPORTANT NOTE: T
he wine storage unit must be
installed and leveled before door hinge adjustments can
be made.
The top and bottom cabinet hinges on models 424 and
424FS are held in place with three permanent adjustment
screws and two shipping screws. Refer to the illustrations
below. The shipping screws must be removed and dis-
carded to adjust the door alignment and fit. If no adjust-
ments are necessary, it is recommended that all five
screws remain in place.
On the model 424FS, only the bottom door hinge can be
adjusted. Remove and discard the two shipping screws
and loosen the three hinge screws to adjust the door.
Refer to illustration 12.
Models 424 and 424FS Installation 13
subzero.com
Completing the Installation
IMPORTANT NOTE: W
hen you have completed the instal-
lation of the model 424 or 424FS wine storage unit, refer
to page 50 for an installation checklist and page 51 for
service information.

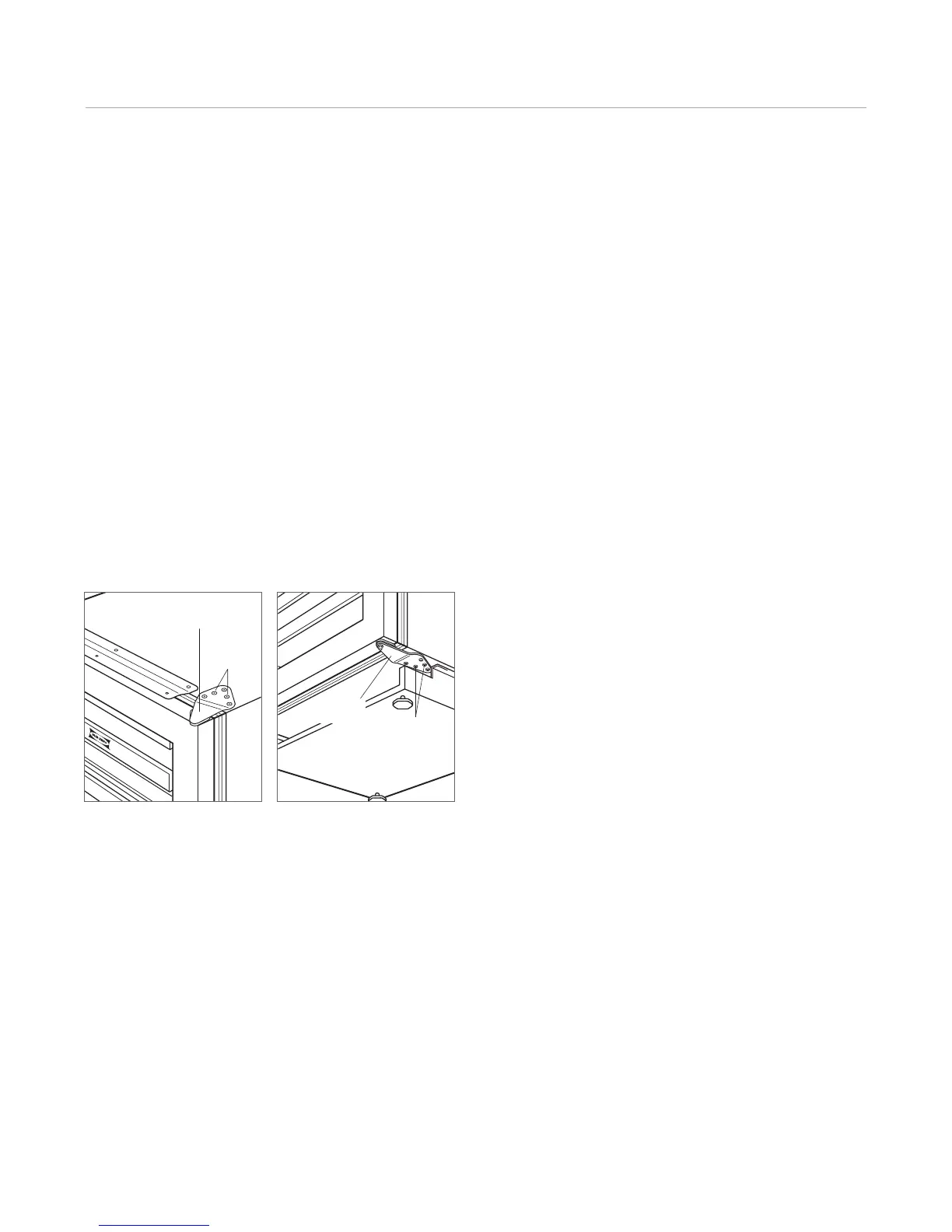

TOP DOOR HINGE
SHIPPING
SCREWS
Top hinge. Bottom hinge.
BOTTOM
DOOR HINGE
SHIPPING
SCREWS
