Model WS-30 Installation 26
Model WS-30 Installation
M
ake sure that the actual equipment that was shipped to
you matches the design you are expecting to install.
Before you begin the installation process, check the exact
model number you need against the model number on the
shipping carton. If the unit you receive does not match
your requirements, contact your Sub-Zero dealer.
The model WS-30 wine storage unit offers the following
design alternatives—framed, overlay, flush inset and stain-
less steel models. The overlay model has two design
applications—overlay and flush inset.
Each of these design options has specific installation
requirements, which means it is vital that the unit match

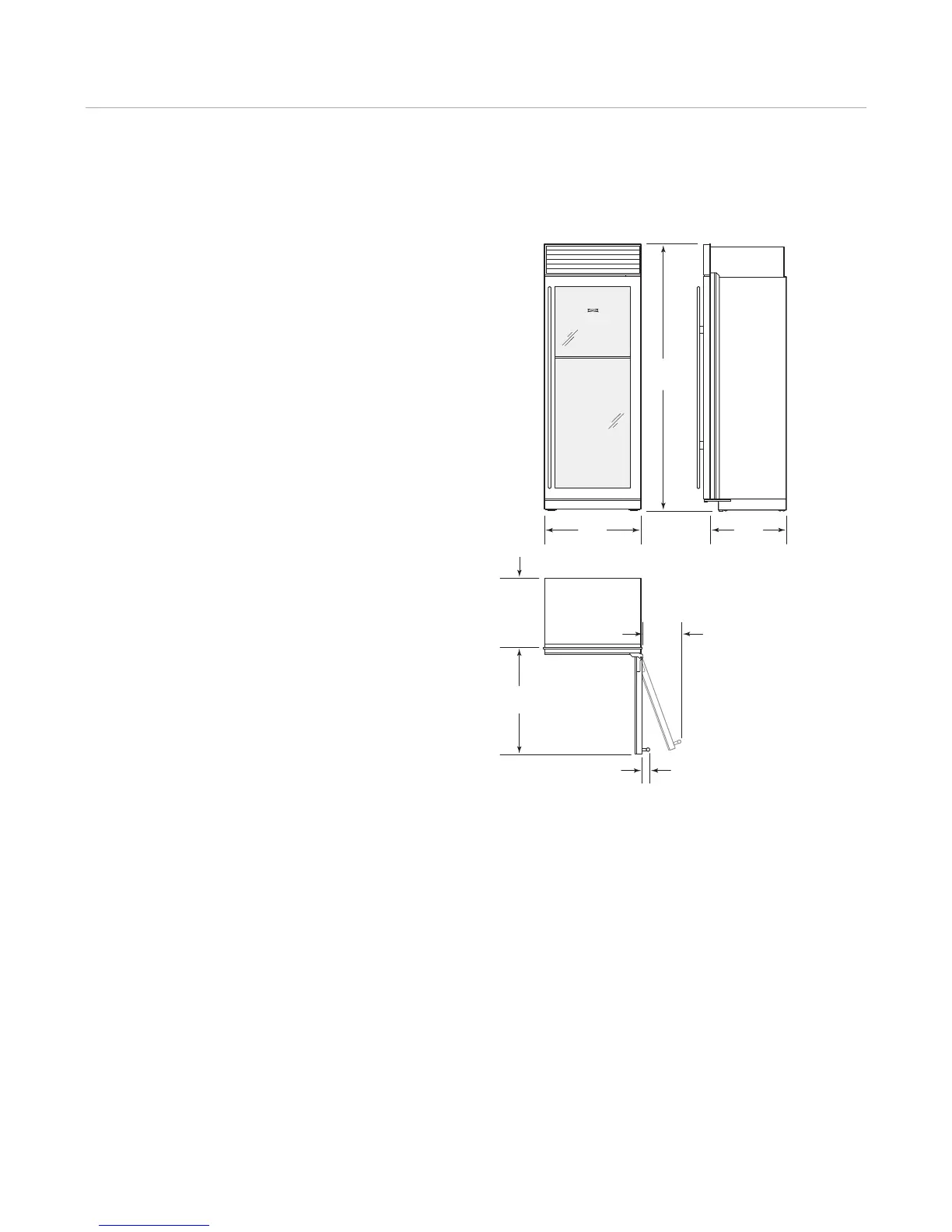

your planning and space needs. Refer to the overall
dimensions illustration for model WS-30 shown in the
stainless steel design. Dimensions will be the same for all
design applications.
The door of the model WS-30 opens to a maximum of
110°. A 90° door stop is shipped with the unit. The handle
depth reflects a tubular, curved or pro handle. For addi-
tional information, refer to the full-scale templates in the
Sub-Zero design guide.
30"
(762)
84"
(
2134)
24"
(610)
23
7
/8"
(606)
BEHIND
FRAME
2
3
/8"
(60)
31
1
/4"*
(794)
17"
(432)
*Add 1/2" (13) for flush inset application.
