2-11
7040127 - Revision C - May, 2015
Built-In (BI) Series
Built-In (BI) Series
(SWS #4250000)
(SWS #4250000)
Installation Information
Side to Side and In and Out Adjustment Procedure:
IMPORTANT NOTE: Side to side and in and out
adjustments only affect the top of the door. The bottom
hinge is stationary, except for up and down adjust-
ments.
1. Slightly loosen the two upper cabinet hinge mount-
ing bolts using a 1/2" wrench (See Figure 2-13).
2. For side to side adjustments, use a 3/8" open-end
wrench to turn the bolt mounted left to right in the
top hinge assembly in the appropriate direction (See
Figure 2-13).
3. For in and out adjustments, use a 5/32" allen
wrench to turn the bolt mounted front to back in the
top hinge assembly in the appropriate direction (See
Figure 2-13).

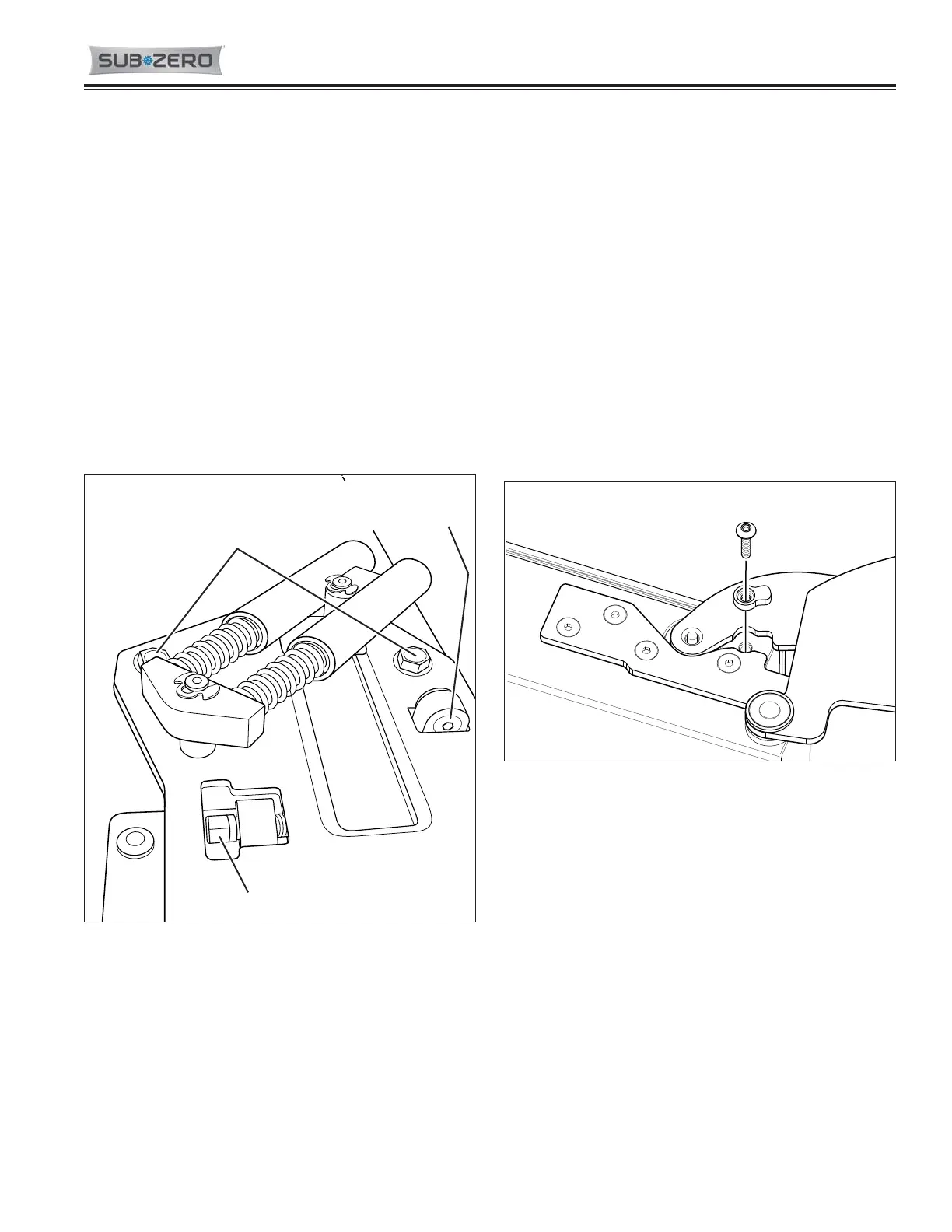

Figure 2-13. Door Adjustment,
Left to Right and In and Out
90-Degree Door Stop
The doors on all Built-in Series units open to 110-
degrees. An optional 90-degree door stop kit is sup-
plied with the unit, and is also available through a Sub-
Zero dealer or distributor.
The 90-degree door stop will be installed in the top
hinge of the door.
Door Stop Installation Procedure:
1. Open door to approximately 90 degrees.
2. At top of door, insert door stop cam down
between door hinge and door closer arm as
shown in Figure 2-14.
3. Insert screw through door stop and into door as
shown in Figure 2-14.
Figure 2-14. 90 Degree Door Stop
