BACK PANEL
DI / LINE OUT
The Reactive Load is equipped with balanced and unbalanced outputs. Use these to
connect the Reactive Load to a recording device, effect, or power amplier.
INPUT - From Amp (8 Ohm/100 Watts RMS Max.)
Connect the speaker output from your amplier to the Input on the Reactive Load using
a speaker cable.
IMPORTANT: Do not use an instrument cable when connecting your amplier to the
input of the Reactive Load.
THRU TO SPEAKER (Optional)
Use this output to connect your amplier through to a speaker cabinet.
IMPORTANT: Using this output disconnects the internal load of the Reactive Load.
To optimize performance and avoid damage, match the impedance of your amplier to
the connected speaker cabinet. NEVER CONNECT THIS OUTPUT TO INSTRUMENT,
MIC OR LINE LEVEL INPUTS.
THRU/ To Speaker (optional)
When in use, this disconnects the Reactive Load

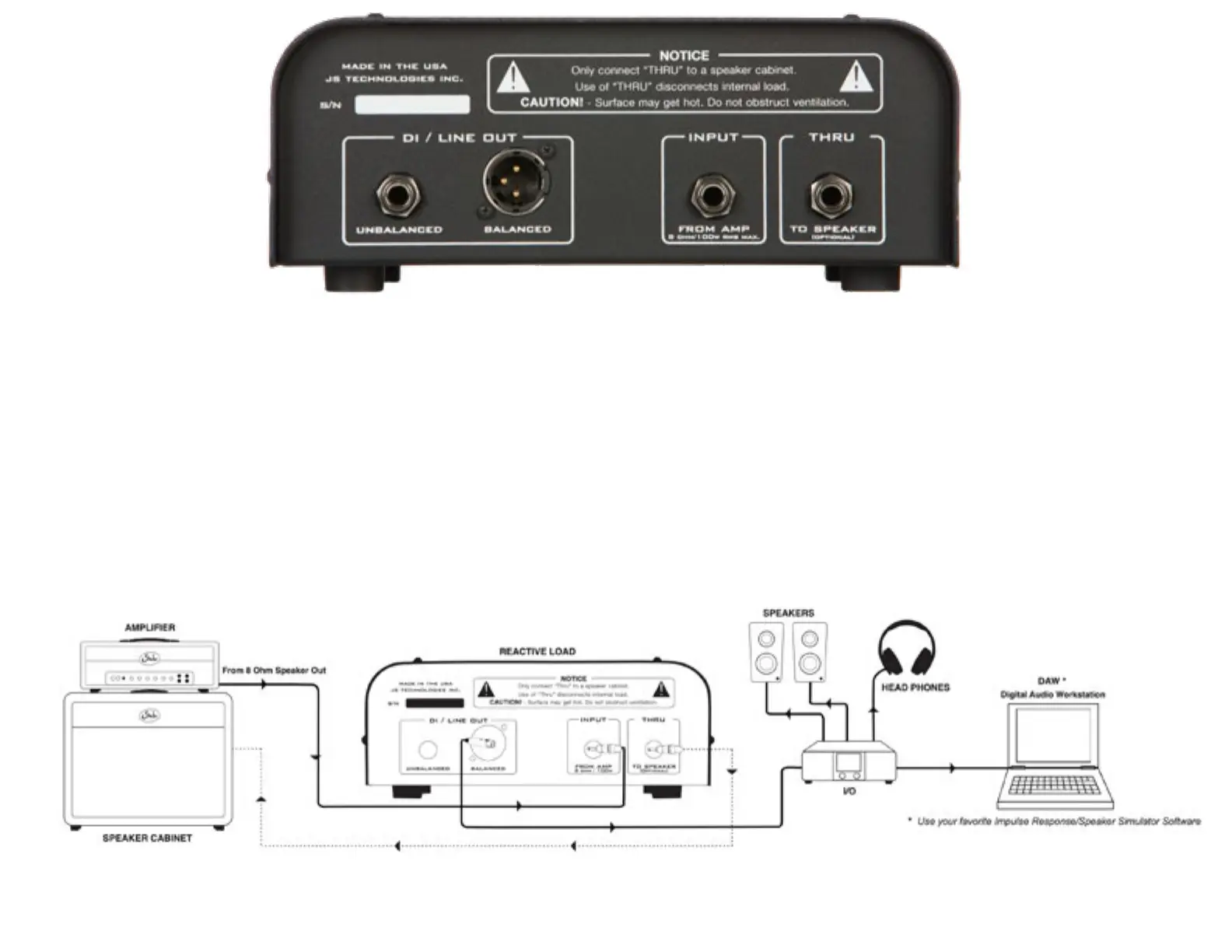

Connecting The Reactive Load
