INSTALLATION STEPS
1. BEFORE PROCEEDING
WARNING: Read all the instructions completely before proceeding.SUMERAIN recommends calling a professional
if you are uncertain about installing this product!, this product should be installed in accordance with all
local and state plumbing and building codes.
2. SHUT OFF WATER SUPPLY
Locate water supply inlets and shut off the water supply valves. These are usually found near the water meter. if you are
replacing an existing unit, remove the old unit and clean the mounting surface thoroughly.

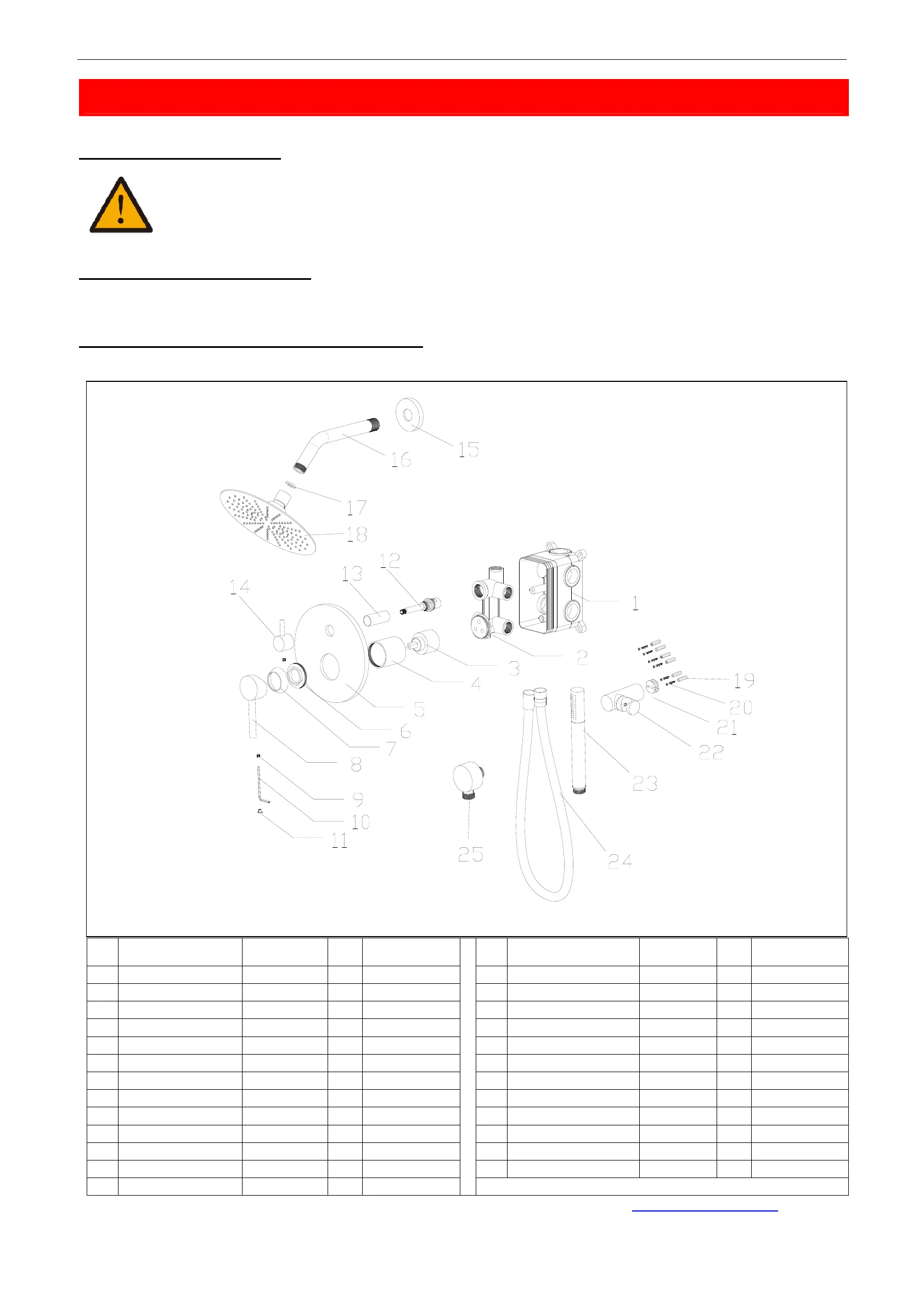

3. CHECKING THE CONTENTS OF THE BOX
Upon opening the box, check to ensure that all the following items are included.
NO. ITEM NAME MATERIAL QTY PART NO.
NO. ITEM NAME MATERIAL QTY PART NO.
1 Concealed Box ABS 1 PSA00011XX 14 Diverter knob Zn Alloy No.3 1 PHD00004XX
2 Rough-in valve HPB59-1 1 PVB32180PB 15 Shower arm flange SUS304 1 PFC00001XX
3 Φ40 cartridge ASSEMBLE 1 PCT40000XX 16 Shower arm SUS304 1 PPI32300XX
4 Sleeve HPB59-1 1 PSL00002XX 17 Flow controller ASSEMBLE 1 PAE00030XX
5 Escutcheon SUS304 1 PCP32300XX 18 Shower head ASSEMBLE 1 PTR00002XX
6 Bonnet nut HPB59-1 1 PSC42125PB 19 Anchor ABS 5 PSA00010XX
7 Flange SUS304 1 PFC42125XX 20 Mounting screw SUS304 5 PSC00002XX
8 Handle(lever) Zn Alloy No.3 1 PHD00003XX 21 Shower holder dock HPB59-1 1 PEC32230PB
9 Set screw SUS304 4 PSC05050XX 22 Hand shower holder HPB59-1 1 PHH32231XX
10 Allen wrench 2.5mm Fe45# 1 PSA00003XX 23 Handheld shower ASSEMBLE PHS32230XX
11 Screw cover ABS 1 PSA00002XX 24 Shower hose ASSEMBLE 1 FAE32300XX
12 Diverter cartridge ASSEMBLE 1 PCT00001XX 25 Wall supply elbow HPB59-1 1 PHH32235XX
13 Diverter sleeve HPB59-1 1 PSL32181XX
If any of these items are missing, please contact SUMERAIN consumer service by email to: supports@sumerain.com.
