3. Installation
3-1 Installation dimensions/method
Refer to p.7 for the outside dimensions.

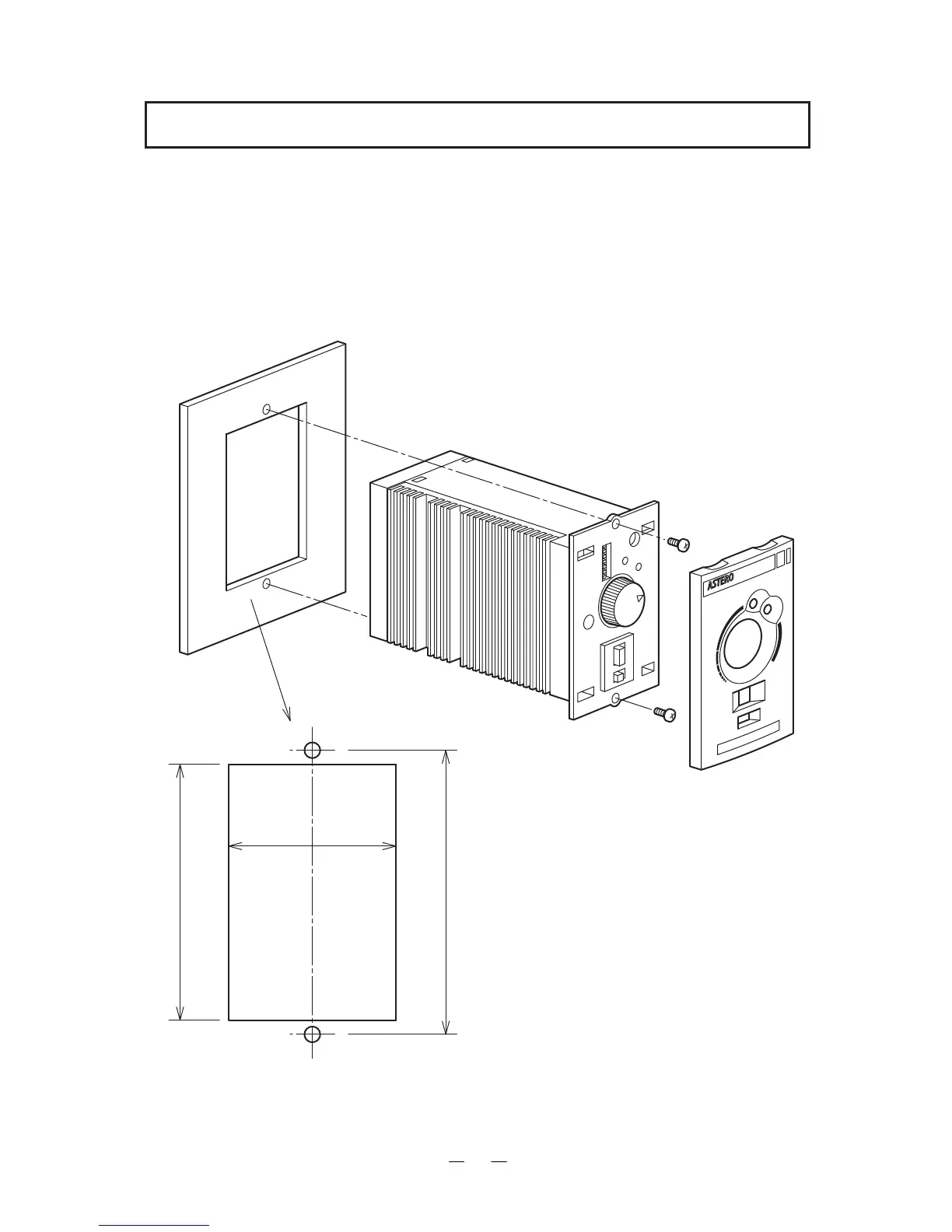

Refer to Fig.(a) when installing the machine. Machine the installa-
tion surface as shown in Fig.(b).
(DIN rail cannot be attached.)
Secure the machine without a gap between the machine and
the mounting surface by using the mounting hole in the con-
trol unit.
81
+1
0
90
53
+1
0
AC INVER
TER
(b)
(a)
