10

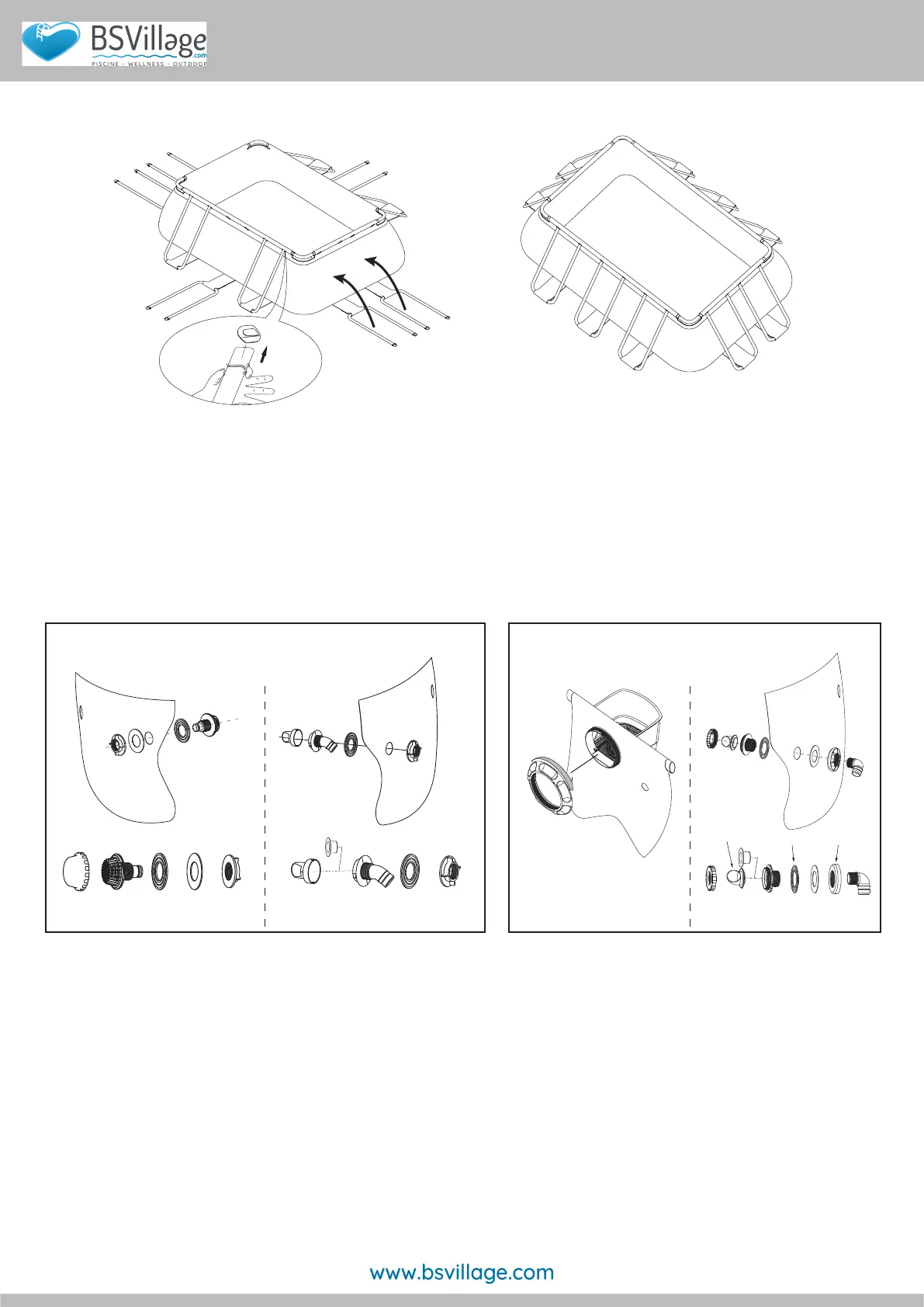

12. Insert the ends of the U-Shaped Pipes 2 into the top frame.
Please Note: The Black Rubber gasket (Fitting Gasket) should always be slid over the threaded plastic suction or return fitting and be on the inside before the fitting
is placed through the pool wall to make a watertight connection.
Make sure to put on both the Water Cap and the Service Plug while you fill your pool, or until you are ready to add a filtration system.
IMPORTANT: BEFORE ADDING WATER TO YOUR POOL YOU MUST INSTALL THE POOL WALL
FITTINGS OR ENTIRE FILTRATION SYSTEM FIRST. BEFORE ADDING WATER TO YOUR POOL
FOLLOW THE INSTRUCTIONS BELOW.
If your pool included openings or you are going to purchase a filter pump system, position the Suction & Return fitting locations so they are 10 to 21 feet
from the electrical outlet you plan to use for the pool pump.
If your pool came with Fittings - Install both the Suction and Return fittings to the pool wall before filling the pool.
SUCTION FITTING RETURN FITTING
NOTE: For Sand Filter Pump / Cartridge Filter Pump CP2000-C, please follow the Sand Filter Pump / Cartridge Filter Pump CP2000-C
owner’s manual to set up the fitting. Please check the water pump’s instruction manual for more instructions.
SFX SKIMMERPLUS FILTER PUMP
Inside Pool Wall
Outside Pool Wall
Inside Pool Wall
Fitting GasketService Plug
Return Fitting
Suction Fitting
Washer
RF Nut
90° Elbow
Locking Ring
Return Fitting
Diverter
Outside Pool Wall
Inside Pool Wall
SUCTION FITTING
Fitting Lock
Nut
Suction Fitting
Washer
Fitting GasketSuction FittingWater Cap
RETURN FITTING
Inside Pool Wall
Outside Pool Wall
RX CARTRIDGE FILTER PUMP
Return Fitting
Service Plug
Fitting Gasket
Fitting Lock
Nut
Return Fitting
Diverter
To Next Page
