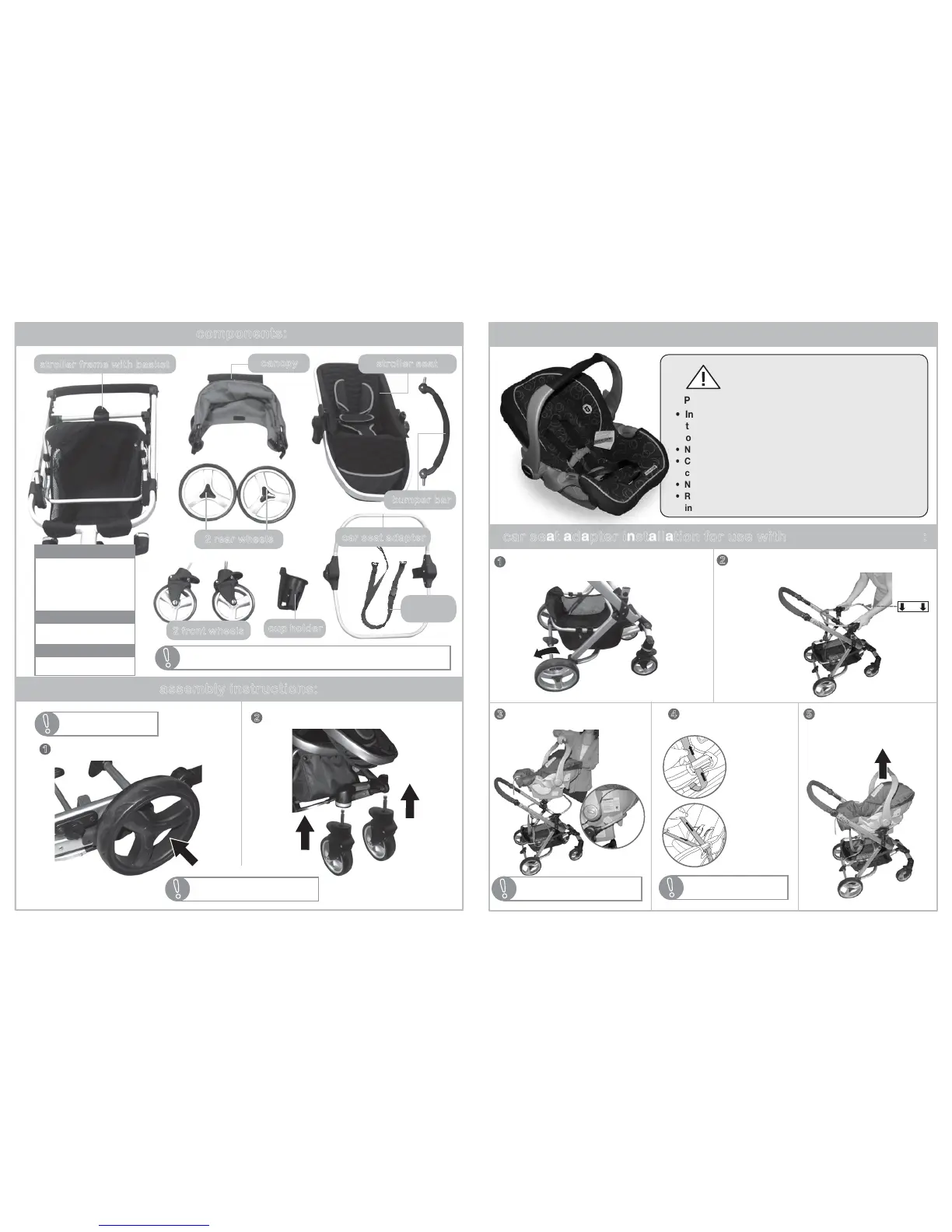

Summer 21290 - Graco Snugride Adapter Installation

components:
assembly instructions:
2
car seat adapter installation for use with Graco® Snugride®:
IMPORTANT! Before assembly, inspect this product for damaged hardware,
loose joints or missing parts. Never use if any parts are missing or broken.
!
stroller seat
2 rear wheels
stroller frame with basket
canopy
bumper bar
press down on brake
pedal to engage brake
• Infant car seat adapter must be securely locked
to stroller before infant car seat is placed
on stroller.
• NEVER install car seat carrier without car seat adapter
• CHECK to confirm that car seat adapter and car seat
carrier are securely locked to the stroller
• NEVER lift stroller by infant carrier handle
• Read all warnings on front page of this
instruction booklet and on product
WARNING:
PREVENT SERIOUS INJURY OR DEATH FROM FALLS
click!
arrow faces
forward
align car seat adapter with arrow
pointing forward and push down onto
frame
align car seat and
set it into adapter
stroller common parts:
21290 stroller:
21300 stroller:
front wheels 28710-05
rear wheels 28710-06
cup holder 28710-08
bumper bar 28710-07
car seat adaptor 28710-04
adapter strap 21290-03
storage basket 28710-09
canopy 21290-01
storage basket 21300-02
canopy 21300-01
click!
click!
click!
2
1
push on rear wheels, both sides
push on front wheels
IMPORTANT! Tug on each wheel to
ensure they are securely attached
!
IMPORTANT! REAR FACING ONLY!
Do NOT install forward facing.
!
Remove and dispose of
packing material properly
!
1
2
3
15
to release, undo strap
and lift up by handle
5
attaching car
strap adapter
4
car seat adapter
2 front wheels
cup holder
adapter
strap
IMPORTANT! Pull up on
car seat to confirm that
it is secured properly
!
Graco® Snugride® - Adapter Strap Required (ref. p.11)
feed
through both
belt paths!
snap buckle
and pull
tight!
FRONT
