Summers ULTRA - 8.97 All 9303 C and 9303 S Series Pumps

SECTION 8 - PARTS
8.97
SECTION 8 - PARTS
Source: Form # L-0325C (10/05)

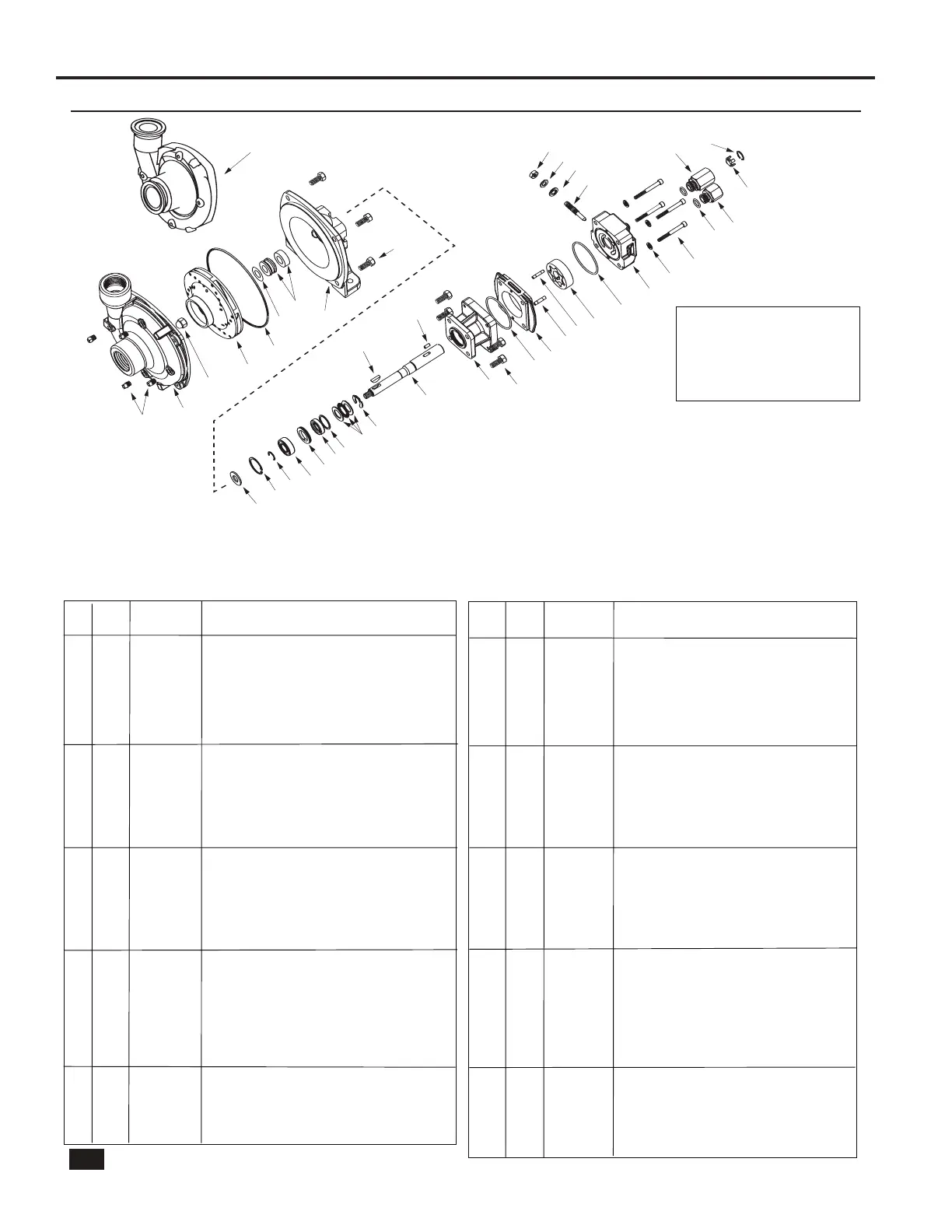

All 9303C and 9303S Series Pumps
16
1 4 2406-0007 Drain/Vent Plug (9303C)
1 4 2406-0016 Drain/Vent Plug (9303S)
2 1 0150-9000C Pump Casing (Model 9303C)
2 1 0150-9000S Pump Casing (Model 9303S)
2A 1 0153-9000C Pump Casing (Universal Flange)
3 1 2253-0002 Impeller Nut (9303C)
3 1 2253-0006 Impeller Nut (Model 9303S)
4 1 0401-9100P Impeller (Nyglass, std.)(9303C)
4 1 0402-9100P Impeller (Optional Polypropylene) (Std 9303S)
5 1 1720-0083 O-ring
6 1 1700-0100 Rubber Gasket (9303C)
7 1 2120-0009 Mechanical Seal (Viton) (Std 9303C)
7 1 3430-0589 Mechanical Seal (Silicon Carbide) (Std 9303S)
8 1 0750-9300C Mounting Flange
8 1 0756-9300S Mounting Flange (Model 9303S)
9 4 2210-0020 Hex Head Cap Screw (9303C)
9 4 2210-0125 Hex Head Cap Screw (Model 9303S)
10 1 1410-0056 Slinger Ring
11 1 1820-0013 Retaining Ring
12 1 1810-0014 Snap Ring
13 1 2000-0010 Ball Bearing
14 1 1410-0073 Spacer
15 1 2104-0005 Shaft Seal
16 1 1410-0074 Seal Spacer
17 1 2029-0014 Thrust Bearing Assembly—Consists of:
(1) Thrust Bearing & (2) Thrust Brg. Races
18 1 1810-0026 Snap Ring
19 1 0509-2500 Shaft (HM2C & HM4C Models) 6-3/4" Long
19 1 0511-2501 Shaft (HM1C & HM5C Models) 7" Long
19 1 0510-2500 Shaft (HM3C Models) 7 -1/2" Long
20 1 0151-2500C Motor Body (Includes Main Bearing)
21 4 2210-0005 Hex Head Cap Screw
22 2 1720-0110 O-ring
23 1 0701-2500C1 Gerotor Housing (HM2C Models) 1/4" Wide
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
22
27
28
29
30
31
32
33
34
35
36
37
38
39
40
A
23 1 0700-2500C1 Gerotor Housing (HM1C Models) 1/2" Wide
23 1 0703-2500C1 Gerotor Housing (HM4C Models) 5/16" Wide
23 1 0702-2500C1 Gerotor Housing (HM3C Models) 1" Wide
23 1 0704-2500C1 Gerotor Housing (HM5C Models) 5/8" Wide
24 1 1600-0045 Dowel Pin (HM2C & HM4C Models)
24 1 1600-0044 Dowel Pin (HM1C & HM5CModels)
24 1 1600-0052 Dowel Pin (HM3C Models)
25 1 1600-0042 Dowel Pin (HM2C & HM4C Models)
25 1 1600-0037 Dowel Pin (HM1C & HM5C Models)
25 1 1600-0068 Dowel Pin (HM3C Models)
26 1 3900-0022 Gerotor (HM1C Models)
26 1 3900-0023 Gerotor (HM2C Models)
26 1 3900-0024 Gerotor (HM3C Models)
26 1 3900-0025 Gerotor (HM4C Models)
26 1 3900-0048 Gerotor (HM5C Models)
27 1 0251-2500C2 Motor End Plate (Includes Main Bearing)
28 4 2270-0039 Washer
29 4 2220-0045 Cap Screw (HM2C & HM4C Models)
29 4 2220-0021 Cap Screw (HM1C)
29 4 2220-0044 Cap Screw (HM3C Models)
29 4 2220-0032 Cap Screw (HM5C)
30 2 1720-0108 O-ring
31 1 3360-0021 Pressure Port Adapter
32 1 3260-0068 Poppet
33 1 1820-0038 Retaining Ring
34 1 3320-0049 Tank Port Adapter
35 1 3220-0029 Bypass Adjusting Screw
36 1 1700-0047 Gasket
37 1 2270-0027 Washer
38 1 2250-0038 Lock Nut
39 1 1610-0032 Roll Pin (HM2C & HM4C Models)
39 1 1610-0031 Roll Pin (HM1C & HM5C Models)
39 1 1610-0055 Roll Pin (HM3C)
40 1 1610-0012 Woodruff Key (9303C)
40 1 04432 S.S. Woodruff Key (Model 9303S)
Ref. Qty. Part
No. Req'd. No. Description
Ref. Qty. Part
No. Req'd. No. Description
Parts Kit No. 3430-0178
Contains: One each ball bearing
(Ref. 13), motor shaft seal (Ref. 15),
thread seal gasket (Ref. 36), and
washer (Ref. 37); two each motor
housing o-rings (Ref. 22), and port
adapter o-rings (Ref. 30).
Hydraulic Motor Part Nos.
2500-0009C (HM1C Models)
2500-0010C (HM2C Models)
2500-0011C (HM3C Models)
2500-0012C (HM4C Models)
2500-0018C (HM5C Models)
Adapter Kit No. 3430-0187
(HM2 and HM4 Models Only):
Contains one each:
No. 3360-0021 Pressure Port Adapter
No. 3373-0020 (Size #1)
No. 3373-0021 (Size #2)
No. 3373-0022 (Size #3).
No. 1720-0108 Adapter O-ring and
No. 1720-0105 Orifice O-ring (Qty 3).
NOTE: When ordering parts, give
QUANTITY, PART NUMBER,
DESCRIPTION, and COMPLETE
MODEL NUMBER. Reference
numbers are used ONLY to identify
parts in the drawing and are NOT
to be used as order numbers.
Repair Parts Kit No. 3430-0332
Contains: One o-ring (Ref. 5),
one rubber gasket (Ref. 6),
and one mechanical seal (Ref. 7).
Silicon Seal Kit No. 3430-0589
Contains one each:
1720-0083 o-ring (Ref. 5)
and one mechanical seal (silicon
carbide) (Ref.7).
