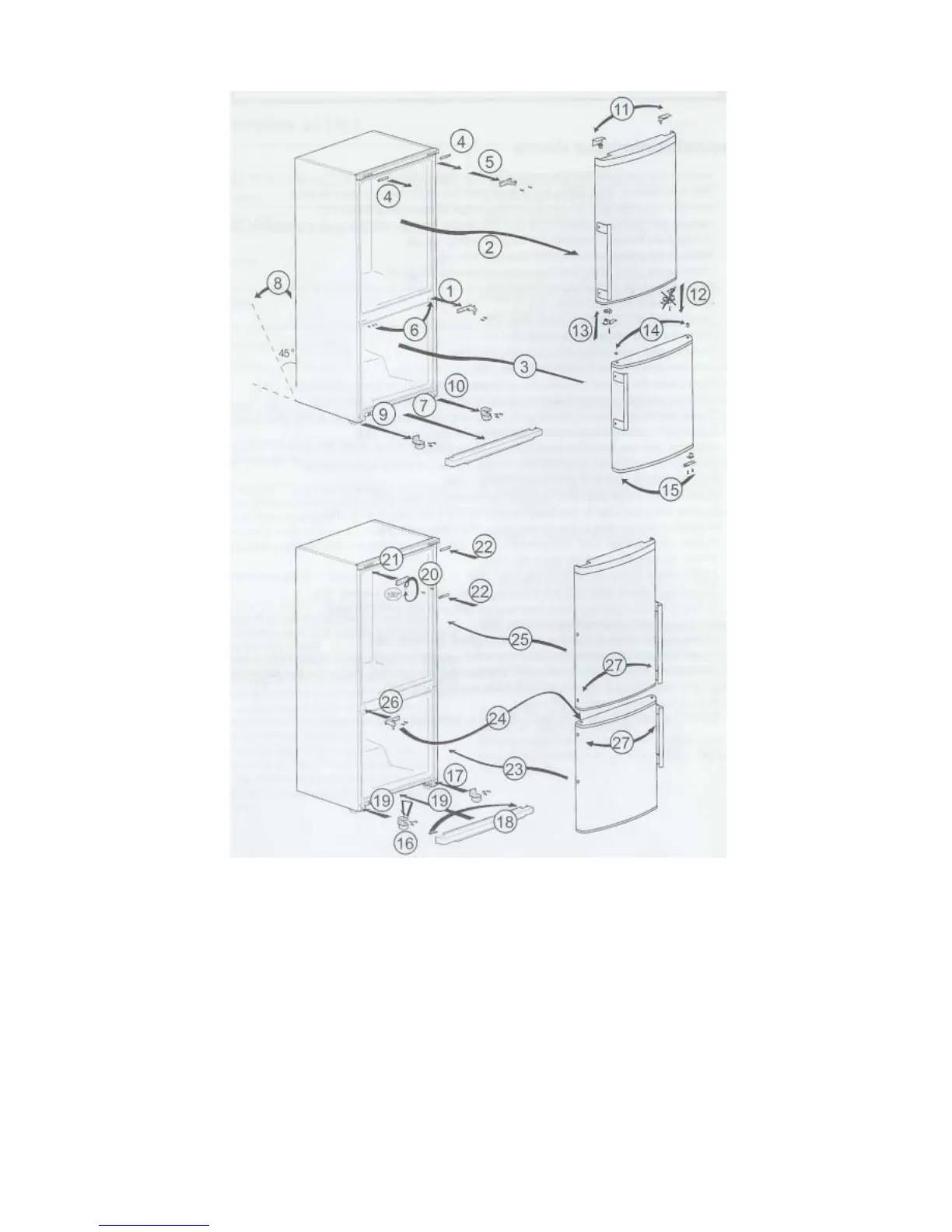

13. Reposition the plastic covers on top of the fresh food door on the opposite
side. (11)
14. Unscrew and remove the middle hinge bushing from the fresh food door. (12)
15.
Screw in and fix the new middle hinge bushing (supplied) to the other side.
(13)
16. Reposition the hinge bushing and the tap on the freezer door. (14)
17. Unscrew and reposition the bottom hinge bushing. (15)
18. Unscrew bolt of the pin of the bottom hinge. Fit the pin to the other hole on
the hinge and tighten the bolt on the new position. (16)
19. Fit the bottom hinge and other feet, and tighten the screws. (17)
7
