Sun Fun Kits include 6mm bolts that are 8mm in length; these will fit the drilled EVE 280N cells
properly and will ensure a proper fit. Our BMS also includes correct sized terminals that fit 6mm
threads/blots properly.
You will need to ensure a tight fit, take care not to strip your battery terminals, if you are using a
torque wrench you will want to tighten down to 6-8 NM. WARNING LOOSE terminals will
cause the cells & batteries to fail.

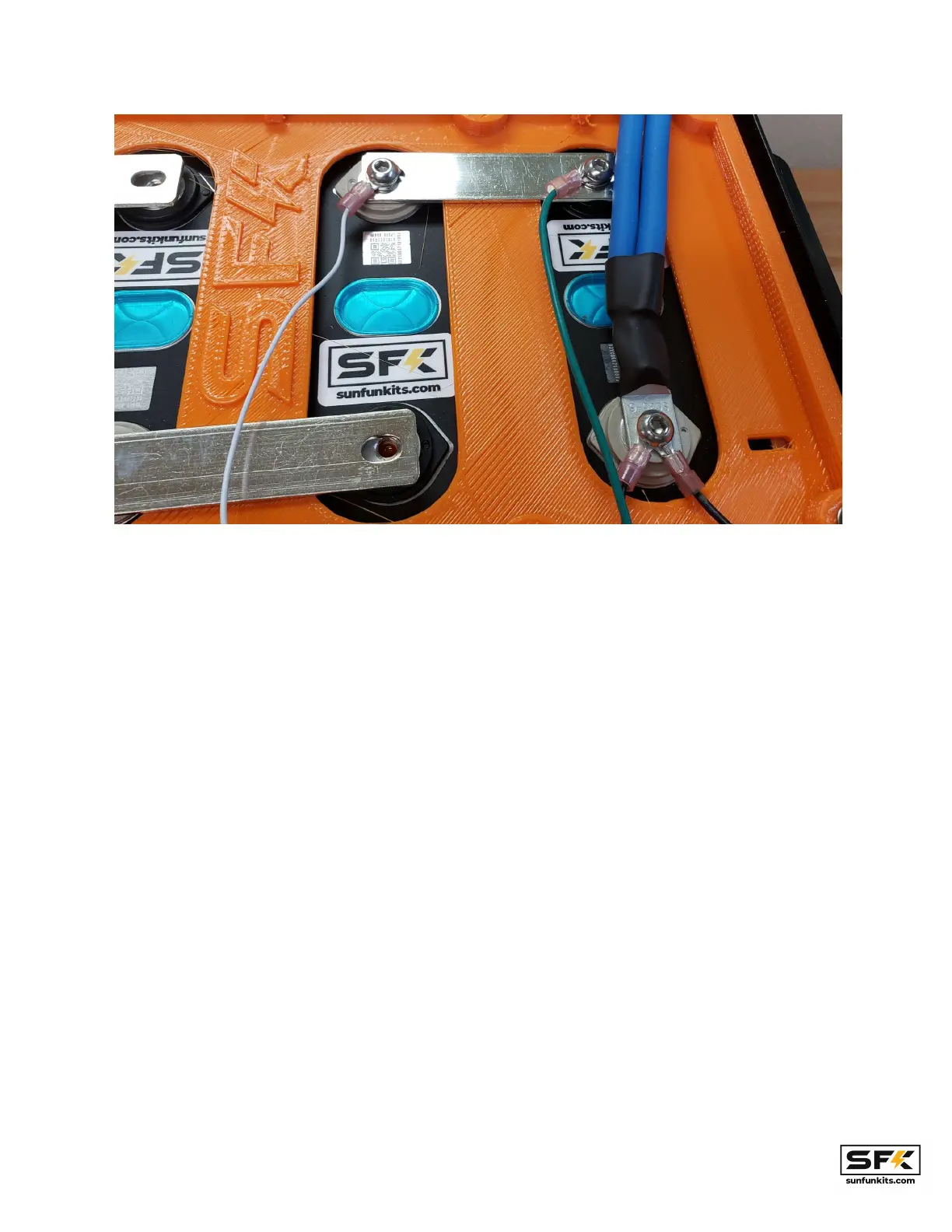

The writing schematic should be as follows:
black wire = cell 1 negative
1st white wire = cell 1 positive
2nd white wire = cell 2 positive
3rd white wire = cell 3 positive
red wire = cell 4 positive
