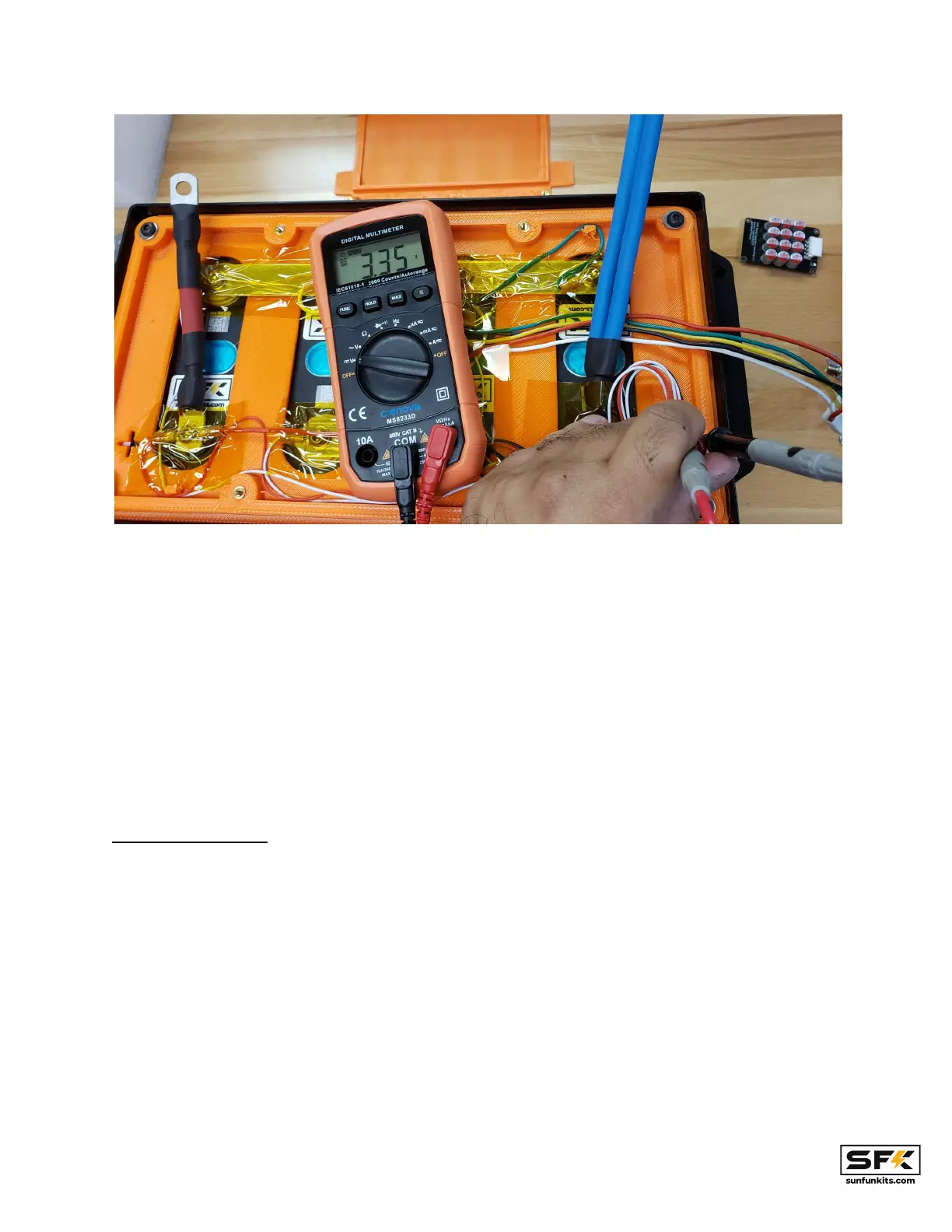

Your voltages should read:
3.6, 7.2, 10.8,14.4 (if the battery cells were full during the install).
If you are using a supplementary balance, you should install this as well, you will need to share
the final negative and positive terminals of the battery for multiple devices. Make sure the
wired main terminals are the ones that touch the cell terminal and only stack the other rings
on top.
Once you have verified the wiring has been installed correctly, you can now begin by attaching
the top plate & your BMS.
V1 & V2 difference:
Both the V1 and V2 kit are essentially the same with the major difference being that the v2 kit
can accommodate taller cells and cells with welded studs by incorporating a spacer and internal
riser design.
V1 kits will allow you to simply install your top plate directly on top of the bottom plate as shown:
Page: 9 V1 / V2 Manual - Revision 1.01
