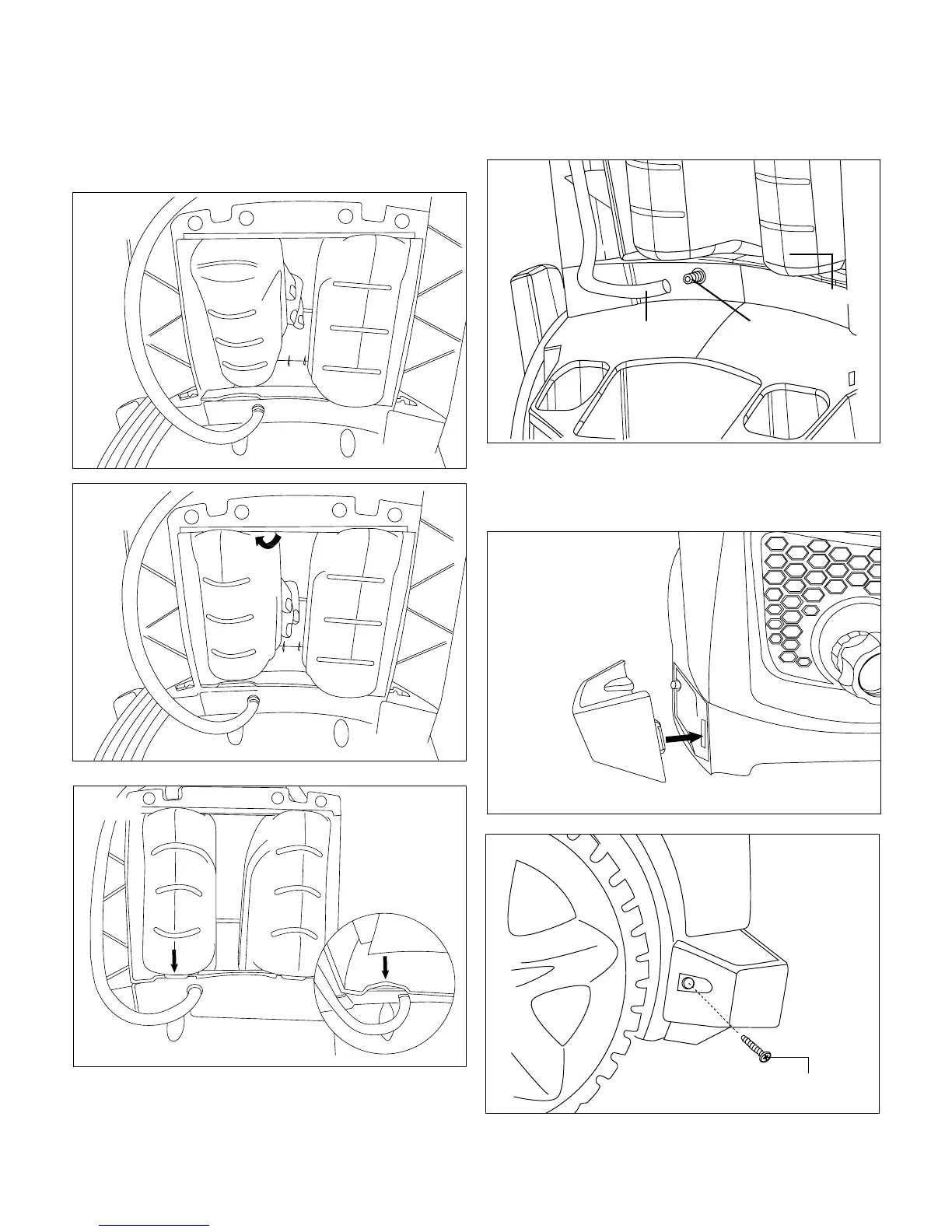

5. Insert the detergent bottles (top end rst) under the ridge
of their designated storage compartment (Figs. 4 & 5).
Then snap the bottom of the bottles into the V-shaped
grooves to secure them in place (Fig. 6).
6. Connect the PVC detergent tube to the detergent
connection (Fig. 7).
7. To assemble the spray wand protector, rst snap the tab
into the slot located at the bottom left side of the unit, and
then secure it in place with one small screw. (Figs. 8 & 9).
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Detergent
connection
Detergent tank
Detergent tube
Fig. 8
Fig. 9
small screw
7
