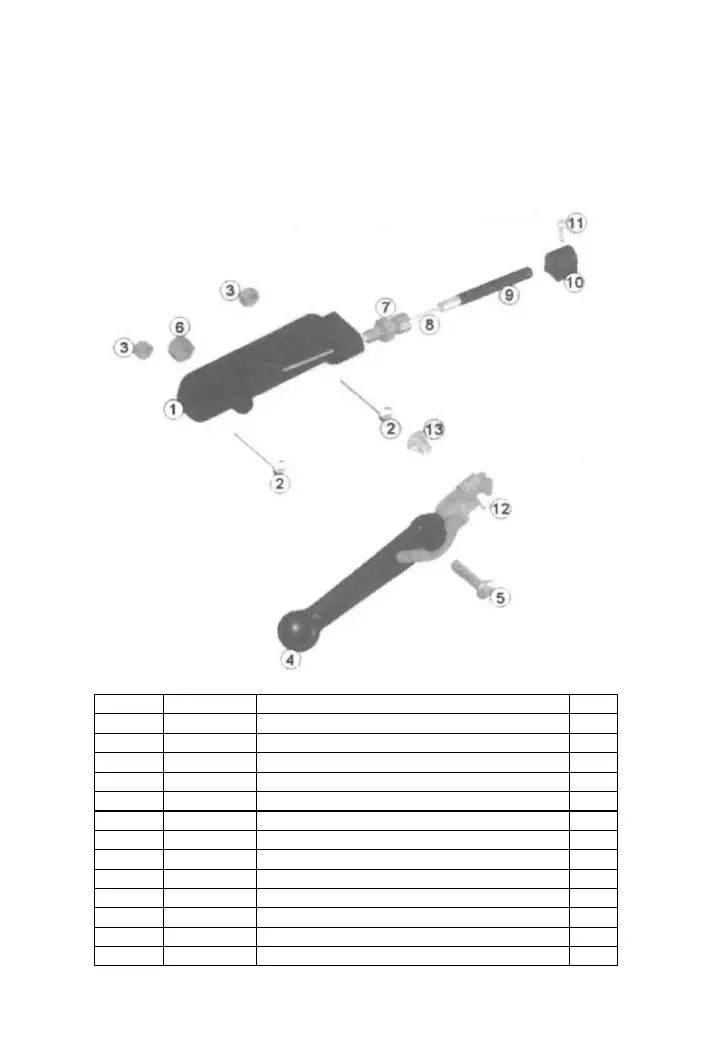

Adjusting the Brake:
The brake cable lengthens over time and as a result, the
brake pin hits the disc brake. To tighten the brake cable, turn
the brake cable adjustment stud clockwise (item 7) until the
brake pin has enough clearance.
Item #
Part #
Description
Qty
1
MC1-338
Brake Lever Mount
1
2
MC1-268
M4-0.7x35mm Phillips Pan Head Screw
2
3
SV1-225
M4-0.7 Nylock Nut
2
4
MC1-902
Brake Level with Linkage
1
5
MC1-270
M6-1.0x22mm Phillips Pan Head Screw
1
6
SV1-202
M6-1.0 Nylock Nut
1
7
MC1-903
Brake Cable Adjustment Stud and Nut
1
8
005-419
Brake Cable Kit and Hardware
1
9
Refer to 8
Brake Cable Sheathing
1
10
SV1-306
Brake Cable Sheathing Clip
6
11
MC1-273
3x10mm Phillips Pan Head ST Screw
6
12
MC1-274
M4x5mm Phillips Pan Head Screw
1
13
MC1-275
Brake Cable Stud
1
