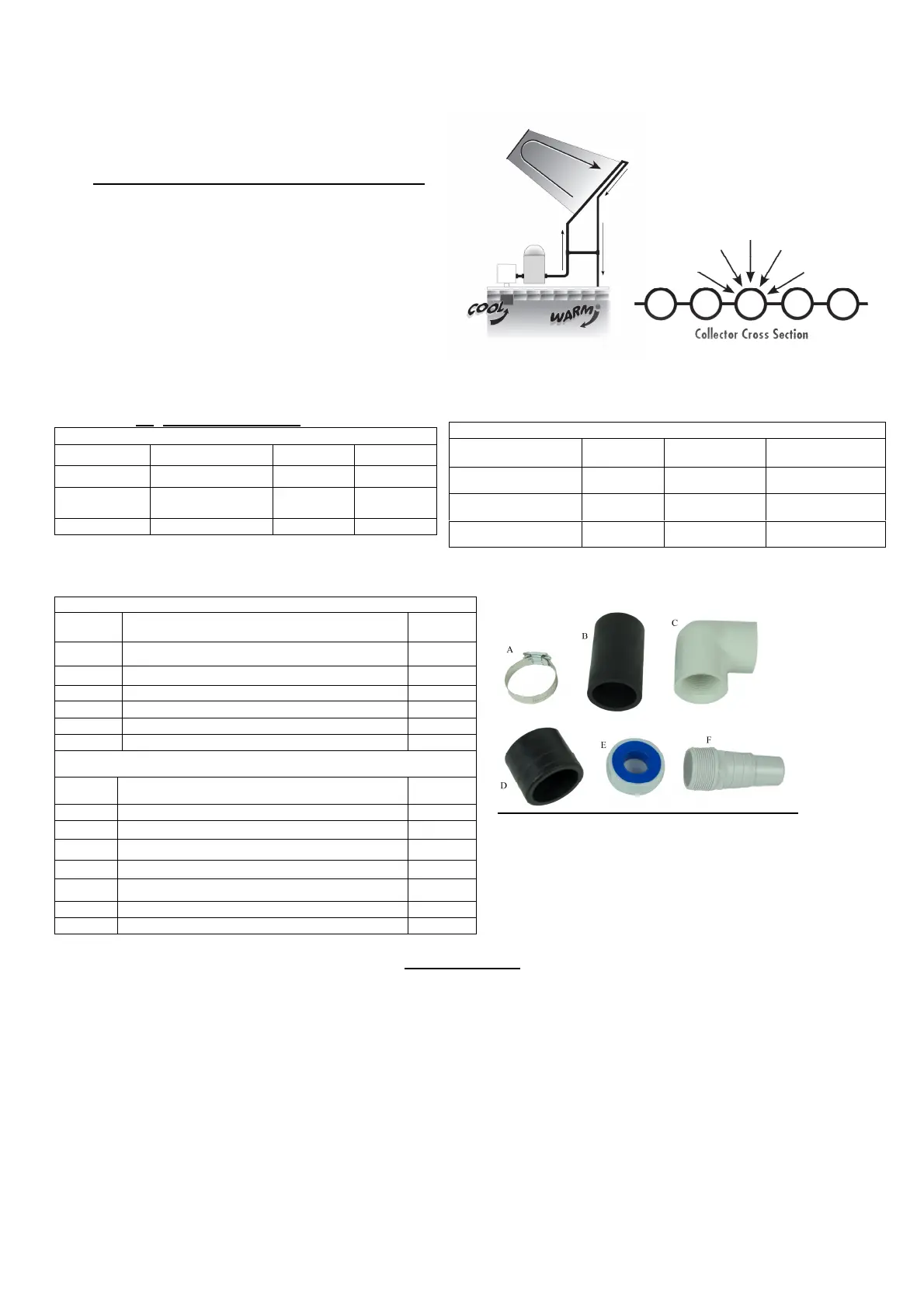

HOW SUN2SOLAR™ HEATER WORKS
*The pool pump circulates the water through
the collectors
* The collectors absorb the heat from the sun
* Warm water is returned to the pool
Sun2Solar™ heater collectors have a web
construction designed for maximum heat absorption
regardless of the position of the sun.
SIZING GUIDES
ABOVEGROUND POOLS
Round Oval 2 x 20 4 x 20
Up to 24’ Up to 15’ x 30’ 1 Box 1 Box
Up to 33’ Up to 21’x 41’ 2Boxes 1 Box
The 4x20 can be used but only a 2x20 is required*
LIST OF COMPONETS
2 X 20 - 805423
Item DESCRIPTION SKU# Qty
A 1.5” Stainless Steel Band Clamp - 214201 2
A 1.25” Stainless Steel Band Clamp- 214197 2
C PVC Elbow Connector - 214083 2
D Rubber End Cap- 108016 2
E Teflon Tape- 274119 1
F Backwash Fitting- 274062 2
4 x 20 – 805 424
Item DESCRIPTION Qty
A 1.5 Stainless Steel Band Clamp- 214201 4
A 1.25” Stainless Steel Band Clamp- 214197 2
B 3.75” Rubber Hose Connector- 108015 1
C PVC Elbow Connector - 214083 2
D Rubber End Cap- 108016 4
E Teflon Tape- 274119 1
F Backwash Fitting- 274062 2
INSTALLATION
READ THE ENTIRE MANUAL PRIOR TO THE INSTALLATION AND USE OF THE SUN2SOLAR™ SYSTEM
TOOLS REQUIRED GUIDELINES FOR POSITIONING
Flathead screwdriver or 5/6” (8mm) nut driver * The collector(s) needs at least 6 hours of full sunlight daily.
* Plug for return fitting. * For ground installation, ensure the area is free of sharp objects
* For roof or rack mounting prior installation.
* Power Drill * A 1hp pump will handle installations up to 30ft from the pool
* 1/8” (3mm) drill bit equipment and a height of 1 story.
* #2 Phillips head drill bit. * The collector(s) can be installed on the ground, a roof, a rack or a fence.
* Silicone sealant (GEII or equivalent) Additional plumbing and hardware kits may be required(not included)
INGROUND POOLS- SM050004
Dimensions 2 x 20 4 x 20 Kits
Up to 15’ x 30’ 4 Boxes 2 Boxes 1 SM050004
Up to 16’ x 36’ 6 Boxes 3 Boxes 1 SM050004
Up to 20’ x 40’ 8 Boxes 4 Boxes 1 SM050004
