Sunbeam EM0450 - Page 10

8
Care and Cleaning (continued)
3.Pressandholddownthe‘UNLOCK’button
attherearofthemotorbaseandwith
theotherhandturnthegrindadjustment
collaranti-clockwiseuntilitstopsandthe
graphiclineonthecollarisalignedwith
thelineonthemotorbase,seefigure7.
4.Liftoutthetopburrfromthegrind
adjustmentcollarusingthehandle,see
figure8.Cleanusingtheburr-cleaning
brush.
5.Liftthegrindadjustmentcollarawayfrom
themotorbaseandcleanwiththebrush,
seefigure9.
6.Cleanthebottomburrusingtheburr-
cleaningbrush,seefigure10.
7.Oncebothburrsarecleaned,returnthe
grindadjustmentcollartoitspositionin
themotorbase.
8.Withthegrindadjustmentcollarinhand
alignthegraphiclineonthecollarwiththe
lineontherearofthemotorbase,press
down.

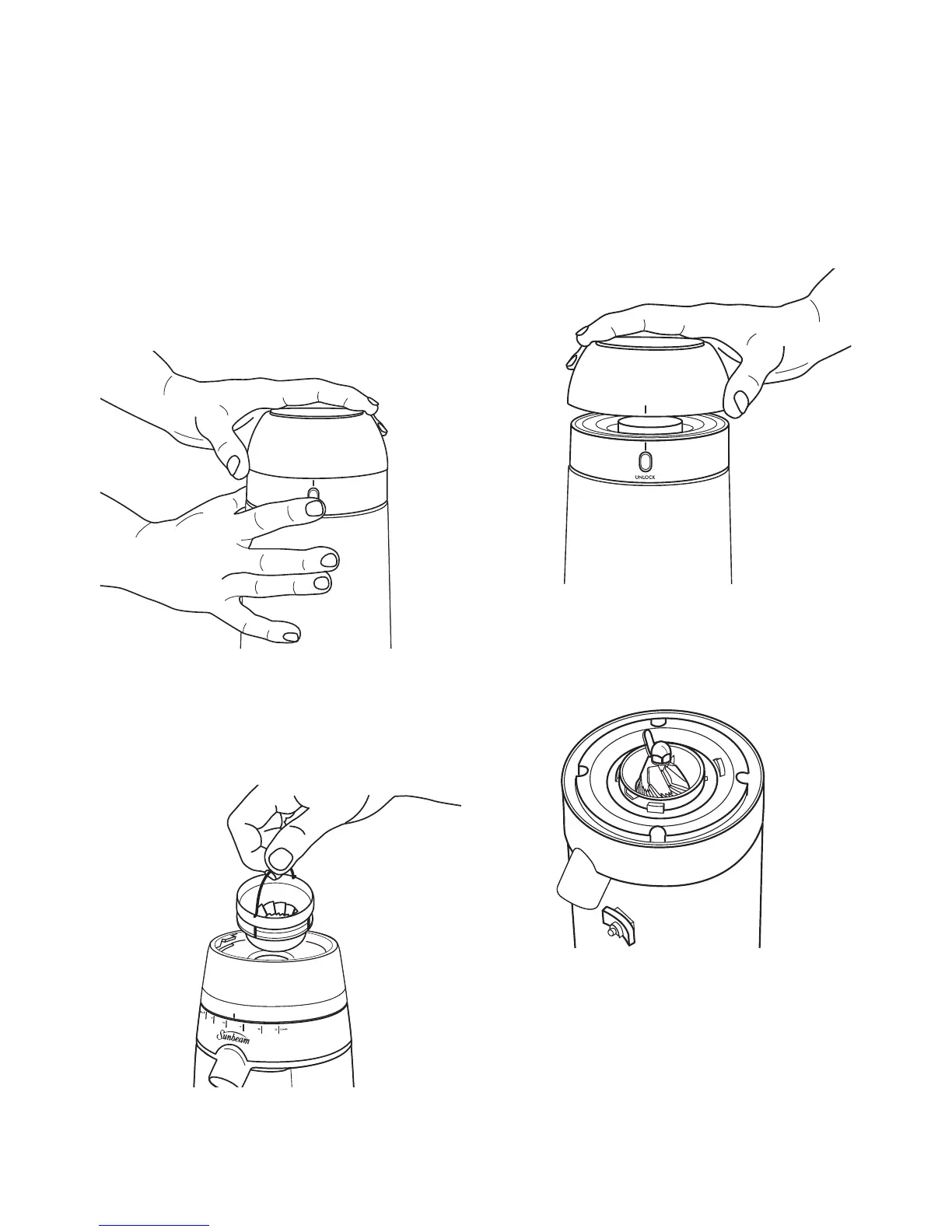

Figure 7
Figure 10
Figure 8
Figure 9
