SUNBEAMsystem MOONRAY Series - User Interface and Configuration; User Interface Overview

6 WWW.SUNBEAMSYSTEM.COM
3. User Interface

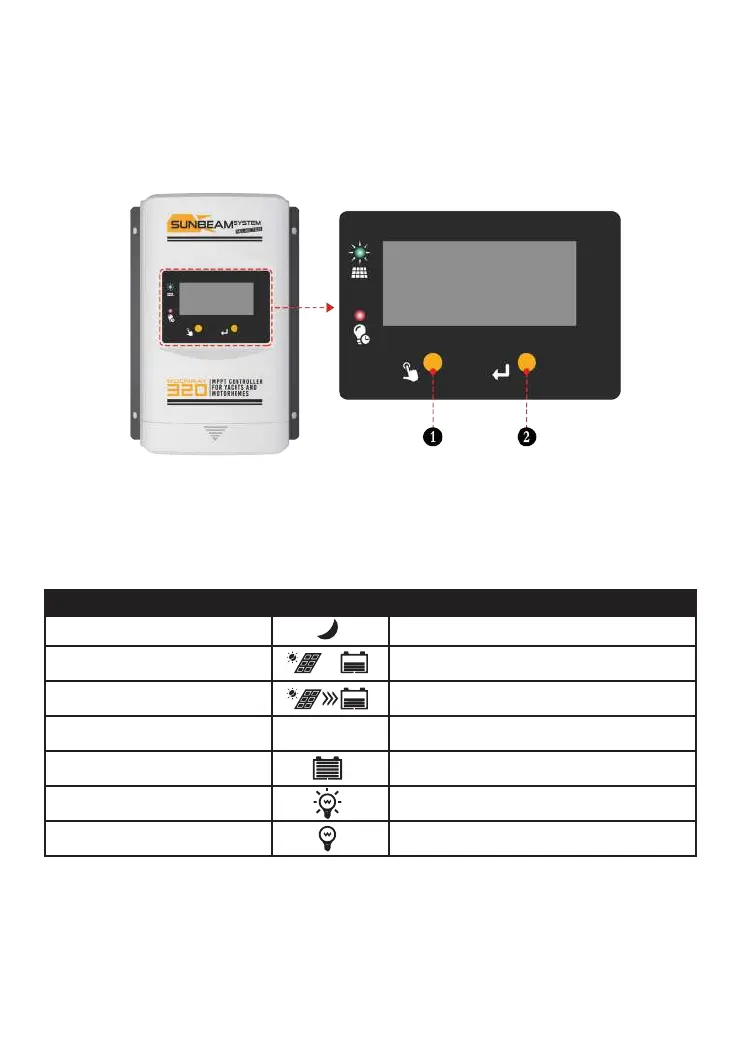

3.1 User interface
B SELECT Button C ENTER Button
LED INDICATION LCD ICON MEANING
BLACK SUN
GREEN SOLID SUN
GREEN FLASHING SUN (1/S)
GREEN FAST FLASH SUN (4/S)
-
RED LED (BULB ICON)
LED OFF (BULB ICON)
-
NIGHT
DAY BUT NO CHARGE (EX. CLOUDY)
CHARGING
PV – OVERVOLTAGE
APPROX. BATTERY STATE OF CHARGE
LOAD/TIMER PORT ON
LOAD/TIMER PORT OFF
