Suncast BMS6225 - Assembly;Walls; Wall Assembly Steps

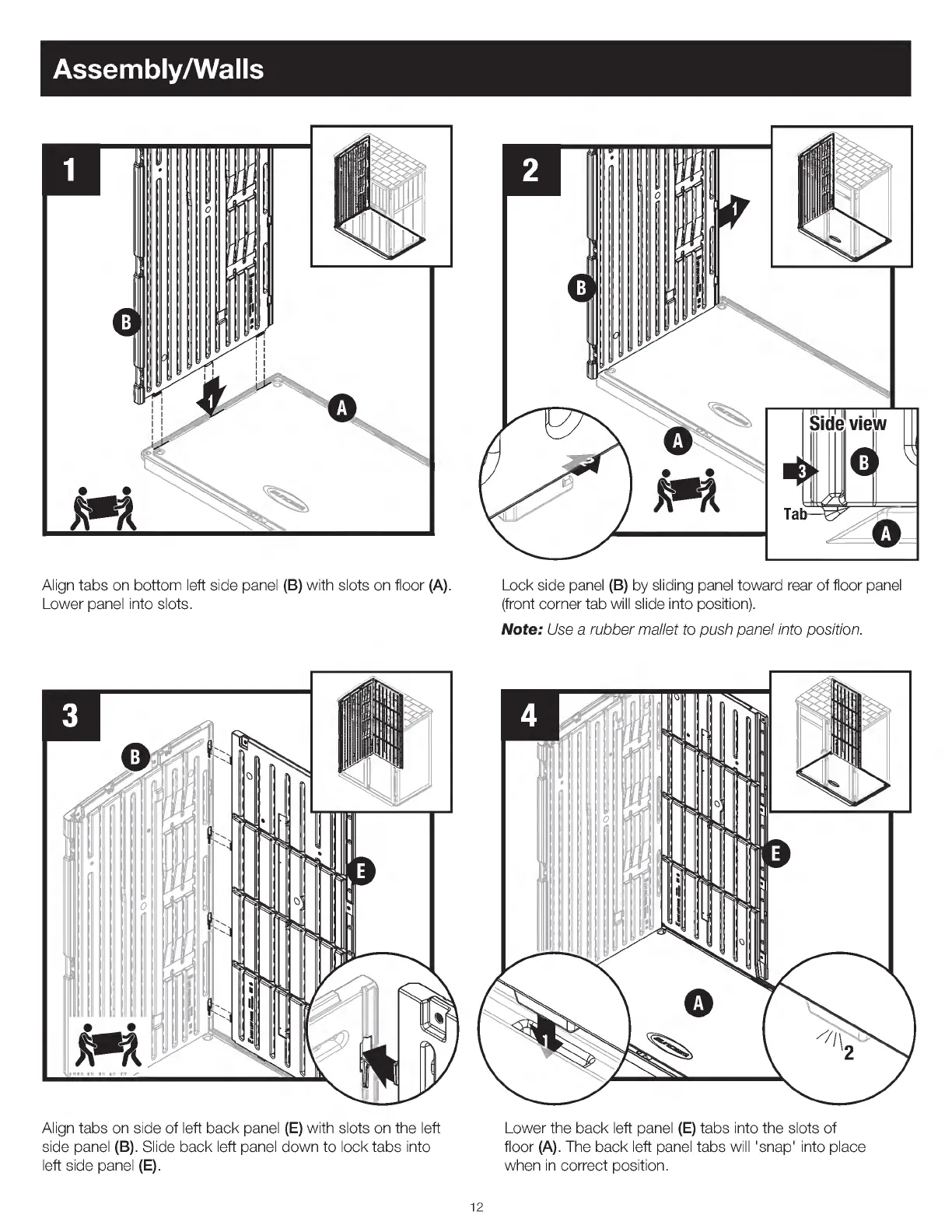

Assembly/Walls
o
o
Align tabs on bottom left side panel ( B) with slots on floor ( A).
Lower panel into slots.
Align tabs on side of left back panel ( E) with slots on the left
side panel ( B). Slide back left panel down to lock tabs into
left side panel ( E).
Lower the back left panel ( E) tabs into the slots of
floor ( A). The back left panel tabs will ' snap' into place
when in correct position.
Lock side panel ( B) by sliding panel toward rear of floor panel
(front corner tab will slide into position).
Note: Use a rubber mallet to push panel into position.
12
