Suncast BMS6225 - Optional Interior Wood Shelf; Shelf Installation

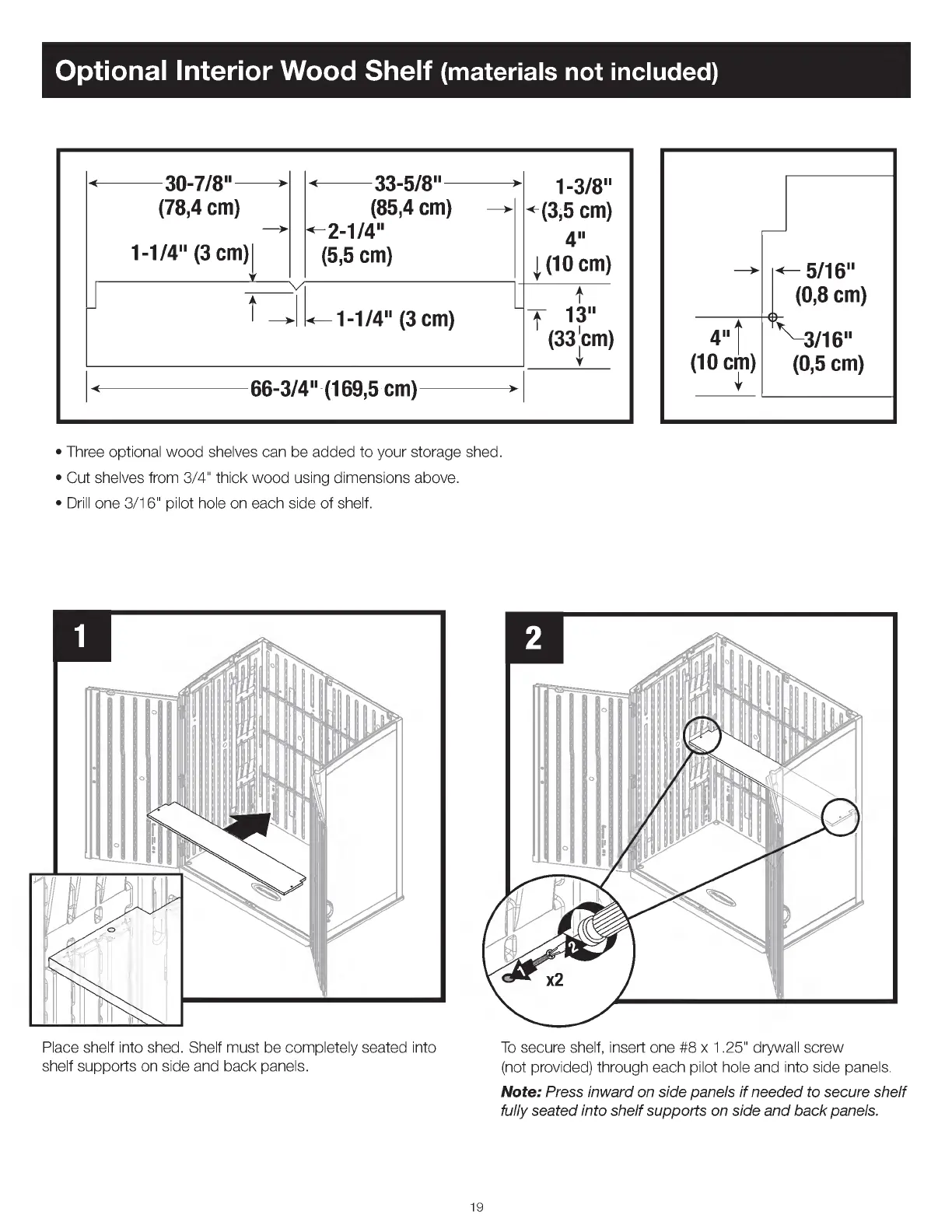

Optional Interior Wood Shelf ( materials not included)
30-7/8" ->
(78,4 CM)
< 33-5/8"
(85,4 CM) ->
' 1 - 3/8"
- (35 CM)
1 - 1 / 4" ( 3 CM)1
< 2-1/4"
(5,5 CM)
4"
,1, ( 10 CM)
t 1 - 1 / 4" ( 3 CM)
t
Tk 13"
-> <
(33,CM)
4'
66-314"(169,5
CM) >
• Three optional wood shelves can be added to your storage shed.
• Cut shelves from 3/4" thick wood using dimensions above.
• Drill one 3/16" pilot hole on each side of shelf.
Place shelf into shed. Shelf must be completely seated into
shelf supports on side and back panels.
<- 5/16"
(0,8 CM)
\- 3/1 6 II
(0,5 CM)
To secure shelf, insert one # 8 x 1.25" drywall screw
(not provided) through each pilot hole and into side panels.
Note: Press inward on side panels if needed to secure shelf
fully seated into shelf supports on side and back panels.
19
