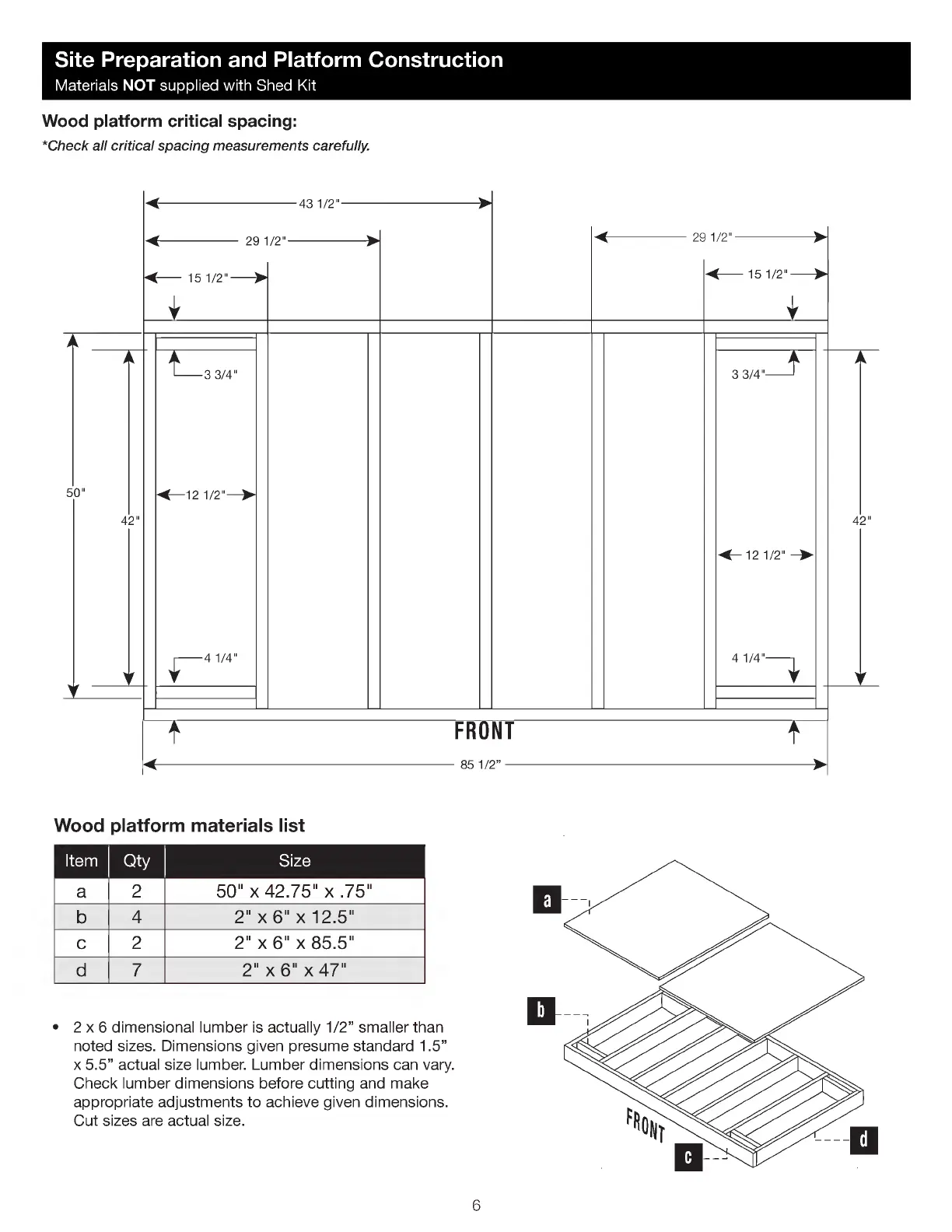

Site Preparation and Platform Construction
Materials NOT supplied with Shed Kit
Wood platform critical spacing:
*Check all critical spacing measurements carefully.
43 1/2"
29 1/2"
.411(— 15 1/2" —›
29 1 / 2"
-41(— 15 1/2" —›
50"
42'
3 3/4"
3 3/4"
4 1/4"
4— 12 1/2" —> fr
4 1/4"
42"
FRONT
85 1/2"
Wood platform materials list
Item
a
Qty
2
b
4
C
2
d
7
Size
50" x 42.75" x . 75"
2" x 6" x 12.5"
2" x 6" x 85.5"
2" x 6" x 47"
• 2 x 6 dimensional lumber is actually 1/2" smaller than
noted sizes. Dimensions given presume standard 1.5"
x 5.5" actual size lumber. Lumber dimensions can vary.
Check lumber dimensions before cutting and make
appropriate adjustments to achieve given dimensions.
Cut sizes are actual size.
