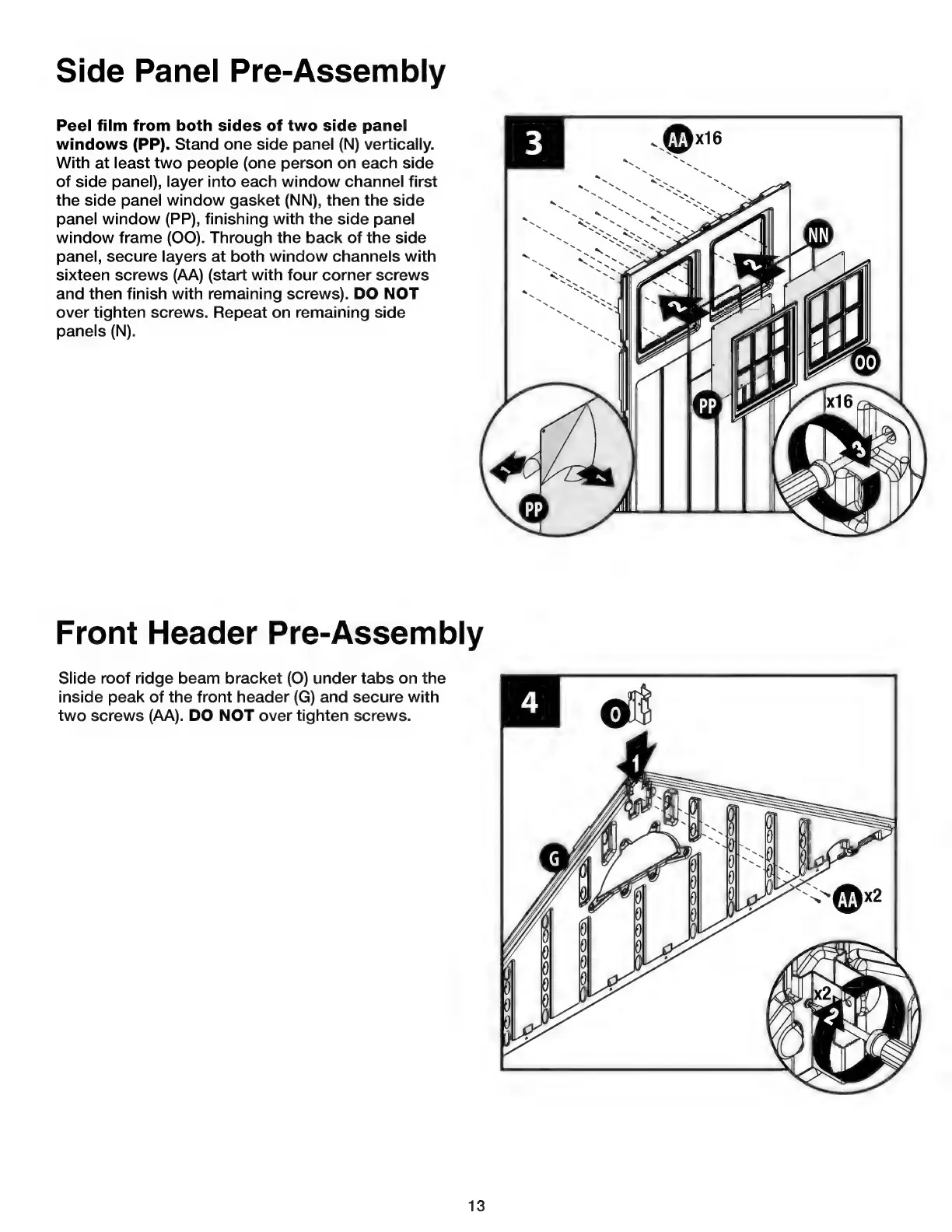

Side Panel Pre-Assembly
Peel film from both sides of two side panel
windows (PP). Stand one side panel (N) vertically.
With at least two people (one person on each side
of side panel), layer into each window channel first
the side panel window gasket (NN), then the side
panel window (PP), finishing with the side panel
window frame (OO). Through the back of the side
panel, secure layers at both window channels with
sixteen screws (AA) (start with four corner screws
and then finish with remaining screws). DO NOT
over tighten screws. Repeat on remaining side
panels (N).
Front Header Pre-Assembly
Slide roof ridge beam bracket (O) under tabs on the
inside peak of the front header (G) and secure with
two screws (AA). DO NOT over tighten screws.
13
