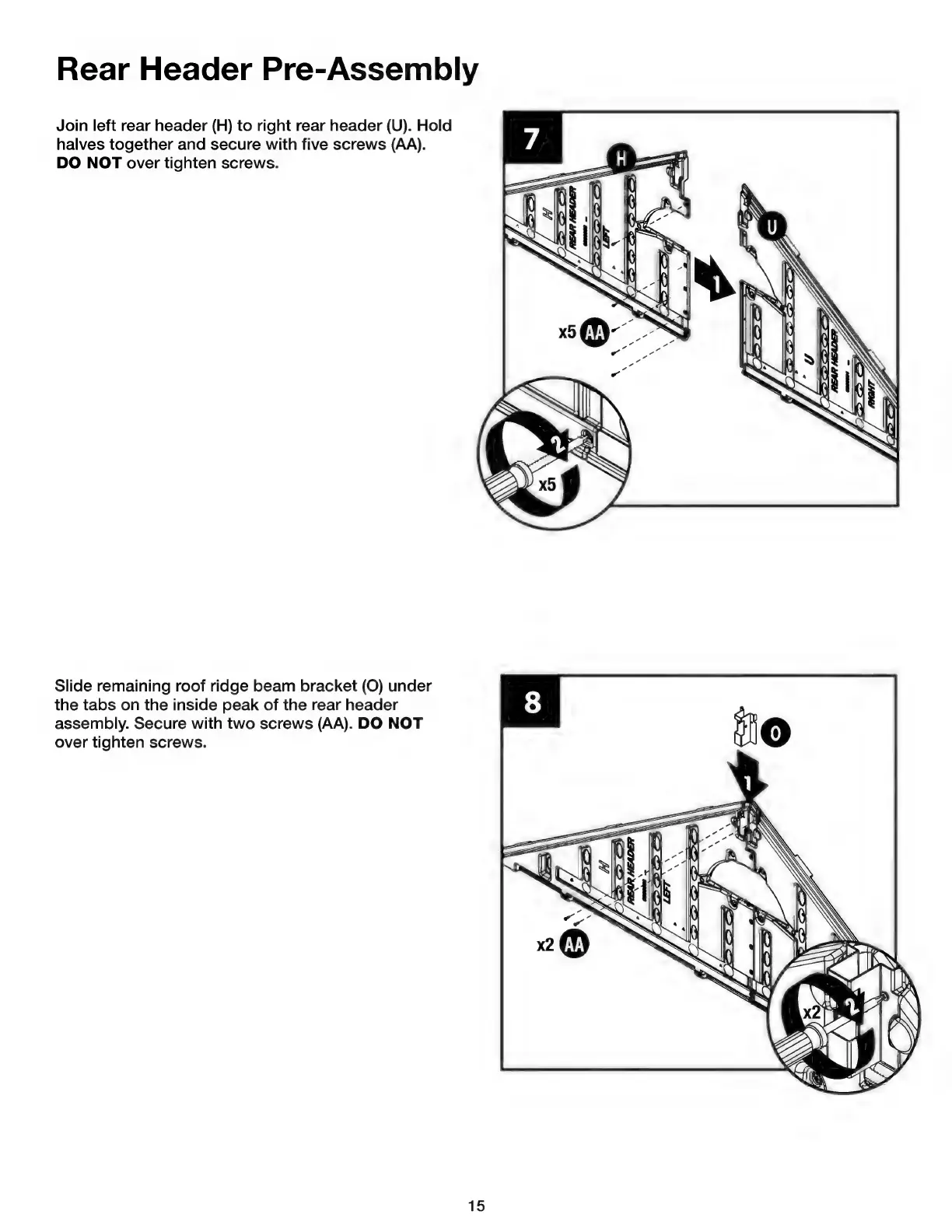

Rear
Header
Pre-Assembly
Join
left
rear
header
(H)
to
right
rear
header
(U).
Hold
halves
together
and
secure
with
five
screws
(AA).
DO
NOT
over
tighten
screws.
Slide
remaining
roof
ridge
beam
bracket
(O)
under
the
tabs
on
the
inside
peak
of
the
rear
header
assembly.
Secure
with
two
screws
(AA).
DO
NOT
over
tighten
screws.
15
