Suncast BMS7775 - Page 32

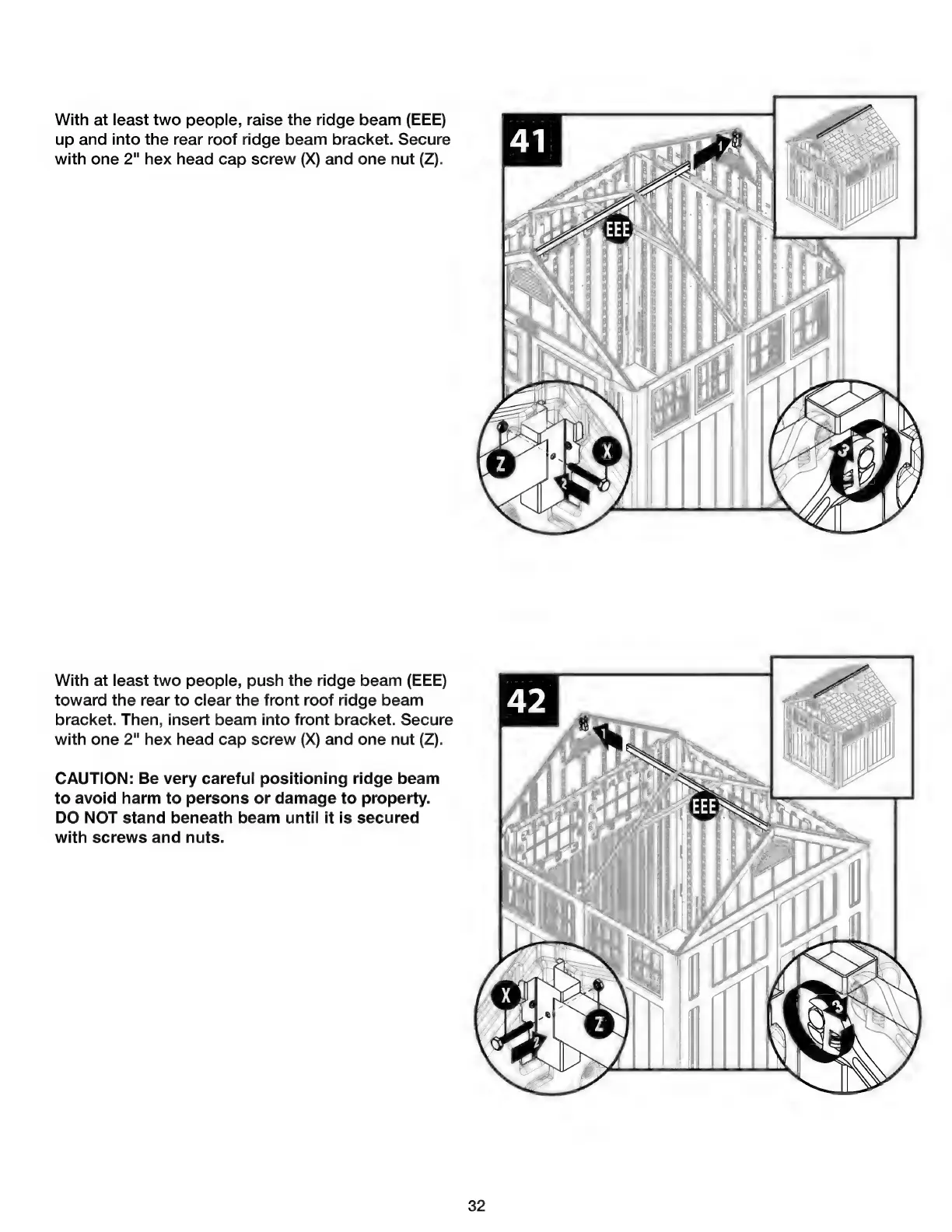

With at least two people, raise the ridge beam (EEE)
up and into the rear roof ridge beam bracket. Secure
with one 2" hex head cap screw (X) and one nut (2).
With at least two people, push the ridge beam (EEE)
toward the rear to clear the front roof ridge beam
bracket. Then, insert beam into front bracket. Secure
with one 2" hex head cap screw (X) and one nut (2).
CAUTION: Be very careful positioning ridge beam
to avoid harm to persons or damage to property.
DO NOT stand beneath beam until it is secured
with screws and nuts.
کم
Co󰾰
es󰾰
ES SE󰾰
$e X󰾰
ar SCANS󰾰
KA ORG <󰾰
e AA Hi󰾰
"T󰾰
Џ󰾰
56
32
