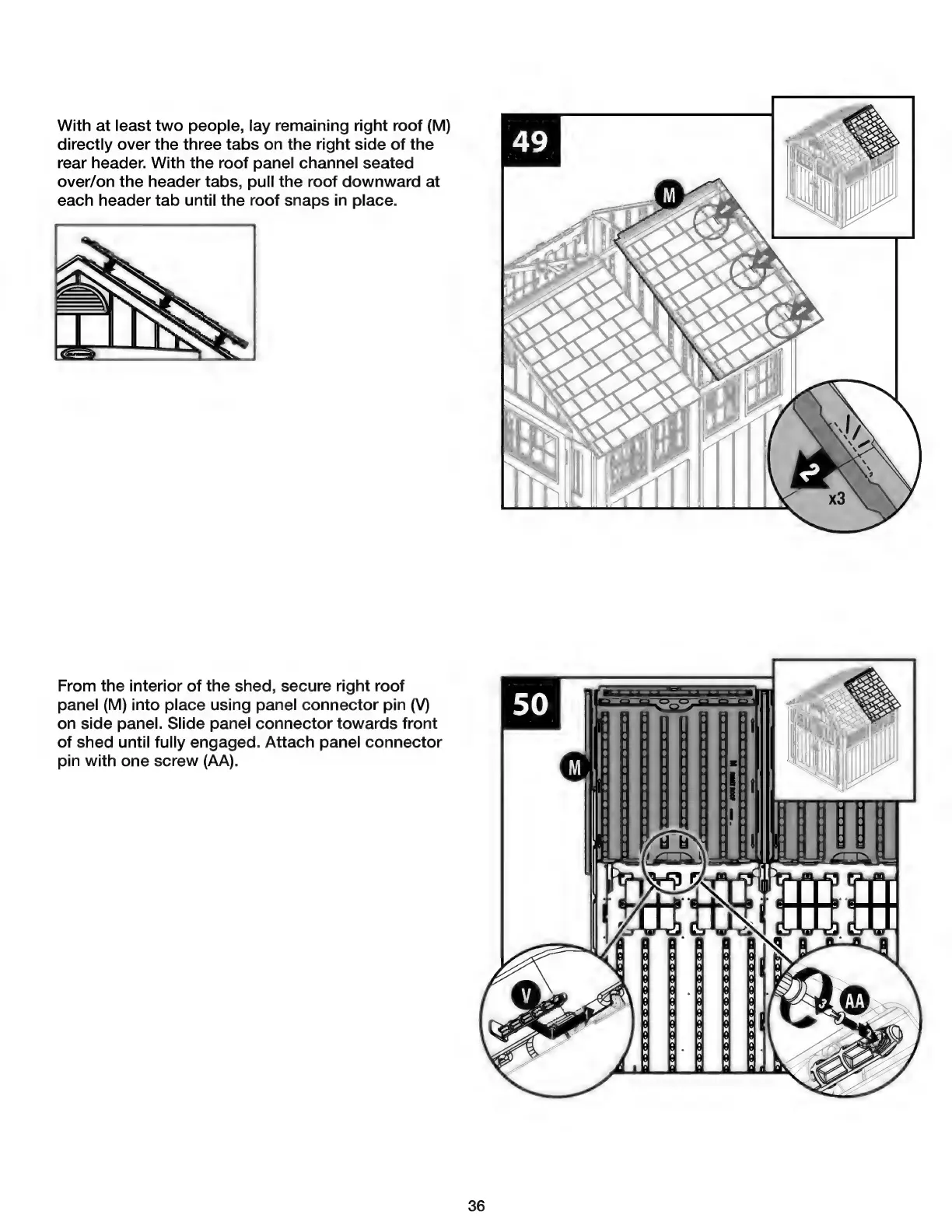

With at least two people, lay remaining right roof (M)
directly over the three tabs on the right side of the
rear header. With the roof panel channel seated
over/on the header tabs, pull the roof downward at
each header tab until the roof snaps in place.
From the interior of the shed, secure right roof
panel (M) into place using panel connector pin (V)
on side panel. Slide panel connector towards front
of shed until fully engaged. Attach panel connector
pin with one screw (AA).
o do do 42 92 42 902 402 Чо 42 30 |
EL 45 45 45 a> a> a> a> a> a> BE
D D D D ар D Фо D 4 db |
36
