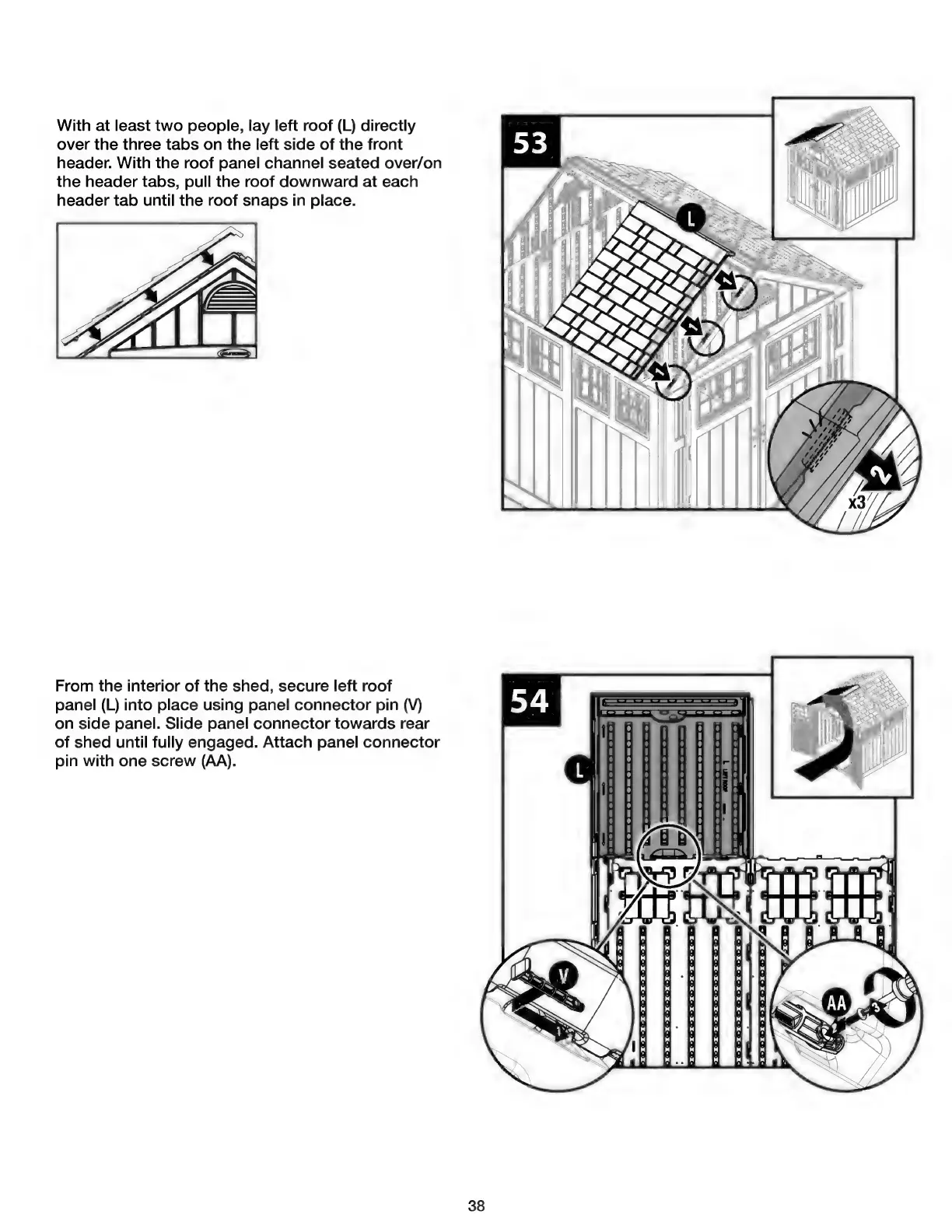

With at least two people, lay left roof (L) directly
over the three tabs on the left side of the front
header. With the roof panel channel seated over/on
the header tabs, pull the roof downward at each
header tab until the roof snaps in place.
From the interior of the shed, secure left roof
panel (L) into place using panel connector pin (V)
on side panel. Slide panel connector towards rear
of shed until fully engaged. Attach panel connector
pin with one screw (AA).
8
Е
0
0
0
0
‘à
0
0
0
0
0
0
0
- bb
I5-d5-d5 d5 d5 d5 a> 5 d5 db a> do a> mm
2 do do 42 He 90° He 42 He Ҹо D 90 90 |
5 5 5 45 d5 d5 d» do d5 db a> 4 d5 и
242 do do do do do do do 4 40 40.90 |
38
