Suncast BMS8100 - Roof and Truss Pre-Assembly Steps

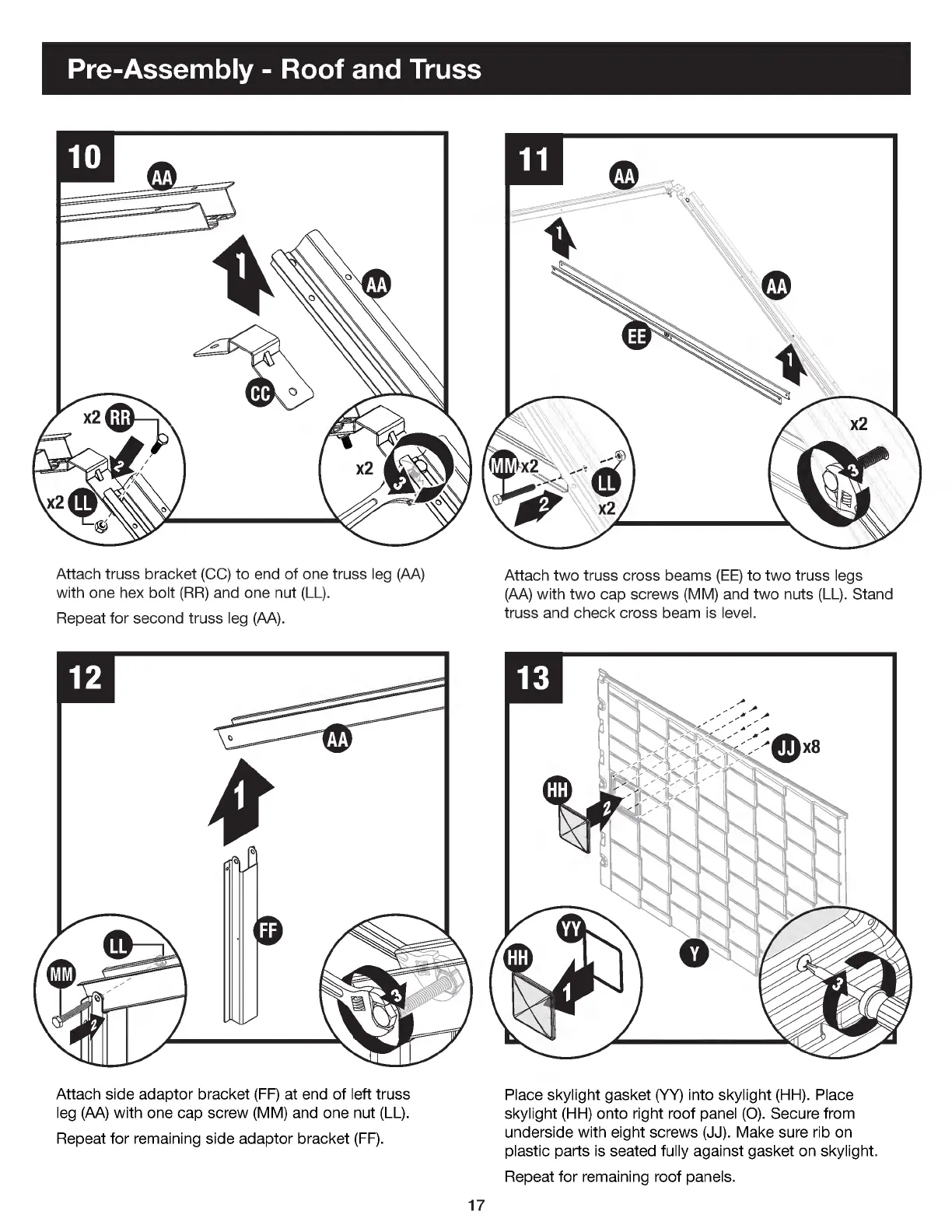

Pre- Assembly - Roof and Truss
Attach two truss cross beams ( EE) to two truss legs
(AA) with two cap screws ( MM) and two nuts ( LL). Stand
truss and check cross beam is level.
Attach truss bracket ( CC) to end of one truss leg ( AA)
with one hex bolt ( RR) and one nut ( LL).
Repeat for second truss leg ( AA).
Attach side adaptor bracket ( FF) at end of left truss
leg ( AA) with one cap screw ( MM) and one nut ( LL).
Repeat for remaining side adaptor bracket ( FF).
Place skylight gasket ( YY) into skylight ( HH). Place
skylight ( HH) onto right roof panel ( 0). Secure from
underside with eight screws ( JJ). Make sure rib on
plastic parts is seated fully against gasket on skylight.
Repeat for remaining roof panels.
17
