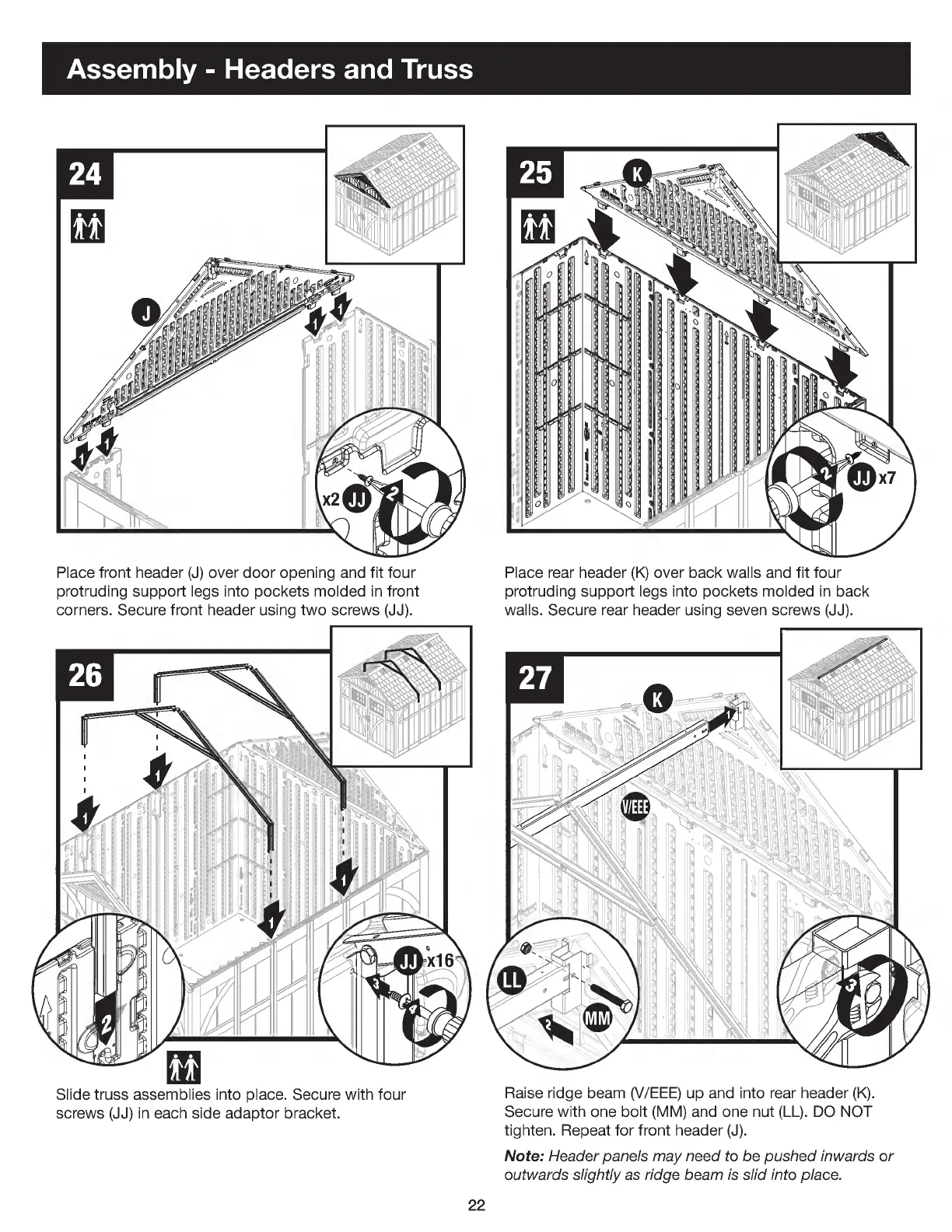

Assembly - Headers and Truss
Place front header ( J) over door opening and fit four
protruding support legs into pockets molded in front
corners. Secure front header using two screws ( JJ).
Place rear header ( K) over back walls and fit four
protruding support legs into pockets molded in back
walls. Secure rear header using seven screws ( JJ).
Slide truss assemblies into place. Secure with four
screws ( JJ) in each side adaptor bracket.
Raise ridge beam ( V/EEE) up and into rear header ( K).
Secure with one bolt ( MM) and one nut ( LL). DO NOT
tighten. Repeat for front header ( J).
Note: Header panels may need to be pushed inwards or
outwards slightly as ridge beam is slid into place.
