24
Shed Assembly/Roof (continued)

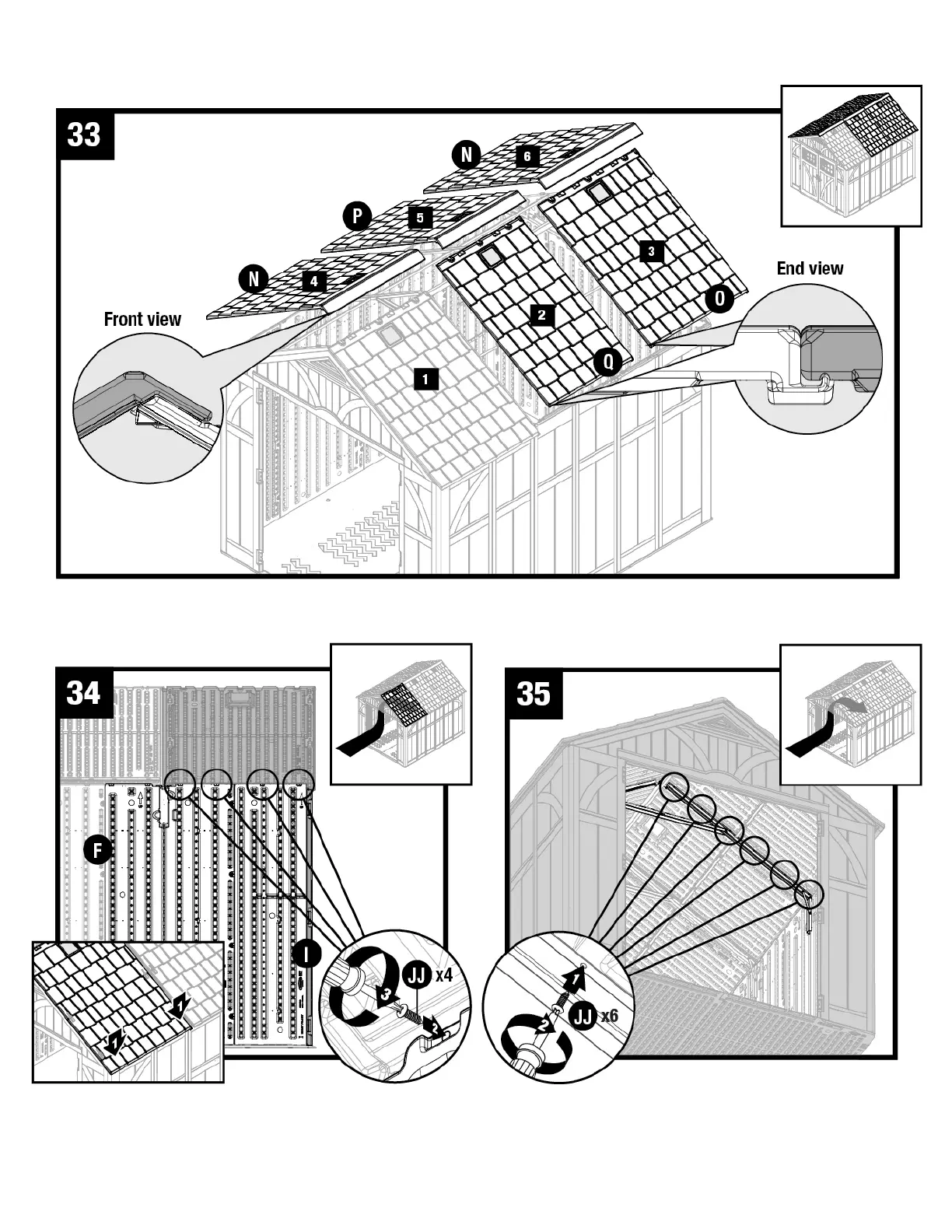

Repeat Steps 30-32 for remaining roof panels. Install panels in the order shown. Note: At this point, fully tighten ALL
hardware.
Pull down each lower corner of roof from outside. From
inside shed, attach tabs on right front corner (I) and side
panel (F) to roof panel with four screws (JJ).
Secure roof to truss using six screws (JJ). Each screw
will attach at a corresponding screw boss on the roof.
