26
Shed Assembly/Roof (continued)
Shed Assembly/Doors

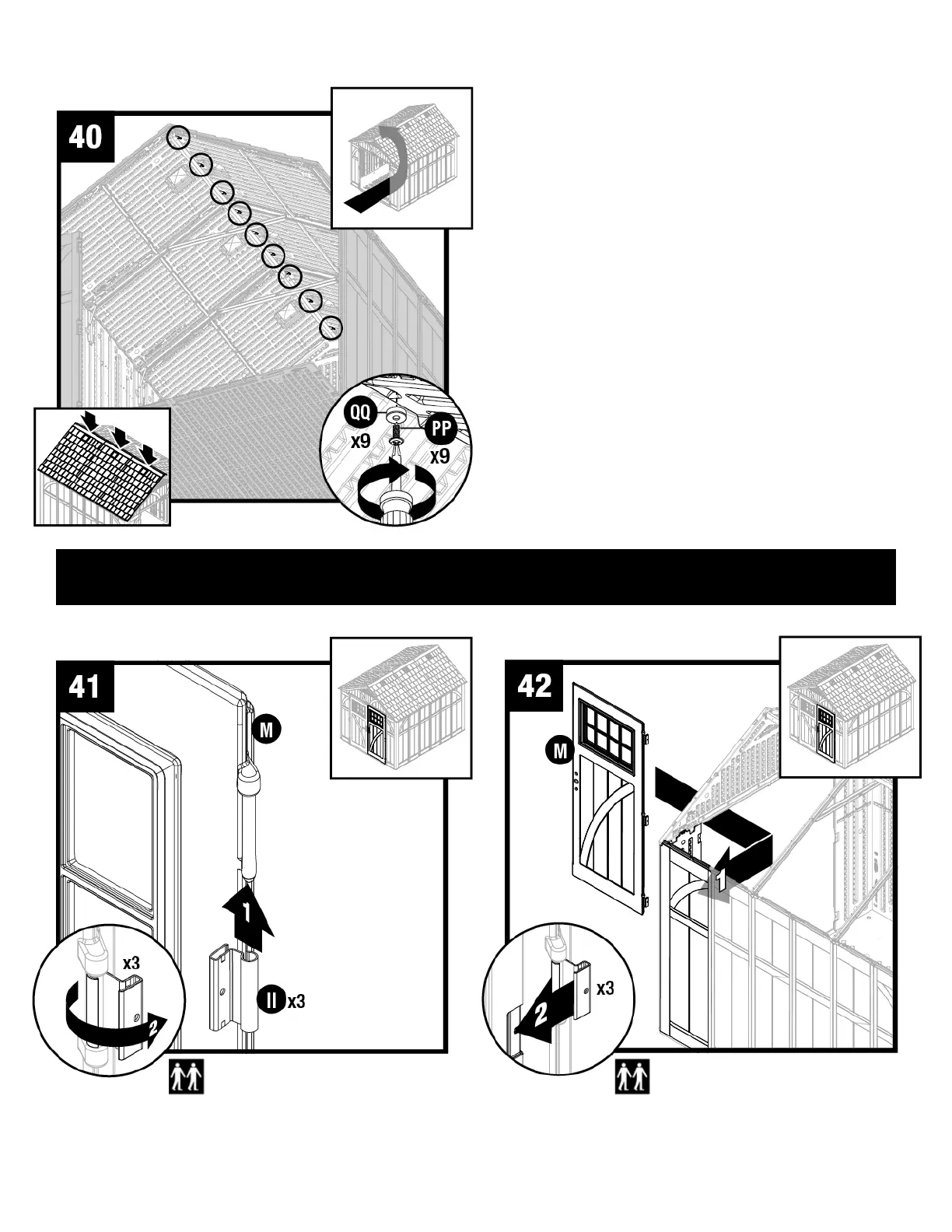

Push down the roof from outside. From inside shed,
secure roof panels together along ridge of roof using nine
rubber washers (QQ) and nine sealing screws (PP).
Note: For clarity, illustration is shown with front header
and right front corner removed.
Stand right door (M) upright with three hinge mounts
facing right. Slide one metal door hinge (II) up onto each
hinge mount. Rotate door hinges to outside of door.
With door hinge in open position, slide one door hinge
over each hinge receptacle on inside of right front panel.
Note: For clarity, illustration is shown with roof re-
moved.
