Suncast BMS8780T - Page 27

(ZZ x 5)

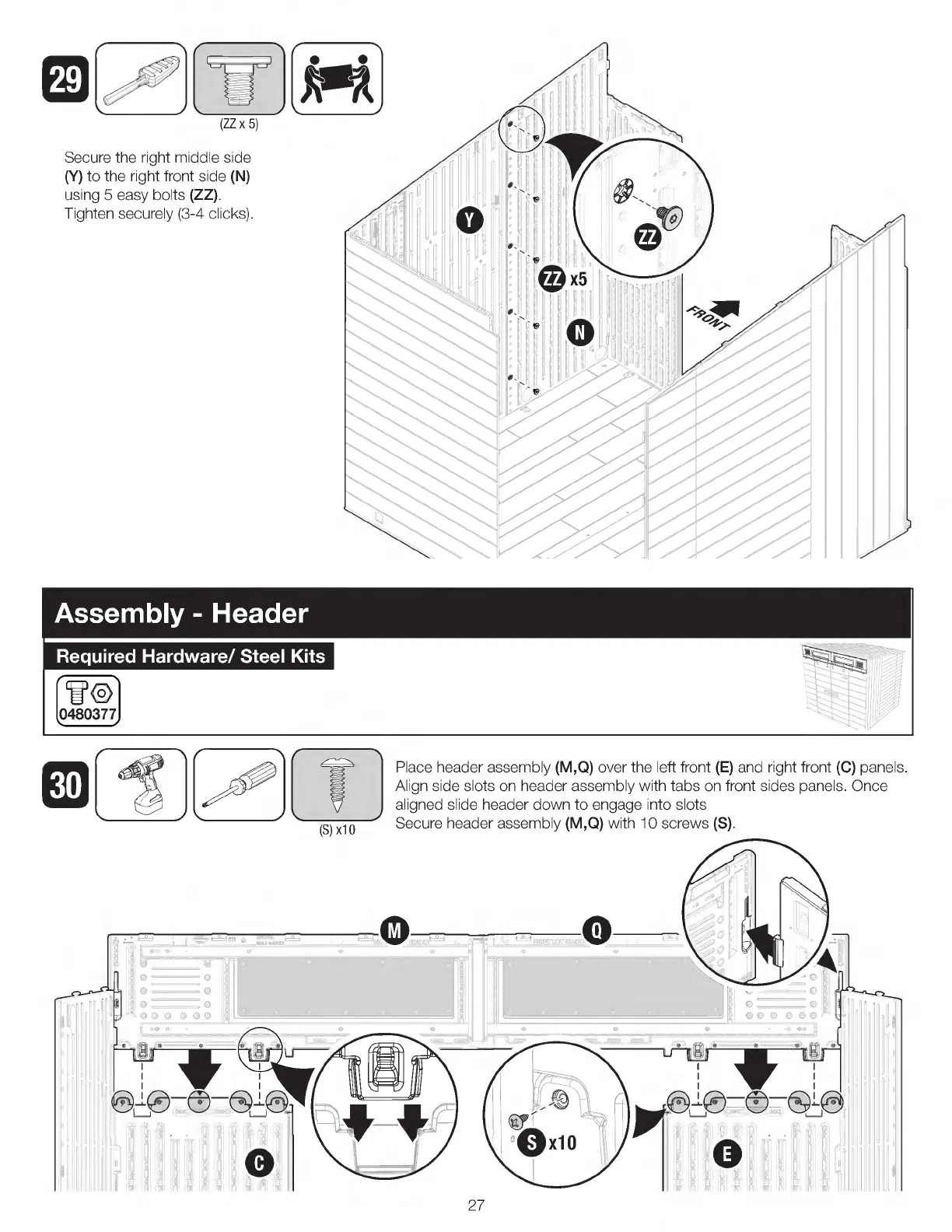

Secure the right middle side
(Y) to the right front side ( N)
using 5 easy bolts ( ZZ).
Tighten securely ( 3-4 clicks).
(S) x1 0
Place header assembly ( M,Q) over the left front ( E) and right front ( C) panels.
Align side slots on header assembly with tabs on front sides panels. Once
aligned slide header down to engage into slots
Secure header assembly ( M,Q) with 10 screws ( S).
27
