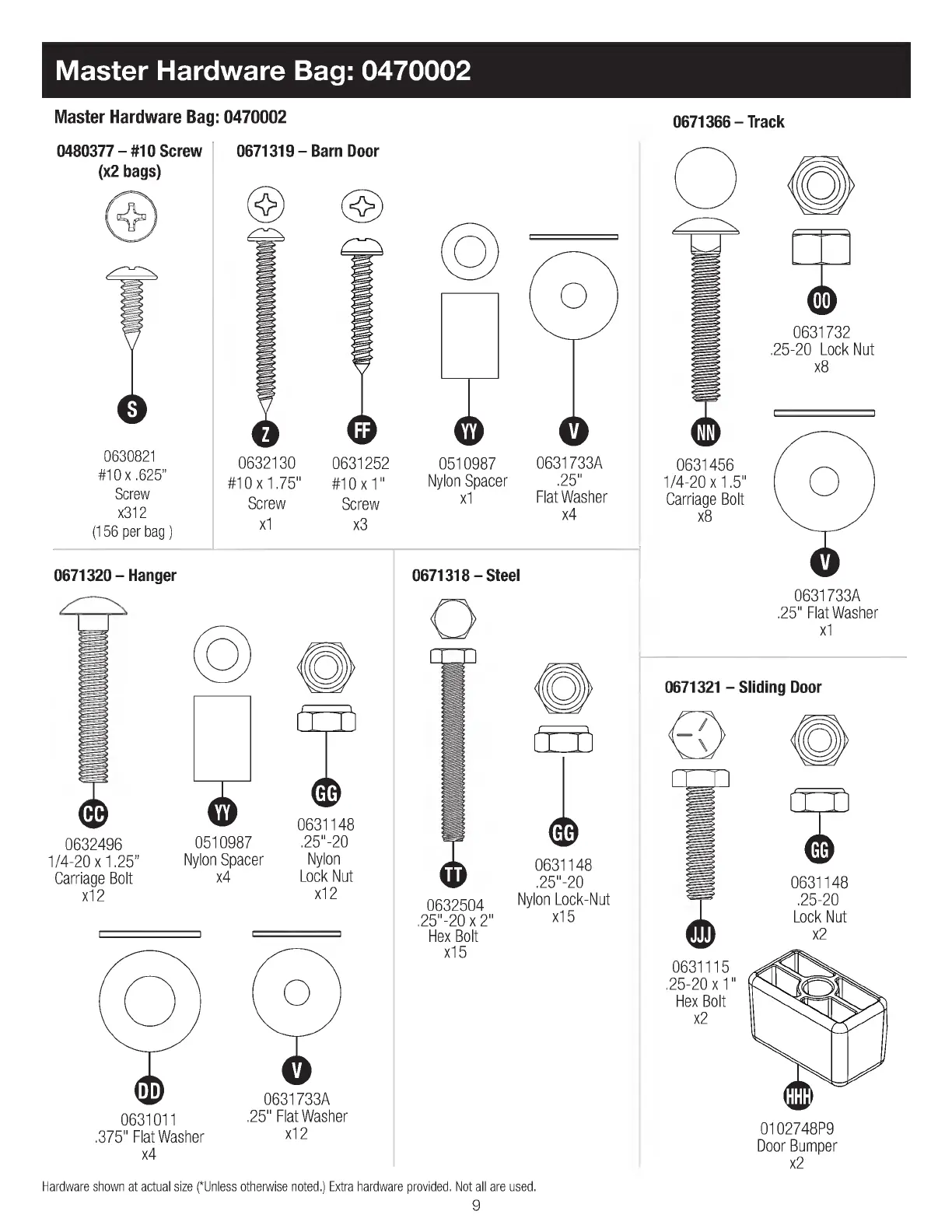

Master Hardware Bag: 0470002
Master Hardware Bag: 0470002
0480377 — # 10 Screw
(x2 bags)
0630821
#10 x . 625"
Screw
x312
(156 per bag )
0671319 — Barn Door
0632130 0631252
#10 x 1.75" # 10 x 1"
Screw Screw
x1 x3
0510987 0631733A
Nylon Spacer . 25"
x1 Flat Washer
x4
0671320 — Hanger
0632496
1/4-20 x 1.25"
Carriage Bolt
x12
0510987
Nylon Spacer
x4
0631011
.375" Flat Washer
x4
0631148
.25-20
Nylon
Lock Nut
x12
0631733A
.25" Flat Washer
x12
0671318 — Steel
0632504
.25-20 x 2"
Hex Bolt
x15
0631148
.25-20
Nylon Lock- Nut
x15
0671366 — Track
0631456
1/4-20 x 1.5"
Carriage Bolt
x8
0631732
.25-20 Lock Nut
x8
0631733A
.25" Flat Washer
x1
0671321 — Sliding Door
0631115
.25-20 x 1"
Hex Bolt
x2
0631148
.25-20
Lock Nut
x2
0102748P9
Door Bumper
x2
Hardware shown at actual size (* Unless otherwise noted.) Extra hardware provided. Not all are used.
