Suncast Brilliant Everett BMS6511 - Door Pre-Assembly

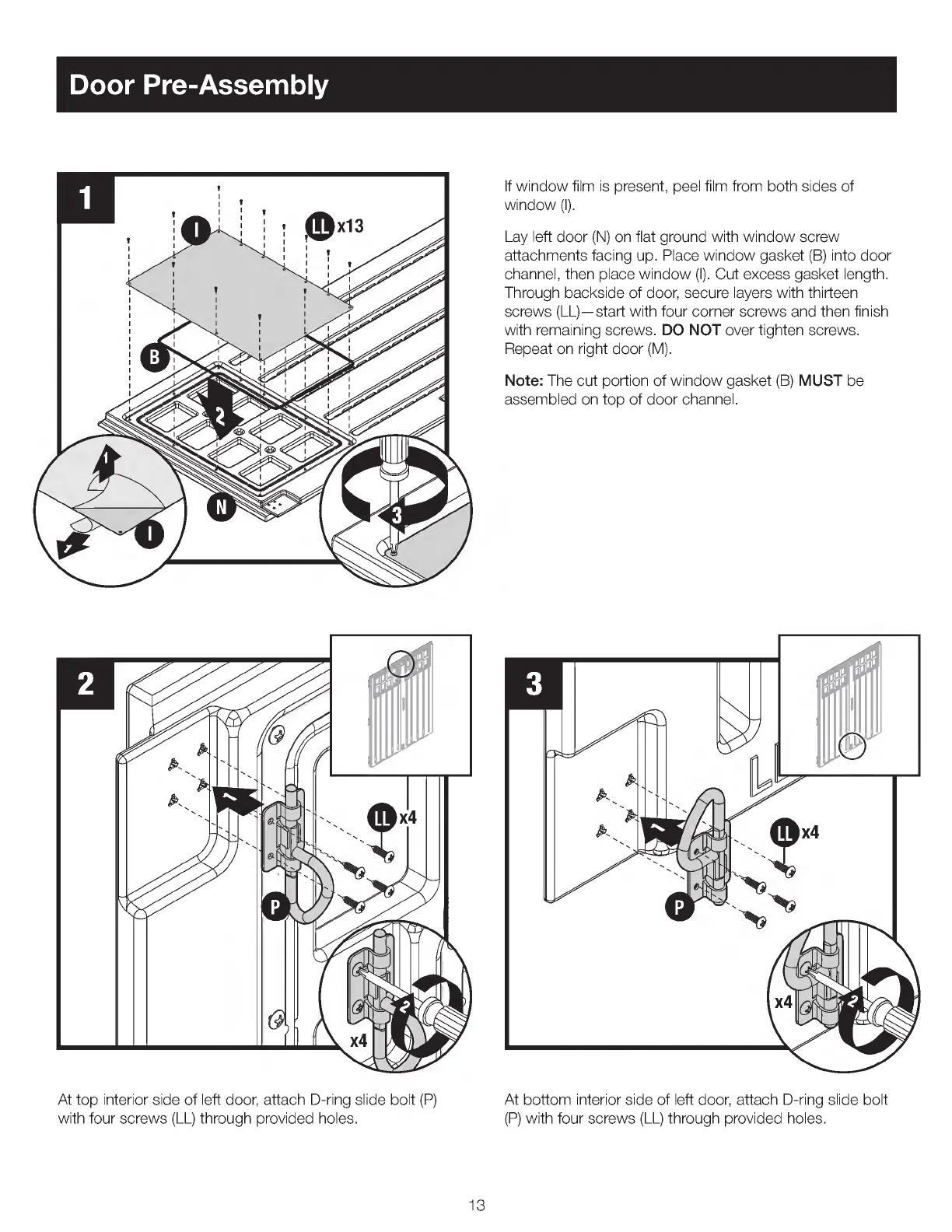

Door Pre- Assembly
If window film is present, peel film from both sides of
window ( I).
Lay left door ( N) on flat ground with window screw
attachments facing up. Place window gasket ( B) into door
channel, then place window ( I). Cut excess gasket length.
Through backside of door, secure layers with thirteen
screws ( LL)— start with four corner screws and then finish
with remaining screws. DO NOT over tighten screws.
Repeat on right door ( M).
Note: The cut portion of window gasket ( B) MUST be
assembled on top of door channel.
At top interior side of left door, attach D- ring slide bolt ( P)
with four screws ( LL) through provided holes.
At bottom interior side of left door, attach D- ring slide bolt
(P) with four screws ( LL) through provided holes.
13
