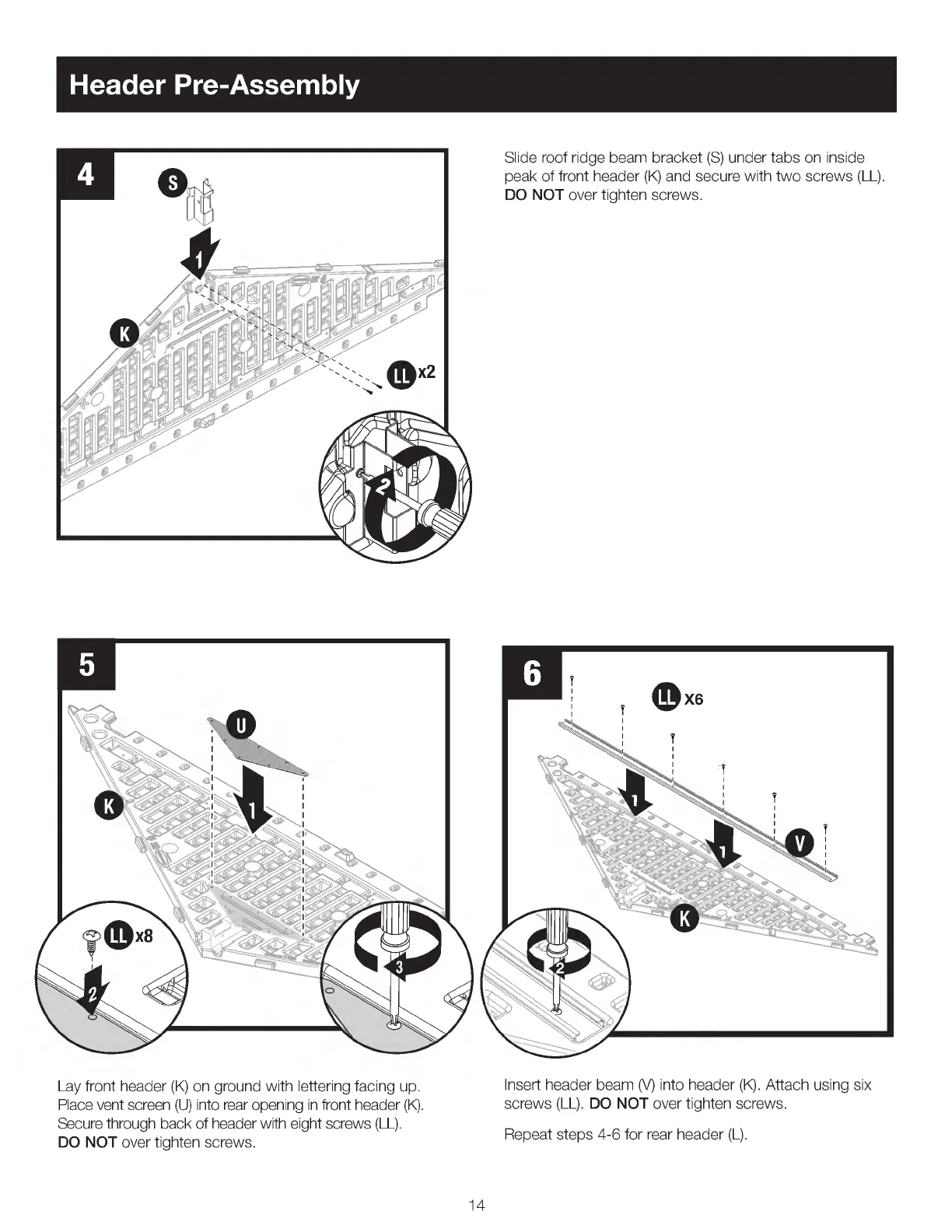

Header
Pre-
Assembly
Insert
header
beam (
V)
into
header (
K).
Attach
using
six
screws (
LL).
DO
NOT
over
tighten
screws.
Lay
front
header (
K)
on
ground
with
lettering
facing
up.
Place
vent
screen (
U)
into
rear
opening
in
front
header (
K).
Secure
through
back
of
header
with
eight
screws (
LL).
DO
NOT
over
tighten
screws.
Slide
roof
ridge
beam
bracket (
S)
under
tabs
on
inside
peak
of
front
header (
K)
and
secure
with
two
screws (
LL).
DO
NOT
over
tighten
screws.
Repeat
steps
4-6
for
rear
header (
L).
