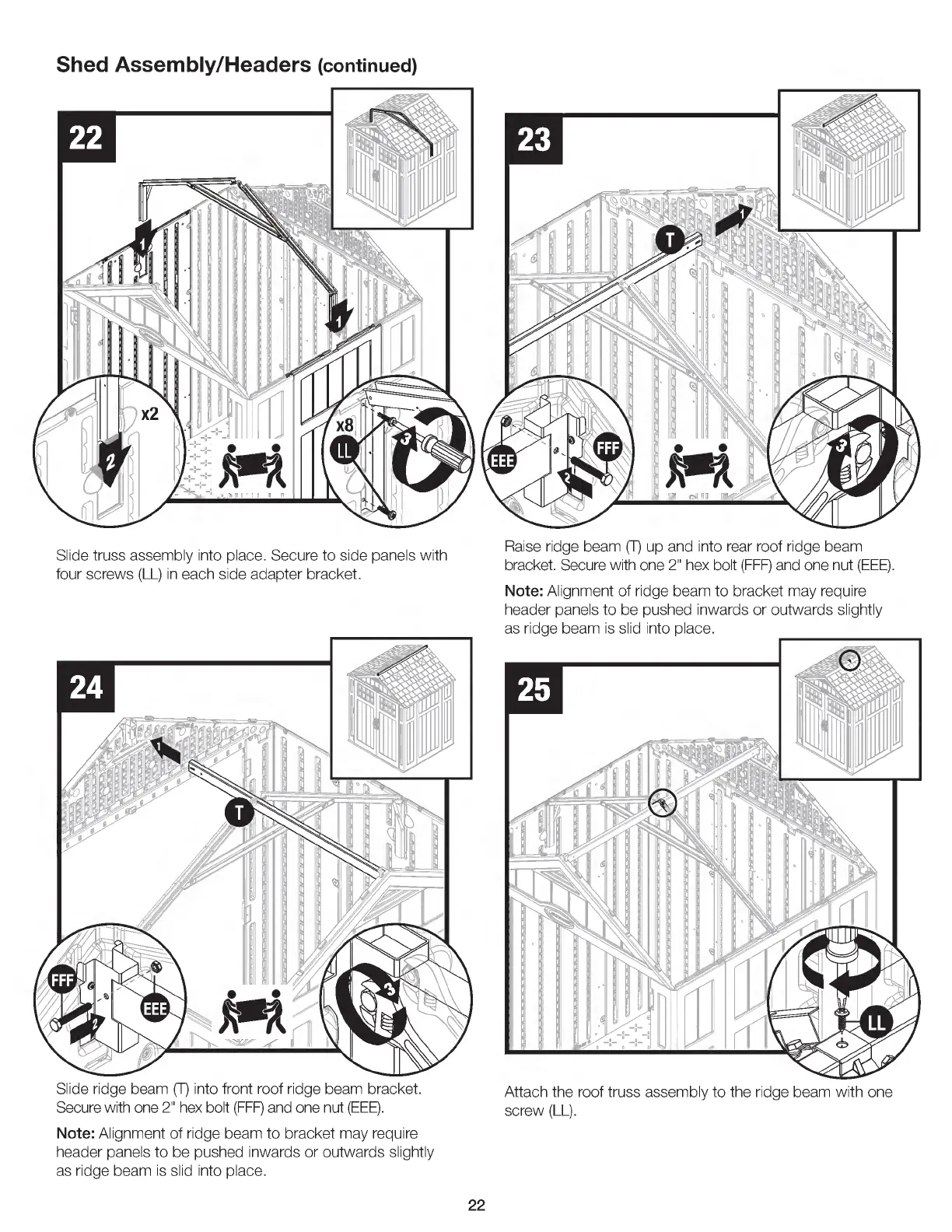

Shed Assembly/Headers ( continued)
Slide truss assembly into place. Secure to side panels with
four screws ( LL) in each side adapter bracket.
Slide ridge beam ( T) into front roof ridge beam bracket.
Secure with one 2" hex bolt ( FFF) and one nut ( FEE).
Note: Alignment of ridge beam to bracket may require
header panels to be pushed inwards or outwards slightly
as ridge beam is slid into place.
Raise ridge beam ( T) up and into rear roof ridge beam
bracket. Secure with one 2" hex bolt ( FFF) and one nut ( FEE).
Note: Alignment of ridge beam to bracket may require
header panels to be pushed inwards or outwards slightly
as ridge beam is slid into place.
Attach the roof truss assembly to the ridge beam with one
screw ( LL).
22
