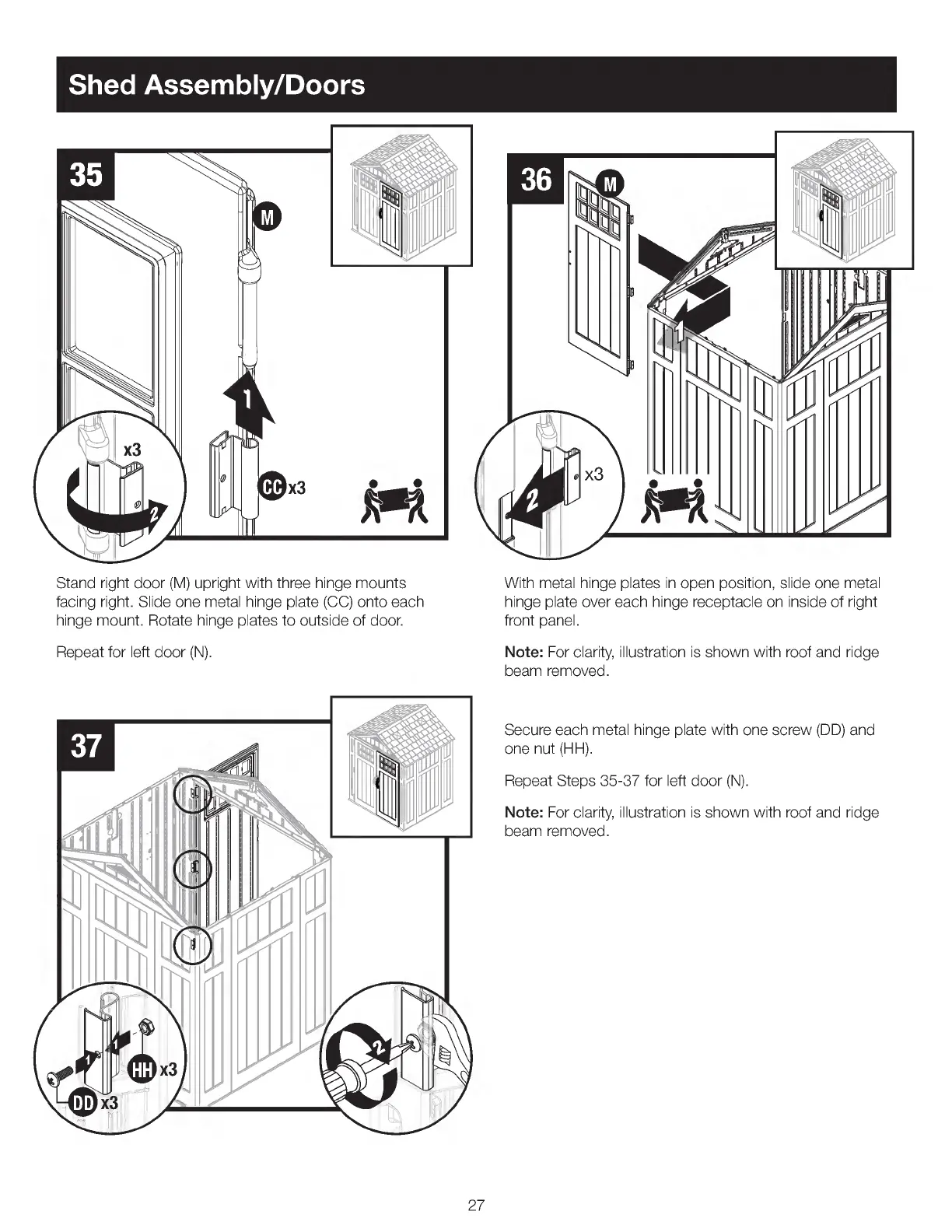

Shed
Assembly/Doors
Stand
right
door (
M)
upright
with
three
hinge
mounts
facing
right.
Slide
one
metal
hinge
plate (
CC)
onto
each
hinge
mount.
Rotate
hinge
plates
to
outside
of
door.
With
metal
hinge
plates
in
open
position,
slide
one
metal
hinge
plate
over
each
hinge
receptacle
on
inside
of
right
front
panel.
Repeat
for
left
door (
N).
Note:
For
clarity,
illustration
is
shown
with
roof
and
ridge
beam
removed.
Secure
each
metal hinge
plate
with
one
screw (
DD)
and
one
nut (
HH).
Repeat
Steps
35-37
for
left
door (
N).
Note:
For
clarity,
illustration
is
shown
with
roof
and
ridge
beam
removed.
