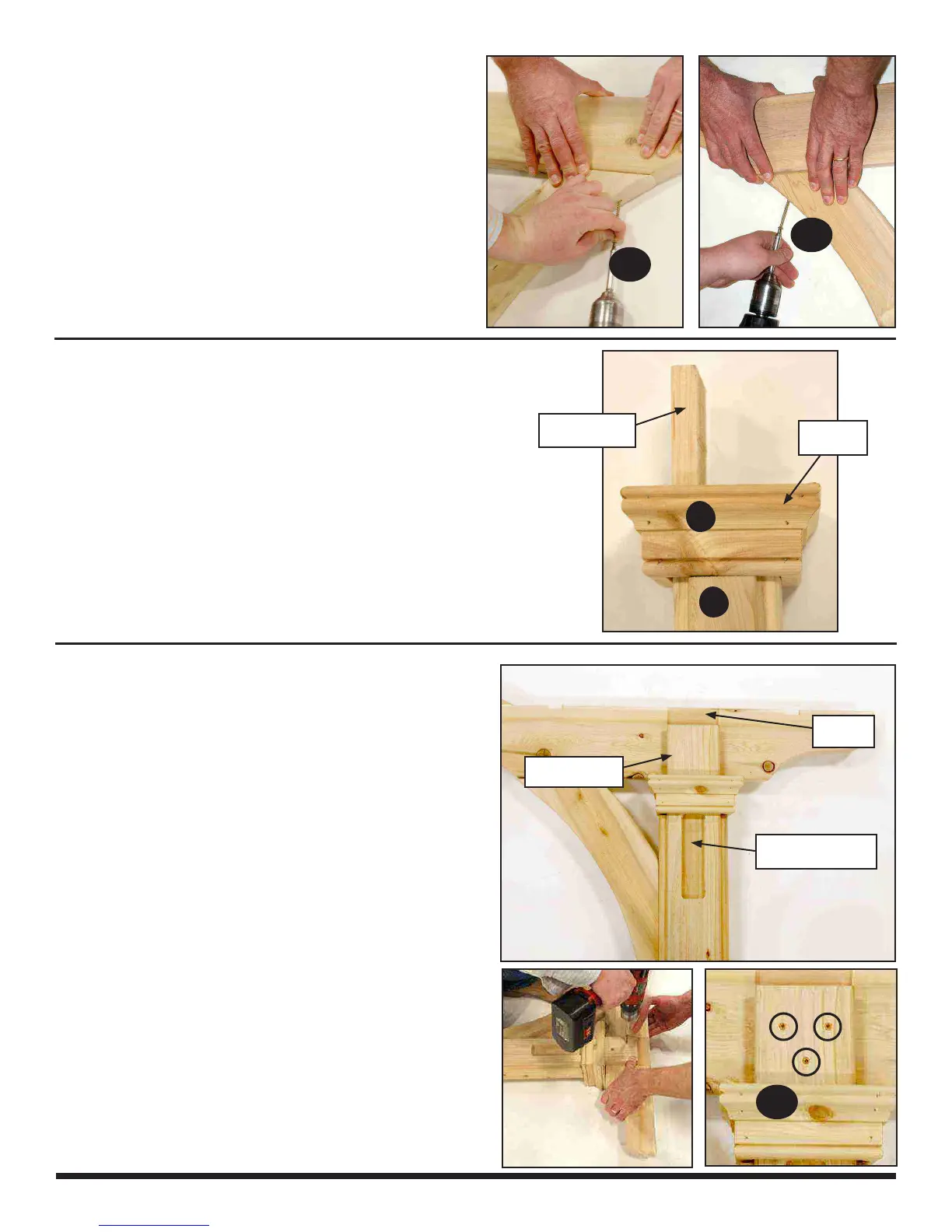

3. Attach each Arch Support to Arch using one 3" Screw (AA),
through the pre-drilled hole, at location and angle shown.
4. Locate two Posts (C) and two Post Trim Rings (D). Slip one
Post Trim Ring over the long board on each Post, as shown.
5. Take one Post, with Post Trim Ring, and insert the long board
into the notch of the arch assembly with trim ring flush
against arch and beam receptacle facing up.
Attach Post to arch assembly with three 2" Screws (CC)
through pre-drilled holes in positions shown.
NOTE: Do not sink screw heads into wood.
x2
x3
x2
CC
AA
AA
C
D
long board
post ring
notch
long board
beam receptacle
To Next Page
