Suncast MDHC200 - O-Ring Maintenance

8
PRODUCT SHOWN MAY DIFFER FROM ACTUAL PRODUCT.

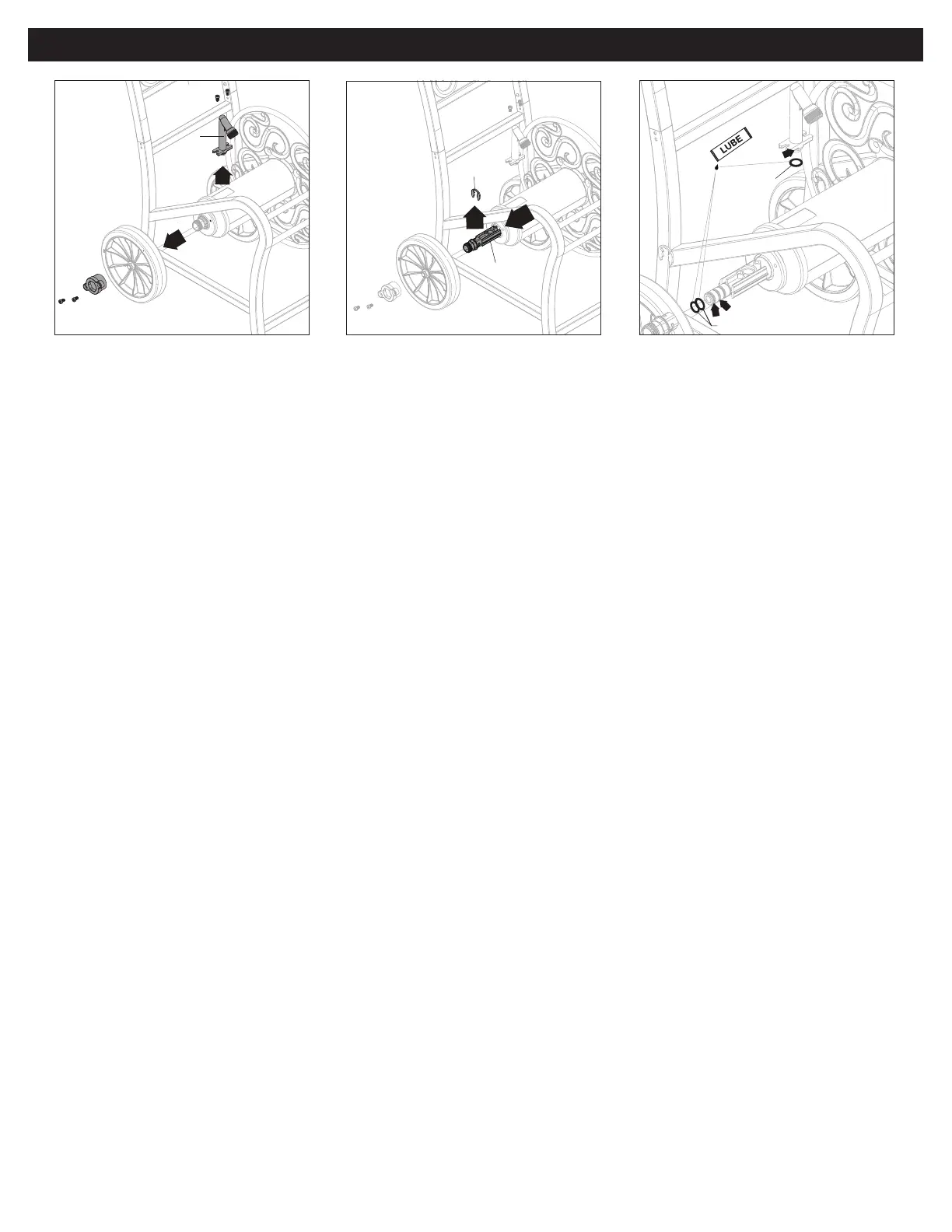

In Tube/Out Tube removal for O-ring replacement
□ Remove two screws from the In-Tube and two screws from the Out-Tube. (Fig. 1)
□ Remove In-tube then remove the clip. (Fig. 2) Pull apart to locate the O-rings.
□ To replace the O-rings on the In-Tube (Fig. 3) remove them from the In-Tube. Coat new O-rings with silicone based lubricant and return
to the In-tube. Insert the In-Tube back into the hose reel and attach using the screws previously taken out. Repeat process for Out-tube
O-ring.
Figure 1
Figure 2
Figure 3
1
1
Out-Tube
1
1
2
3
In-Tube
Clip
O-Rings
O-Ring
Assembly
