When the filter is used to its maximum capacity, i.e 3 connected users
the available compressor capacity must be at least 900 l/min. The
consumption of any tools connected to this system must be added to
the above values.
The compressor air intake must be located so that there will be no
risk of polluted air being drawn into the system.
The supply pipe to the compressed air filter must have an inside
diameter of at least 11 mm to ensure that it can deliver the maximum
air flow rate.
.

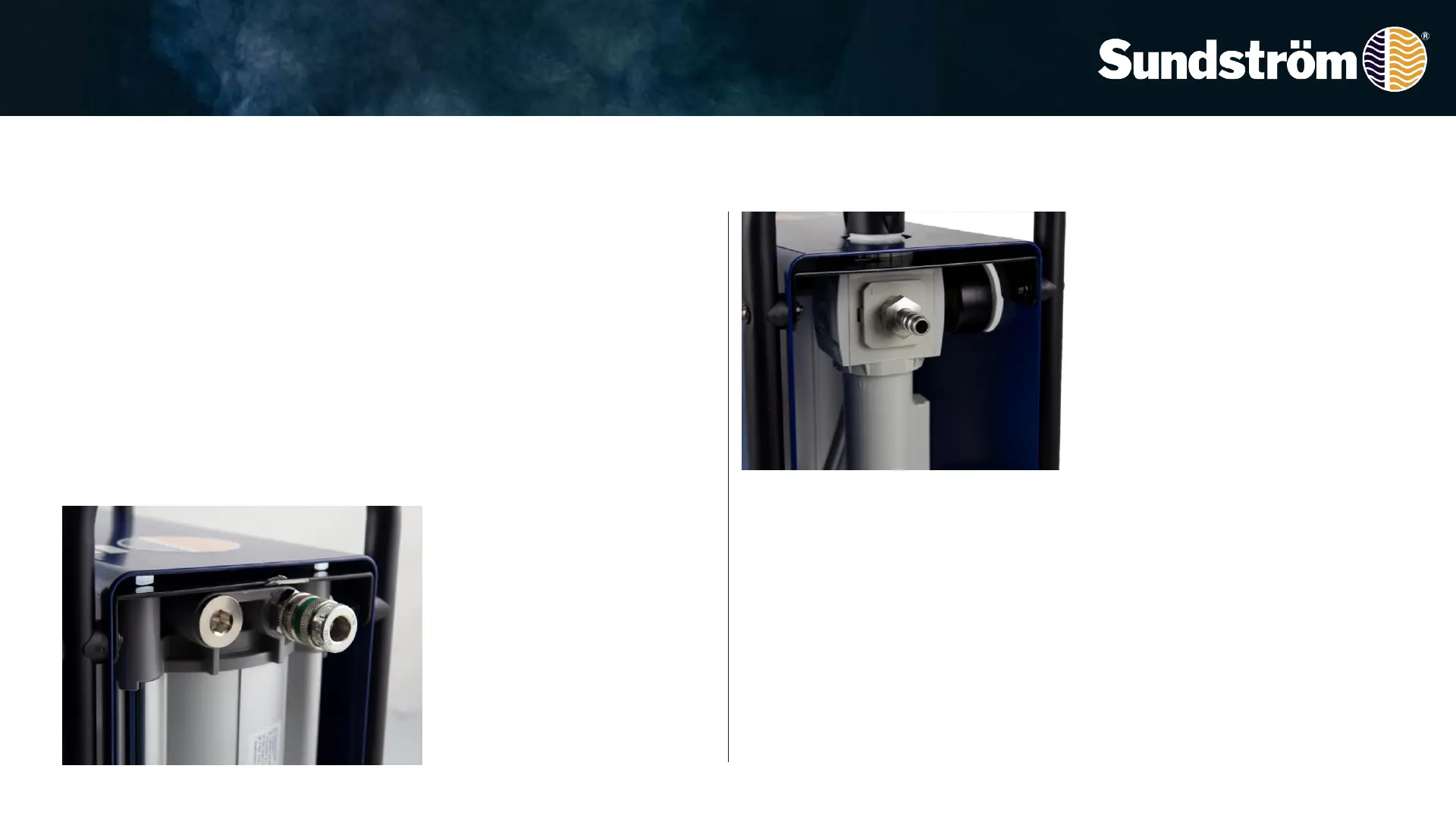

1.1 The filter has two outlets
one of which is plugged prior
to delivery.
Fit the safety coupling
supplied.
1.2 The inlet thread of the
filter is 1 /2” BSP female.
Fit a suitable coupling/nipple
