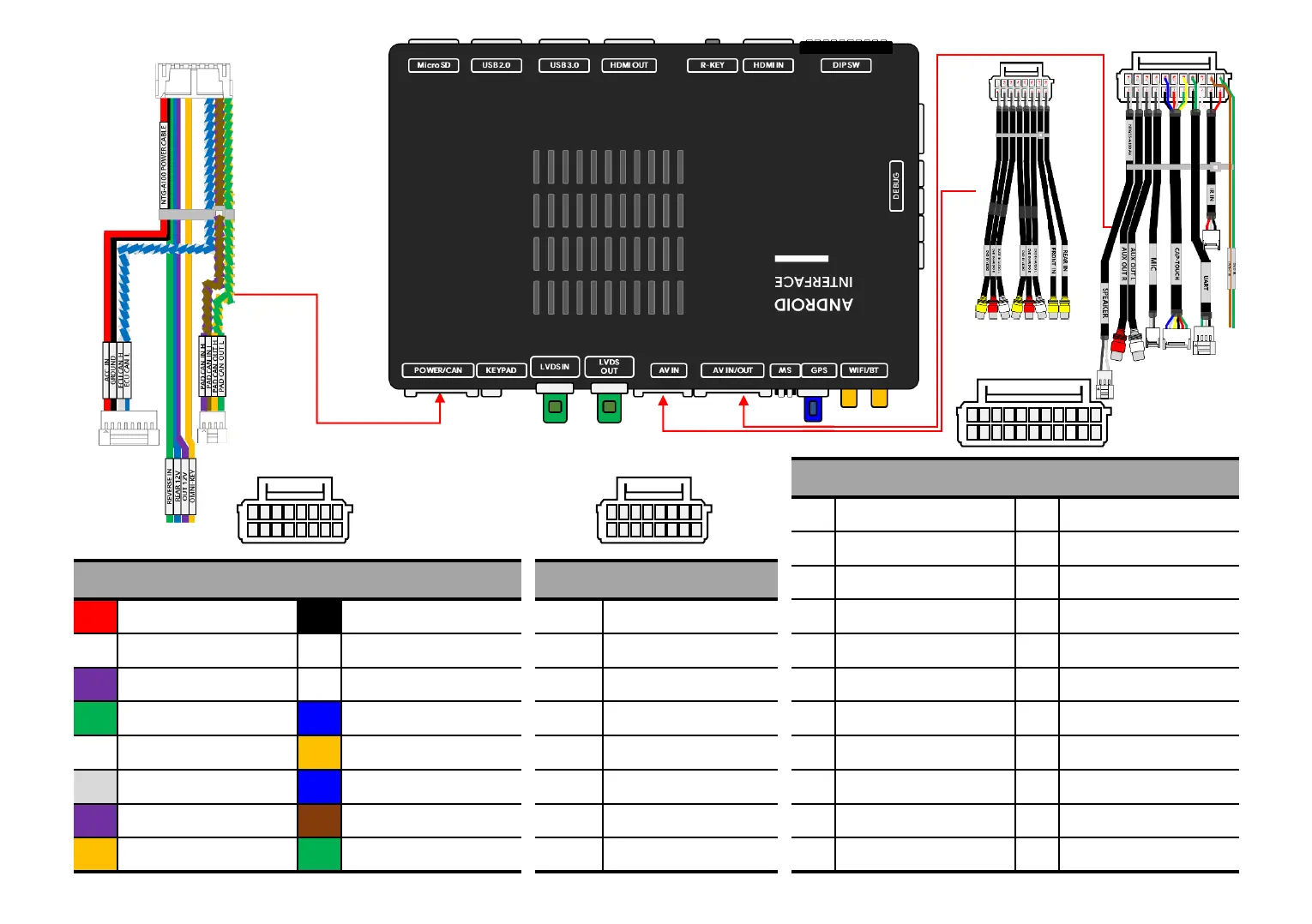

PIN ASSIGNMENT
POWER / CAN
1 ACC IN 2 Ground
3 4 IR – DVD-T
5 12V output 6
7 Reverse input 8 Rear 12V output
9 10 Omni Key
11 ECU CAN High Input 12 ECU CAN Low Input
13 MON CAN High Input 14 MON CAN Low Input
15 MON CAN High Output 16 MON CAN Low Output
1
6
1
5
1
4
1
3
1
2
1
1
1
0
9
8 7 6 5 4 3 2 1
15 1
2 16
2
2
2
1
2
0
1
9
1
8
1
7
1
6
1
5
1
4
1
3
1
2
1
1
1
0
9 8 7 6 5 4 3 2 1
21 1
2 22
AV IN
1, 2 DVB-T Video
3, 4 DVB-T Audio R
5, 6 DVB-T Audio L
7, 8 DVD Video
9, 10 DVD Audio R
11, 12 DVD Audio L
13, 14 Front Camera
15, 16 Rear Camera
1
6
1
5
1
4
1
3
1
2
1
1
1
0
9
8 7 6 5 4 3 2 1
15 1
2 16
AV IN/OUT
1 Speaker P 2 Speaker N
3 Audio Out R 4 Ground
5 Audio Out L 6 Ground
7 Mic P 8 Mic N
9 CapTouch-I2C-SCL 10 CapTouch-Ground
11 CapTouch-I2C-SDA 12 CapTouch-Power 3.3V
13 CapTouch-Interrupt 14 CapTouch-Reset
15 Resistive Touch X- 16 IR – DVB-T
17 Resistive Touch Y- 18 IR Receive – Signal
19 Resistive Touch X+ 20 IR Receive – Ground
21 Resistive Touch Y+ 22 IR Receive – Power
