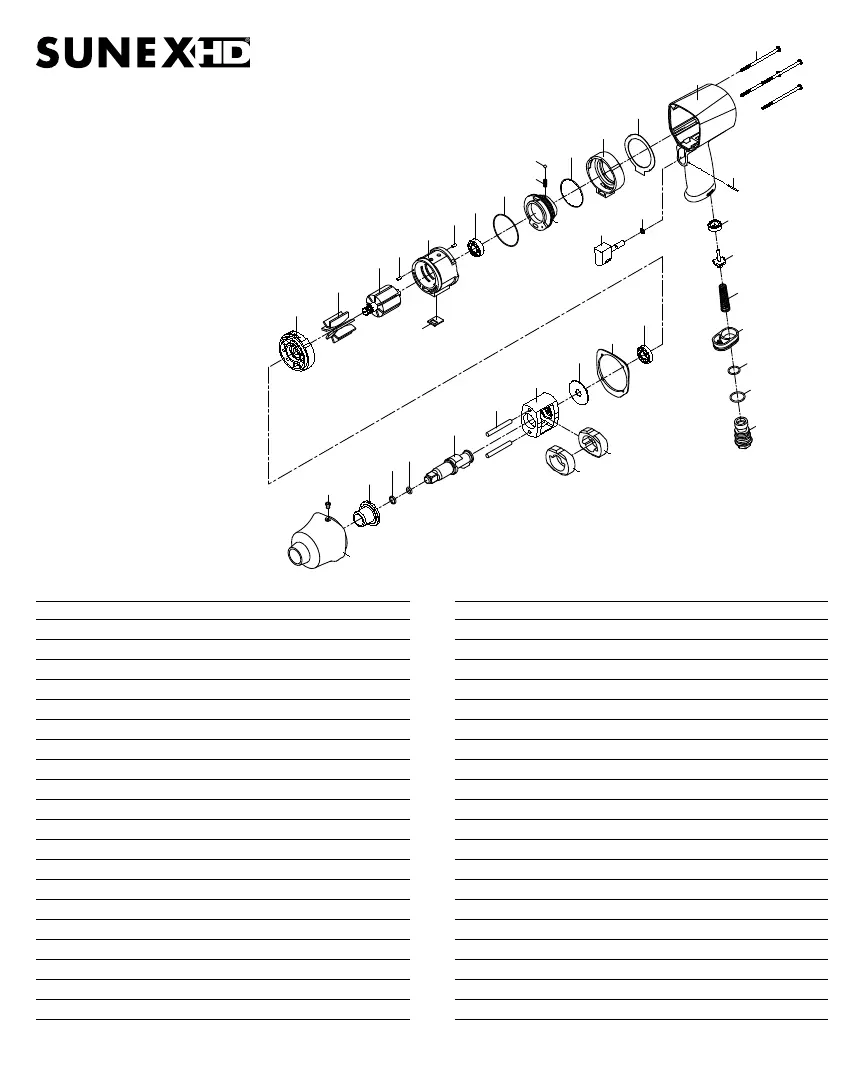

Sunex HD SX4348 - Parts Breakdown and Identification; Component List and References

REF. PART
NO. NO. DESCRIPTION QTY.
1 RS434801 Motor Housing 1
RS434801D Demo Motor Housing 1
2 RS433502 Spring Pin 1
3 RS433503 Air Inlet 1
4 RS433504 Trigger 1
5 RS433505 O-Ring 1
7 RS433507 Exhaust Diffuser 1
13 RS227B25 Ball Bearing 1
14 RS434814 Inlet Guide 1
15 RS434815 Rotor 1
16 RS434816 Rotor Blade (Pack of 7) 1
17 RS433517 Spring Pin 1
18 RS434818 Cylinder 1
19 RS434519 Front End Plate 1
20 RS85324 Ball Bearing 1
21 RS434821 Air Regulator (Incl. #21, 23, 24) 1
22 RS434522 O-Ring 1
23 RS433523 Spring 1
24 RS433524 Steel Ball 1
25 RS434525 Anvil Bushing 1
26 RS433526 Grease Fitting 1
REF. PART
NO. NO. DESCRIPTION QTY.
27 RS188031 Spring Pin 1
28 RS434828 Hammer Case (Incl. #25,26,28) 1
29 RS434829 Gasket 1
30 RS434830 O-Ring 1
31 RS434831 Gasket 1
32 RS434532 Washer 1
33 RS434533 Hammer Cage 1
34 RS434534 Hammer 2
35 RS434535 Hammer Pin 2
36 RS434536 Anvil (R-Type 1/2") (Incl. #36,37,38) 1
37 RS233A11 O-Ring 1
38 RS434538 Retaining Ring 1
39 RS434839 Gasket 1
41 RS433541 O-Ring 1
42 RS434842 Valve Spring 1
43 RS434843 Valve Stem 1
44 RS434844 Rubber Spacer 1
45 RS433545 O-Ring 1
46 RS434546 Screw 4
Not shown: Also available - Tune-up Kit
RS4348TK (Incl. #5, 16 (7), 22, 29-31, 37-41 & 45)
1/2" DRIVE
SUPER DUTY
IMPACT WRENCH
SX4348
SX4348DEMO
44
43
42
7
28
2
34
34
5
4
46
1
29
14
22
30
13
17
15
16
19
20
31
32
33
35
*36
37
38
25
26
39
18
24
23
21
45
41
3
27
SX4348 & SX4348DEMO: Parts Breakdown & Operating Manual 4 rev. 06/28/12
