REF. PART
NO. NO. DESCRIPTION QTY.
1 RS521001 Motor Housing 1
2 RS521002 Decoration Ring 1
3 RS521003 Air Inlet 1
4 RS521004 Throttle Lever (Incl. #26, 27, 28) 1
5 RS521005 Valve Shaft 1
6 RS233A07 O-Ring 1
7 RS233A09 O-Ring 1
8 RS521008 Spring 1
9 RS521009 O-Ring 1
10 RS521010 Plug 1
11 RS521011 Diffuser 1
12 RS521012 Rotor Bushing 1
13 RS521013 Clamp Nut 1
14 RS521014 Rear End Plate 1
15 RS521015 Rotor 1
16 RS521016 Rotor Blade (Pack of 4) 1
REF. PART
NO. NO. DESCRIPTION QTY.
17 RS21114 Ball Bearing 1
18 RS521018 Cylinder 1
19 RS521019 Front End Plate 1
20 RS31717 Spring Pin 3
21 RS10920 Ball Bearing 1
22 RS521022 Collet Holder 1
23 RS521023 1/4" Collet 1
24 RS521024 Collet Nut 1
25 RS233A02 Spring Pin 1
26 Spring Pin (Incl. w/#4) 1
27 Spring (Incl. w/#4) 1
28 Safety Bar (Incl. w/#4) 1
29 RS521029 O-Ring 1
30 RS521030 O-Ring 1
31 RS521031 Grip 1
32 RS233A28 Spanner 2
1/4" DRIVE
1.0 HP SUPER DUTY
DIE GRINDER
SX5210
15
16
20
18
20
12
20
19
21
13
22
23
24
32
1
17
14
4
25
27
26
28
29
31
11
3
10
7
8
6
5
9
30
2
32

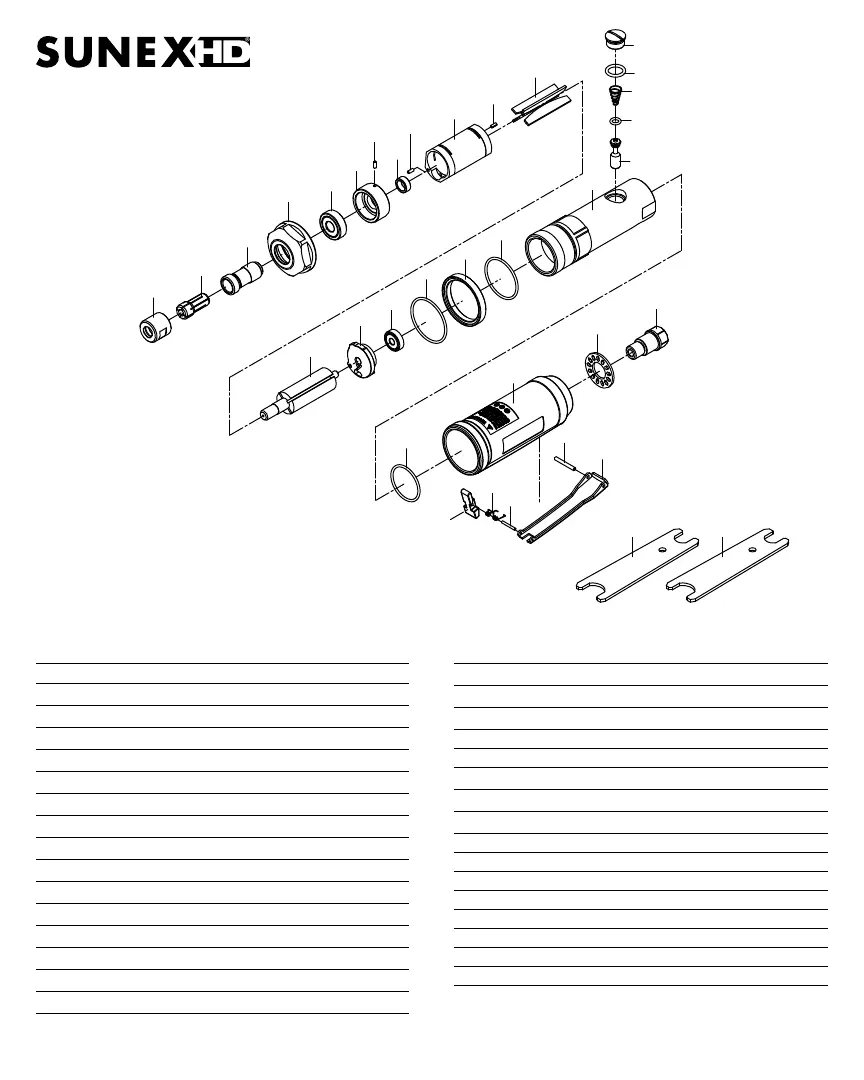

SX5210: Parts Breakdown & Operating Manual 4 05/24/12
