REF. PART
NO. NO. DESCRIPTION QTY.
8 RS246002 O-Ring (3.5 x 1.4) 1
9 RS820009 Air Inlet 1
10 RS820010 Exhaust Sleeve 1
11 RS31511 O-Ring (26.7 x 1.78) 1
12 RS621011 Spring Pin 1
13 RS520113 Lever 1
14 RS820014 Protecting Rubber 1
15 RS820015 Housing 1
16 RS30516 Bearing (696ZZ) 1
17 RS31517 Rear Plate 1
18 RS288323 Pin 2
19 RS288320 Rotor Blade 4
20 RS315B21 Rotor (9T) 1
21 RS31521 Cylinder 1
23 RS30524 Bearing (608ZZ) 5
24 RS31523 Front Plate 1
25 RS227B25 Bearing (6001Z) 1
26 RS31525 Washer 1
27 RS103927 Thread Ring Gear 1
28 RS103928 Idler Gear (16T) 2
29 RS103929 Needle Bearing 2
30 RS31528 Idler Gear Pin 2
31 RS103931 Gear Plate 1
32 RS103932 Sliding Key 1
33 RS29120 Bearing (6200ZZ) 1
34 RS103934 Clamp Nut 1
35 RS103935 Bevel Gear 1
36 RS700MB36 Washer 1
37 RS700MB37 Screw 1
38 RS103938 Plastic Housing 1
40 RS103940 Toothed Pulley 2
41 RS700MB41 Key (3 x 13) 3
42 RS103942 Belt Drive Shaft 1
43 RS103943 Toothed Belt 1
44 RS103944 Left Bevel Gear (20T) 1
REF. PART
NO. NO. DESCRIPTION QTY.
45 RS103945 Belt Drive Shaft 1
46 RS103946 Screw (3 x 18L) 11
47 RS103947 Nut 1
48 RS103948 Handle Ring 1
49 RS103949 Handle 1
53 RS103953 Screw 1
54 RS103954 Cover 1
56 RS820056 Screw (1/4" x 28 UNF x 7/8") 1
58 RS103958 Hex (3/16") 1
64 RS103964 Pin (3 x 5) 1
65 RS700MB65 Nut 1
66 RS700MB66 Stop Board 1
67 RS700MB67 Screw 1
72 RS700MB72 Washer 1
76 RS103740 Muffler Body 1
77 RS103741 Stainless Mesh 1
78 RS103744 Silencer 1
79 RS103743 Muffler 1
80 RS820080 Silencer 1
81 RS103735 Regulator 1
82 RS288302 O-Ring (P-10) 1
83 RS315B03 O-Ring (P-9) 1
84 RS288304 Snap Ring 1
85 RS820085 Valve Stem 1
86 RS103745 Spring 1
87 RS103746 Valve 1
88 RS103747 Washer 1
ITEMS INCLUDED IN KIT SX8200
55 8200SW Stripping Wheel 1
57 8200REW Eraser Wheel 1
68 8200HUB Adapter Set 1
71 8200WWF Wire Wheel (Fine) 1
74 8200WWM Wire Wheel (Medium) 1
75 8200WWC Wire Wheel (Coarse) 1

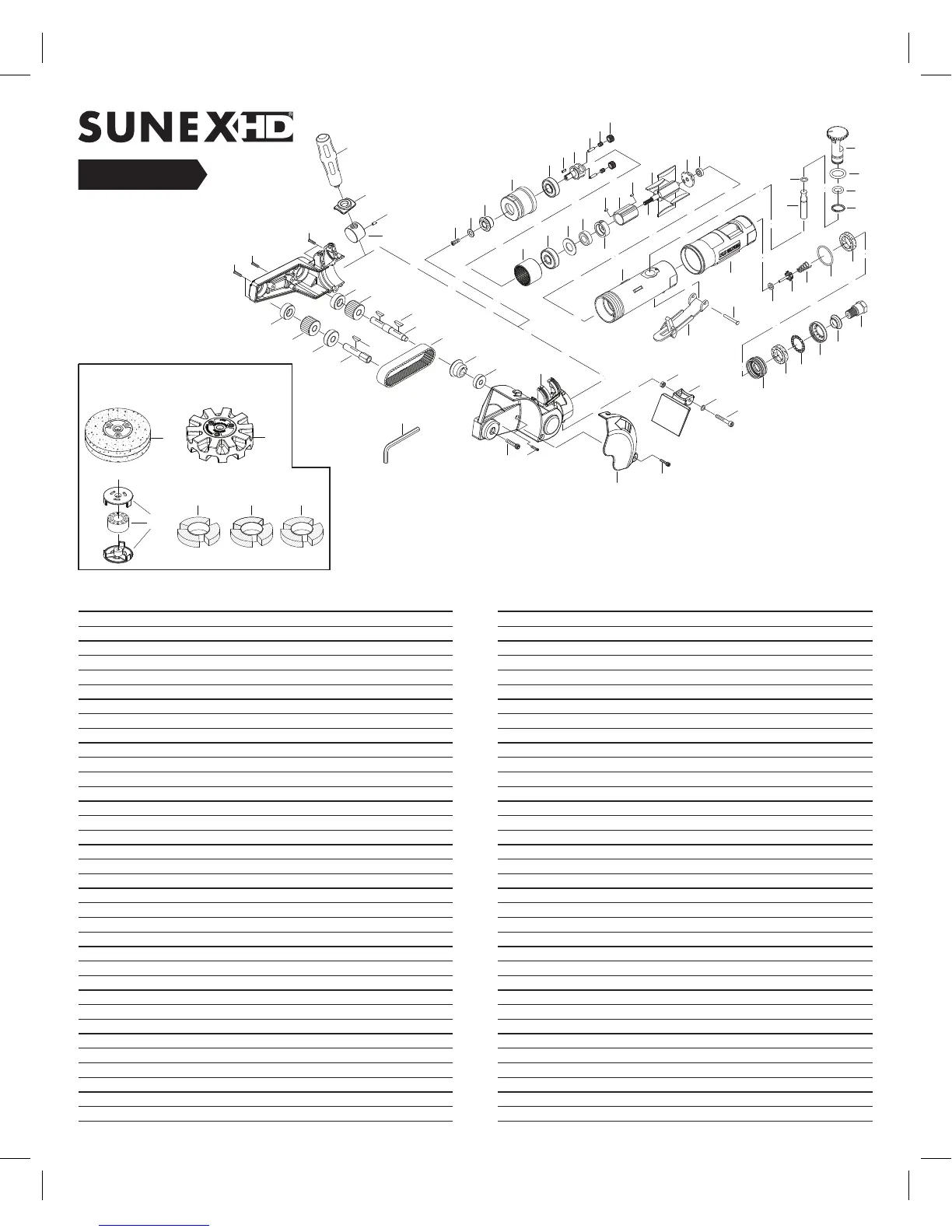

SURFACE BLASTER
SX8200
Kit includes the
following parts:
57
71
74
75
55
68
46
46
46
37
36
35
33
32
31
30
29
28
46
49
48
25
40
25
45
41
58
25
40
41
42
43
44
25
13
27
23
26
25
15
24
20
18
21
18
19
17
16
14
12
38
64
47
56
34
67
66
65
72
88
87
11
80
79
78
10
9
76
86
77
84
83
82
81
8
85
54
53
SX8200: Parts Breakdown & Operating Manual 4 1/19/12
SX8200_Manual_011912.indd 4 1/19/12 6:10 PM
