66035SJ 7 9/6/18

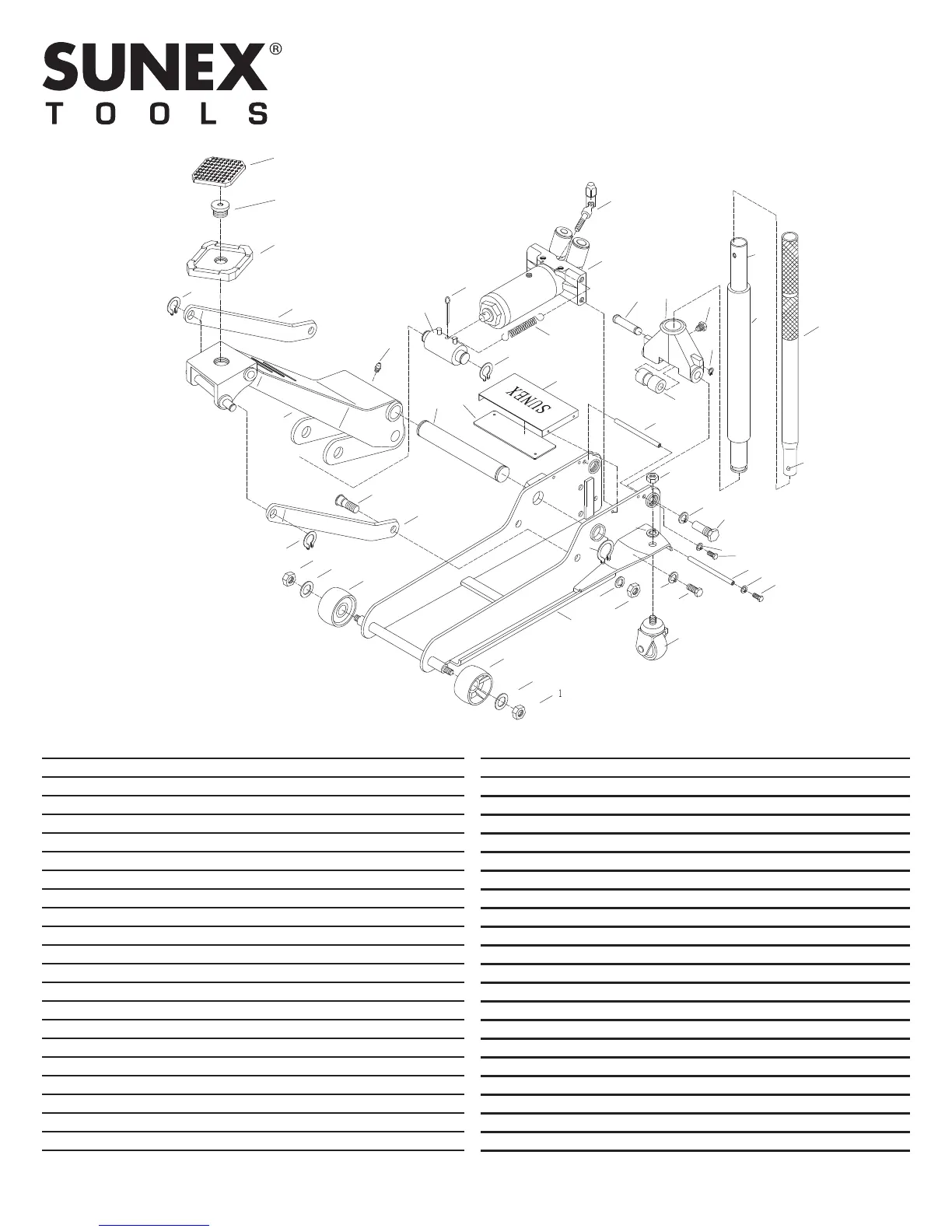

PARTS LIST
& DRAWING
Only items identified by part number are available for purchase.
REF # PART# DESCRIPTION QTY
1 RS3503 Locking Nut (M16) 2
2 RS3504 Washer 2
3 RS35B03A Front Wheel 2
4 Jack Frame 1
5 RS35T08 Spring Washer (16) (Incl. #6) 4
6 Nut (M16) (Incl. with #5) 4
7 RS35B10 Rear Caster Assembly (Incl. #5 & 6) 2
8 Bolt (M12x22) 4
9 Spring Washer (12) 4
10 Bolt (M8x20) (Incl. with #12) 4
11 Spring Washer (8) (Incl. with #12) 4
12 RS3503912 Lower Cross Bar Assembly (Incl. #10 & 11) 2
13 RS35T14 Handle Socket Bolt 2
14 Spring Washer (18) 2
15 Retainer Ring (30) 2
16 Pump Roller 1
17 Retainer Ring (12) 1
18 RS35T13 Handle Set Screw 1
19 RS3505BK Handle Yoke 1
20 RS3507 Handle Bumper 1
21 RS35025 Lower Handle 1
REF # PART# DESCRIPTION QTY
22 RS35024 Upper Handle 1
23 RS35THB Handle Button 1
24 RS35T18 Universal Joint Assembly 1
25
RS3508
Power Unit Assembly 1
26
Roller Pin 1
27
RS35T19
Lift Arm Return Spring 2
28
RS3509
Linkage Block 1
29 Retainer Ring (25) 2
30 RS35010 Cover Plate Assembly (Incl. #31) 1
31 Cover Plate (8) (Incl. with #30) 1
32 Lift Arm Axle 1
33
Guide Arm
2
34 Guide Arm Bolt 2
35 RS35T04
Retainer Ring (16)
2
36 Lift Arm 1
37 RS35T12 Grease Fitting 1
38 Cotter Pin (4x55) 1
39 RS35039RD Saddle 1
40 RS35018 Saddle Screw 1
41 RS35013 Rubber Saddle Pad 1
Not Shown RS66035SJPLK Product Label Kit 1
66035SJ
CAPACITY: 3.5 TON
STEEL SERVICE JACK
1
2
3
4
5
6
7
8
9
15
5
6
14
13
12
11
10
23
21
20
22
18
19
17
16
26
25
24
27
30
29
28
38
31
33
34
35
1
2
3
37
36
33
35
39
41
40
11
10
12
32
