Sunex Tools 6809A - Parts Identification; 6809 A Parts List and Drawing; 6810 A Parts List and Drawing

6809A and 6810A 3 rev. 12/05/18

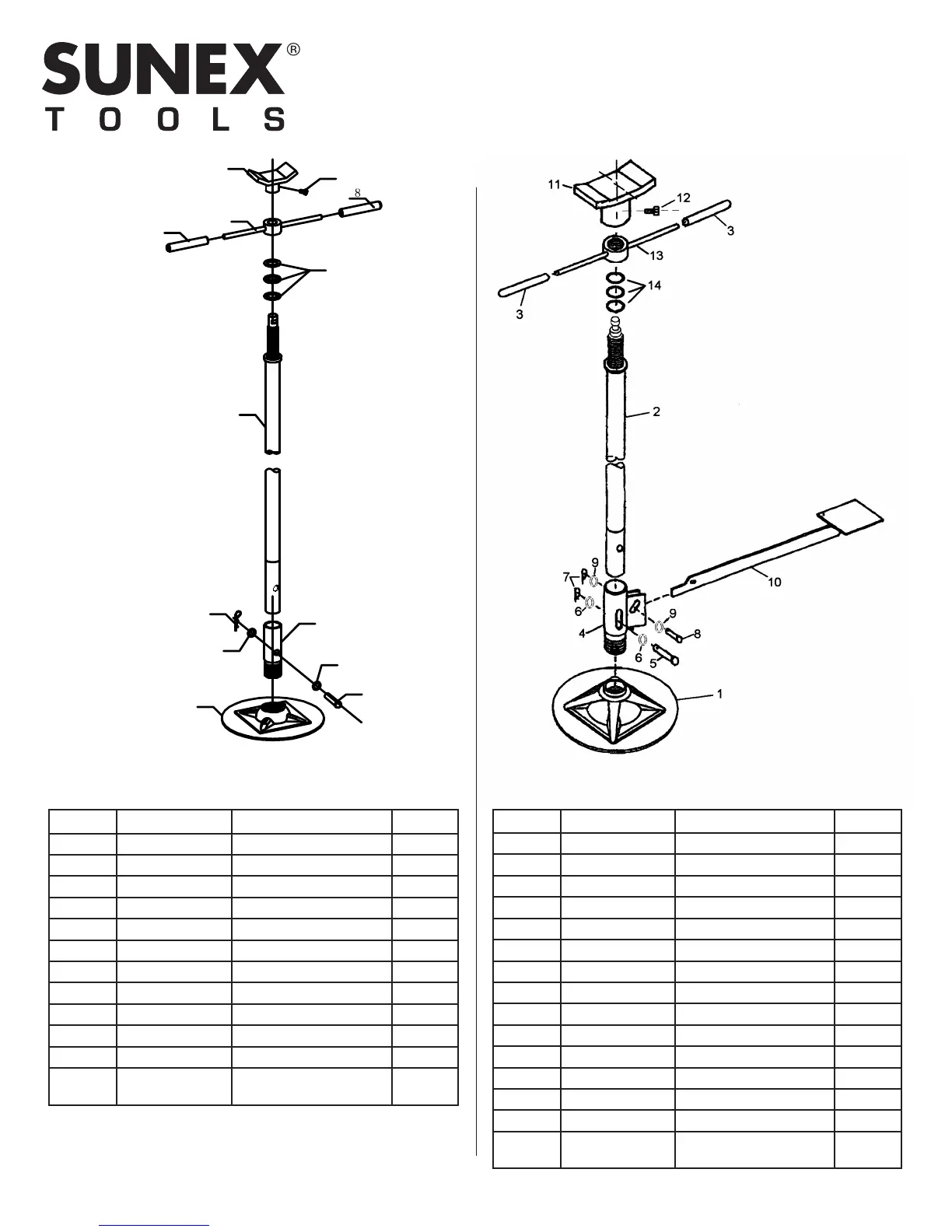

6809A
PARTS LIST
AND DRAWING
6810A
PARTS LIST
AND DRAWING
Index# Part# Description Qty.
1 RS6809A10 Base (Red) 1
2 * Cotter Pin 1
3 * Washer 2
4 * Clevis Pin 1
5 Post Support 1
6 Post 1
7 RS6809A13 Bearing Assembly 1
8 RS6809A14 Handle Grip ea. (Black) 2
9 RS6809A15 Handle (Red) 1
10 * Hex Bolt 1
11 RS6809A16 Saddle (Red) 1
not
shown
RS6809APLK Product Label Kit 1
* – RS6809AHK Hardware Kit ( includes: #2, #3, #4 & #10 )
Index# Part# Description Qty.
1 RS6809A10 Base (Red) 1
2 Post 1
3 RS6809A14 Handle Grip ea. (Black) 2
4 Post Support 1
5 * Clevis Pin 1
6 * Washer 2
7 * Cotter Pin 2
8 * Clevis Pin 1
9 * Washer 2
10 RS6810A01 Pedal (Red) 1
11 RS6809A16 Saddle (Red) 1
12 * Hex Bolt 1
13 RS6809A15 Handle (Red) 1
14 RS6809A13 Bearing Assembly 1
not
shown
RS6810APLK Product Label Kit 1
* – RS6810AHK Hardware Kit ( includes: #5, #6, #7, #8, #9 & #12 )
5
10
11
8
9
7
6
4
3
3
2
1
6809A and 6810A
CAPACITY: 1,500 LBS.
UNDER HOIST SUPPORT STANDS
