Sunex Tools SX246 - Parts Breakdown; Component Identification

SX246 Rev. A: Parts Breakdown & Operating Manual 3 Rev. 9/27/16
REF. PART DESCRIPTION QTY.
NO. NO.
1 RS50301 Motor Housing 1
2 RS50302 Trigger Pin (3x18) 1
3 RS50303 Regulator Pin (3x20) 1
4 RS50304 Valve 1
5 RS50305 O-Ring 2
6 RS50306 Air Regulator 1
7 RS50307 Air Inlet 1
8 RS50308 Spring 1
9 RS50309 Seal Plug 1
10 RS50310 Valve Stem 1
11 RS50311 Trigger 1
12 RS50312 Rear End Plate 1
13 RS50313 Valve Plate 1
REF. PART DESCRIPTION QTY.
NO. NO.
14 RS50314 Front End Plate 1
15 RS50315 Piston 1
16 RS50316 Cylinder 1
17 RS50317 Snap Ring (40) 1
18 RS50318 Clamp Nut 1
19 RS50319 Hammer 1
20 RS50320 Needle 19
21 RS50321 Needle Supporter 1
22 RS50322 Spring 1
23 RS50323 Screw (M8x8) 3
24 RS50324 Sleeve 1
RSSX246PL Product Label Kit (not shown) 1
SX246 Rev. A

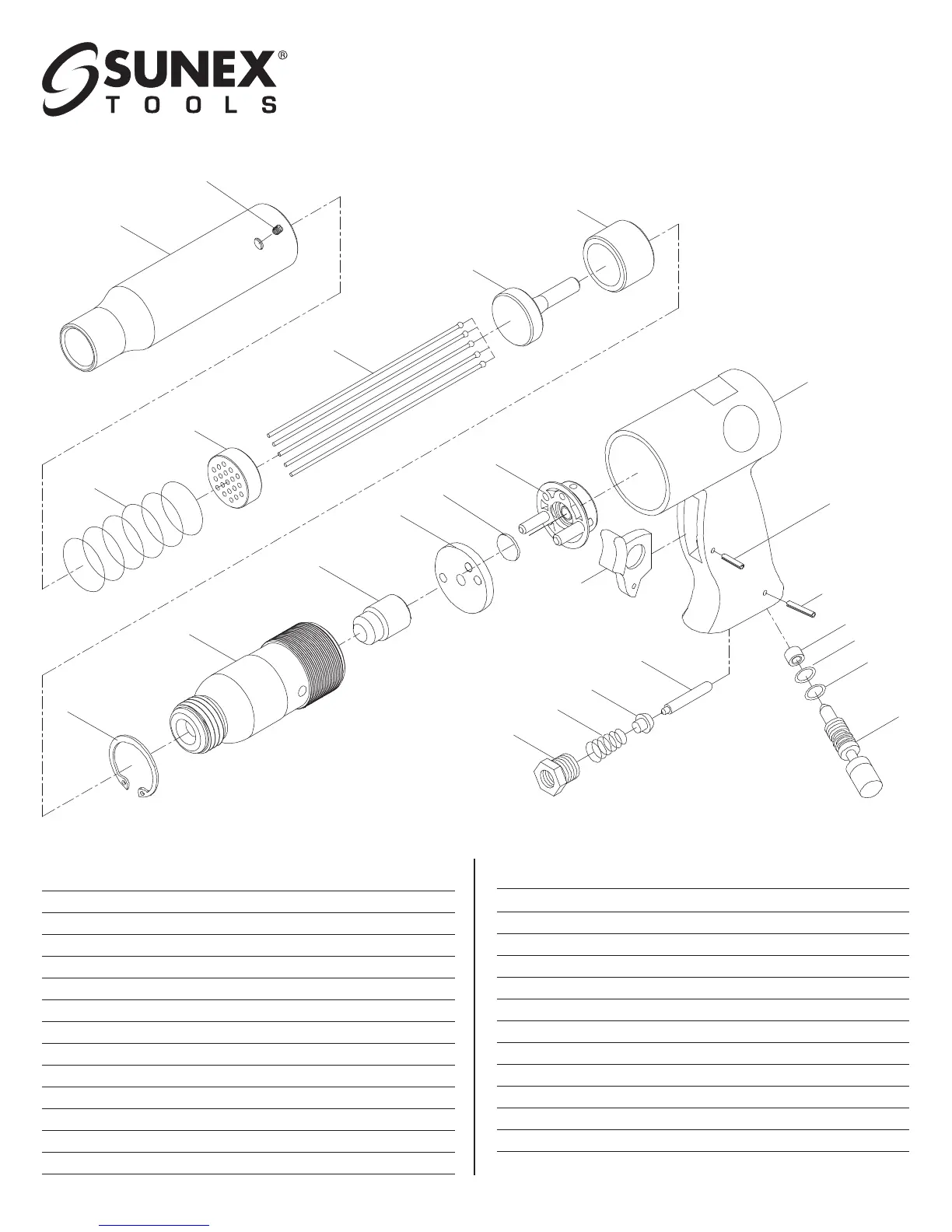

PISTOL GRIP NEEDLE SCALER
23
18
19
17
16
15
14
11
10
9
8
7
13
12
1
2
3
4
5
5
6
24
20
21
22
