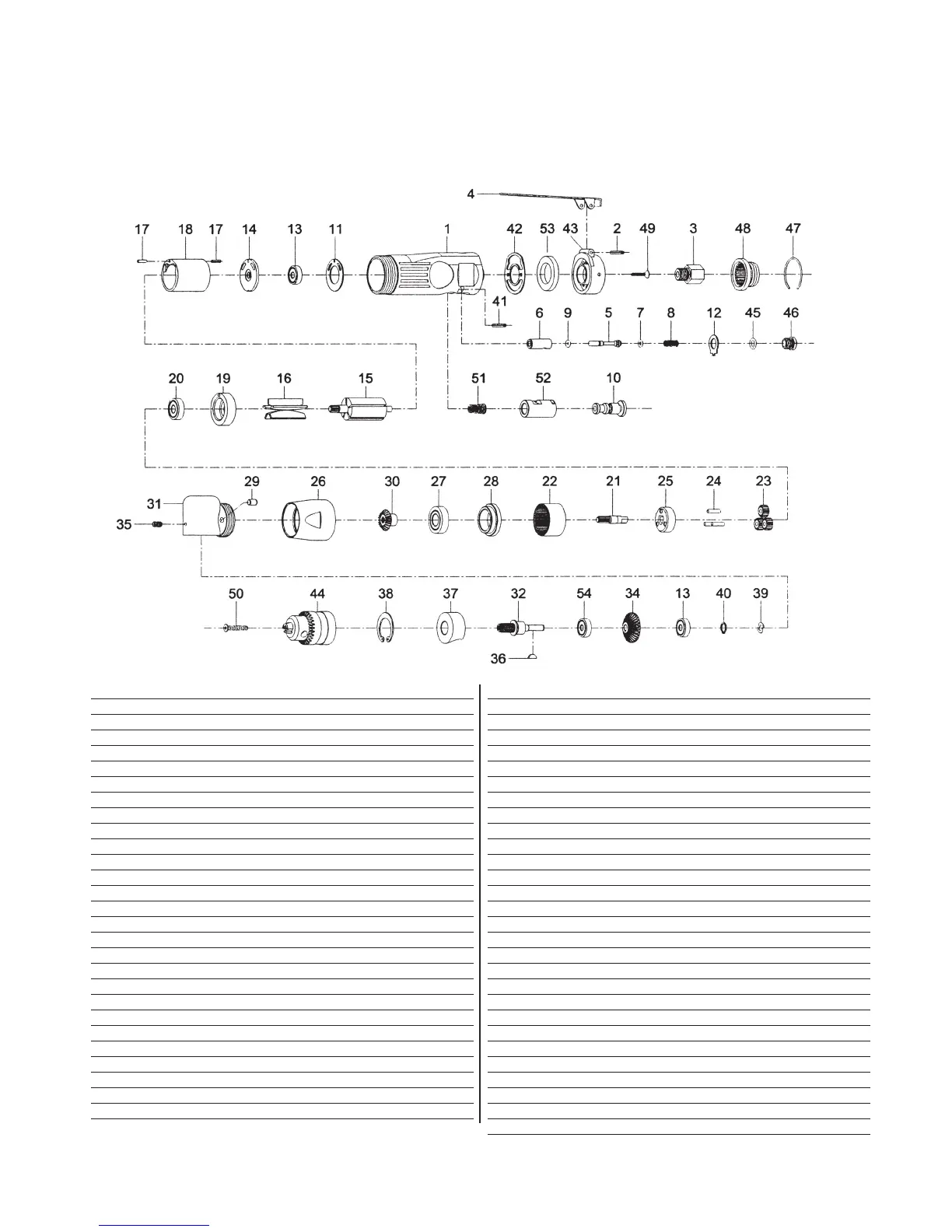

SX545B 3 Rev. 02/01/05
SX545B
3/8" Dr. H.D. Reversible
Right Angle Air Drill
Ref. # Item # DESCRIPTION QTY.
1 RS78701 Motor Housing 1
2 RS233A02 Spring Pin 1
3 RS233A03 Air Inlet 1
4 RS78704 Throttle Lever 1
5 RS78705 Valve Stem 1
6 RS78706 Valve 1
7 RS78707 O-Ring 1
8 RS78708 Spring 1
9 RS78709 O-Ring 1
10 RS78710 Reverse Lever 1
11 RS78711 Motor Gasket 1
12 RS78712 Reverse Retainer 1
13 RS21114 Ball Bearing 2
14 RS78714 End Plate 1
15 RS78715 Rotor 1
16 RS78716 Rotor Blades 5
17 RS78717 Spring Pin 2
18 RS78718 Cylinder 1
19 RS78719 Front End Plate 1
20 RS21417 Ball Bearing 1
21 RS78721 Shaft 1
22 RS78722 Internal Gear 1
23 RS78723 Planet Gear 3
24 Pin (Included with Item 25) 3
25 RS78725A Cage with Pins 1
26 RS78726 Lock Ring 1
27 RS227B25 Ball Bearing 1
Ref. # Item # DESCRIPTION QTY.
28 RS78728 Spacer 1
29 RS78729 Oil Cap 1
30 RS78730 Pinion 1
31 RS78731 Angle Housing 1
32 RS78755 Spindle (7mm) 1
34 RS78734 Gear 1
35 RS78735 Set Screw 1
36 RS78736 Key 1
37 RS78737 Bearing Cap 1
38 RS78738 Retainer Ring 1
39 RS78739 Wave Washer 1
40 RS78740 Retainer Ring 1
41 RS78741 Spring Pin 1
42 RS78742 Rear Gasket 1
43 RS78743 Rear Cover 1
44 RS87106 3/8" Jacobs® Chuck and Key 1
RS87106KK Key Only for RS87106
45 RS78745 O-Ring 1
46 RS78746 Throttle Valve Plug 1
47 RS233A29 Retainer Ring 1
48 RS233A06 Exhaust Deflector 1
49 RS78749 Screw 2
50 RS78750 Screw 1
51 RS78751 Spring 1
52 RS78752 Reverse Bushing 1
53 RS78753 Muffler 1
54 RS108A12 Ball Bearing (for 7mm Spindle) 1
