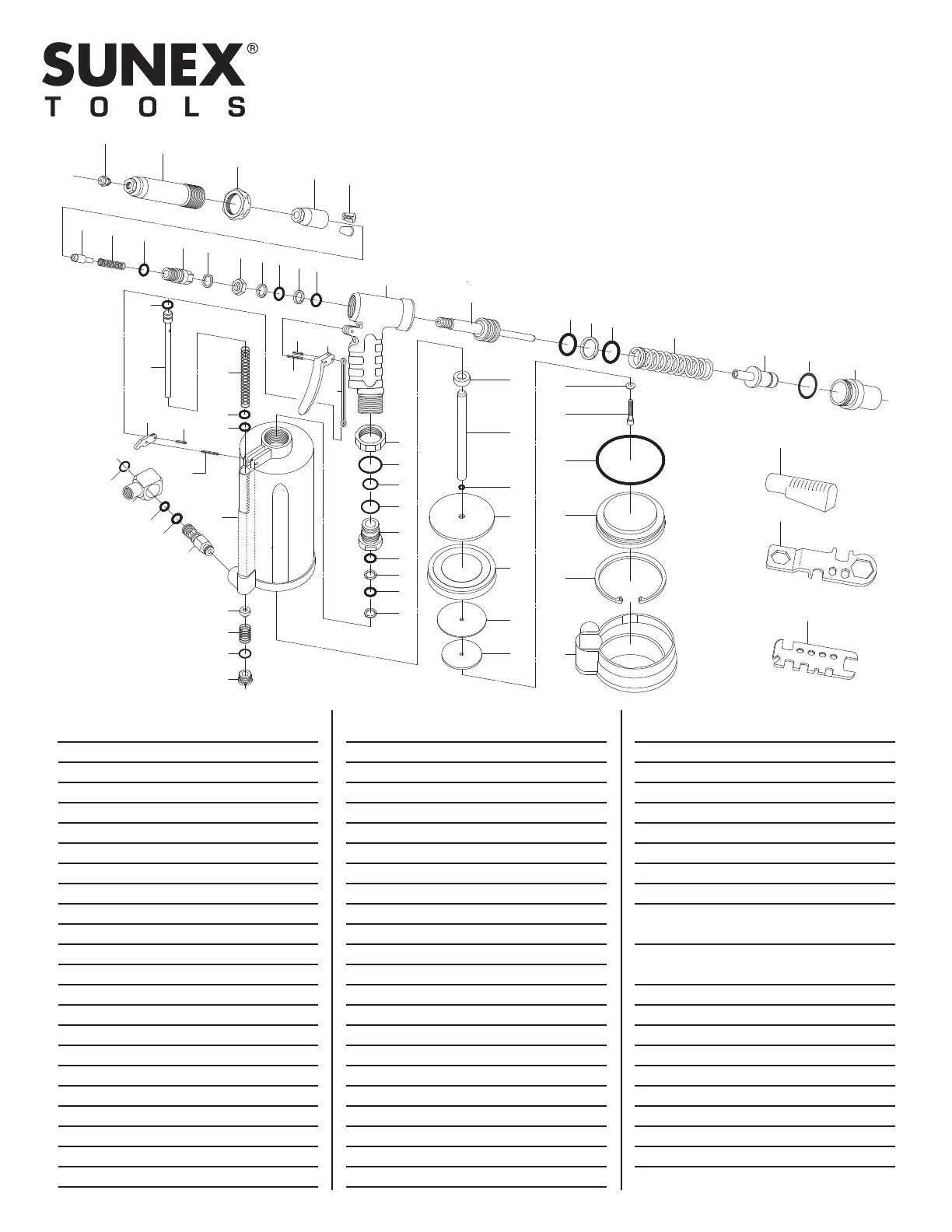

Sunex SX1819T - Parts Breakdown and Identification; Component Identification

SX1819T: Parts Breakdown & Operating Manual 3 Rev. 1/7/20
SX1819T
3/16" & 1/4" HEAVY DUTY
RIVET GUN
DESCRIPTION DESCRIPTION DESCRIPTION
PART
NO.
PART
NO.
PART
NO.
REF.
NO.
REF.
NO.
REF.
NO.
QTY. QTY. QTY.
1 RS819101 Hydraulic Section 1
1A RS819108 Plunger Rod Guide 1
1D RSOR1823 O-Ring 1
1E RSOR2227 O-Ring 1
2 RSBR1217 Back-up Ring 4
3 RSOR1217 O-Ring 4
4 RS721301 Hydraulic Plunger 1
5 RSBR2431 Back-up Ring 1
6 RSOR2431 O-Ring 2
7 RS721309 Retainer Spring 1
8 RS721112 Rear Gland 1
8A RS214103 Guide Tube 1
9 RSOR3034 O-Ring 1
10 RS214306 Nut 1
10A RSWW1317 Wave Washer 1
11 RS214308 Spring 1
12 RS214302 Jaw Pusher 1
13 RS819303 Jaw "L" 2
14 RS819304 Jaw Housing 1
14A RS721305 Jaw Housing Coupler 1
15 RS819105 Head 1
15A RS819106 Lock Nut 1
16 RS721401 Air Cylinder Body 1
17 RS918109 Lock Nut 1
17A RSOR2832 O-Ring 1
18 RS721502 Packing Ring (incl. w/ #22A) 1
18A RS721503 Front Head Disc (incl. w/ #22A) 1
18B RS721504 Rear Head Disc (incl. w/ #22A) 1
18C RSOR0509 O-Ring (incl. w/ #22A) 1
18D RS918504 Rear Head Disc (incl. w/ #22A) 1
19 RS819501 Plunger Rod (incl. w/ #22A) 1
20 RSPW0512 Washer (incl. w/ #22A) 1
21 RS508020 Lock Screw (incl. w/ #22A) 1
22 RS612505 Bumper Ring (incl. w/ #22A) 1
22A RS819500 Piston Assy (incl. #18 - #22) 1
23 RS721402 Air Cylinder Cap 1
23A RSOR8591 O-Ring 1
23B RSCH8084 Retaining Ring 1
24 RS918207 Throttle Valve 1
25 RS656204 Throttle Valve Spring 1
26 RSOR1417 O-Ring 2
27 RS612206 Valve Plug 1
28 RS918200 Valve Tube Assy 1
28A RS918204 Valve Tube Spring 1
28B RS618605 Brass Collar 1
28C RSOR0914 O-Ring 1
28D RSOR0812 O-Ring 1
29 RS612611 Long Trigger Lever 1
29A RS918602 Linkage 1
29B RS721603 Rocker Arm 1
29C RSSP3006 Roll Pin 2
29P RSSP3018 Roll Pin 2
30 RS612706 Nose Piece 3/16" (4.8mm) 1
RS612708 Nose Piece 1/4" (6.4mm) 1
31 RS922100 Swivel Joint Assy
(incl. #31A - #31D) 1
31A RS612715 Male Inlet Body (incl. w/ #31) 1
31B RS922A01 Female Inlet Body (incl. w/ #31) 1
31C RSCS1316 Snap Ring (incl. w/ #31) 1
31D RSOR1015 O-Ring (incl. w/ #31) 2
32 RS612901 Deflector 1
33 RS612904 Multi-Wrench (A) 1
34 RS918905 Multi-Wrench (B) 1
35 RS721403 Rubber Boot 1
RSSX1819TPLK Product Label Kit (not shown) 1
15
30
12
11
26
28D
28
28B
28C
29C
29P
16
29B
31B
31C
31D
31D
31A
24
25
26
27
28A
29C
29A
29
29P
14A
10A
10
2
3
2
3
1
4
6
20
21
23A
23
23B
18C
19
17
17A
1D
1E
1A
3
2
3
2
22
35
18A
18
18B
18D
6
5
7
8A
9
8
32
33
34
15A
14
13
