Sunex SX231B - Parts Breakdown; Assembly Components

SX231B: Parts Breakdown & Operating Manual 3 Rev. 6/27/16
NO
PART NO Q'TY FOB Shanghai
FOB Shanghai
Subtotal
NO
PART NO
1 Z34301-11 1 $2.16 $2.16 12.10 14426-1
1.1 34301-11 (N/A) 1 (N/A) 1 13 14427-1
1.2 14302-1 (N/A) 1 (N/A) 1 14 14428-1
2 14303-1 1 $0.32 $0.32 15 14529-1
3 14504-1 1 $0.05 $0.05 16 14337-1
4 14305-1 1 $0.03 $0.03 17 15002-1
5 13003-1 1 $0.03 $0.03 18 14338-5
6 14307-1 1 $0.11 $0.11 19 14339-4
7 14308-1 1 $0.03 $0.03
8 14309-1 1 $0.13 $0.13
9 14510-1 1 $0.03 $0.03
10 14311-1 1 $0.05 $0.05
11 14312-2 1 $0.18 $0.18
12.1 14315-1 1 $0.29 $0.29
12.2 14714-2 1 $0.35 $0.35
12.3 14348-1 1 $0.07 $0.07
12.4 14318-2 1 $0.84 $0.84
12.5 14319-2 4 $0.20 $0.80
12.6 14320-1 1 $0.41 $0.41
12.7 14322-2 1 $0.07 $0.07
12.8 64423-2 1 $0.35 $0.35
12.9 14325-1 1 $0.26 $0.26
SX231B 1/4"MINI DIE GRINDER
DESCRIPTION
Housing Assembly
Pin
0-Ring
0-Ring
Air Regulator
0-Ring
0-Ring
Valve Plug
Bearing
End Plate
Set Pin
Housing
Valve Bushing
Trigger Assembly
Cylinder
Rotor Spacer
Rotor
Rotor Blade
Valve Stem
Spring
Front Plate
Bearing
12.1
12.3
12.4
12.6
12.5
12.9
12.7
12.8
12.2
1.2
4
5
6
7
8
10
11
1.1
12.10
13
15
16
14
2
3
9
17
18
19
SX231B

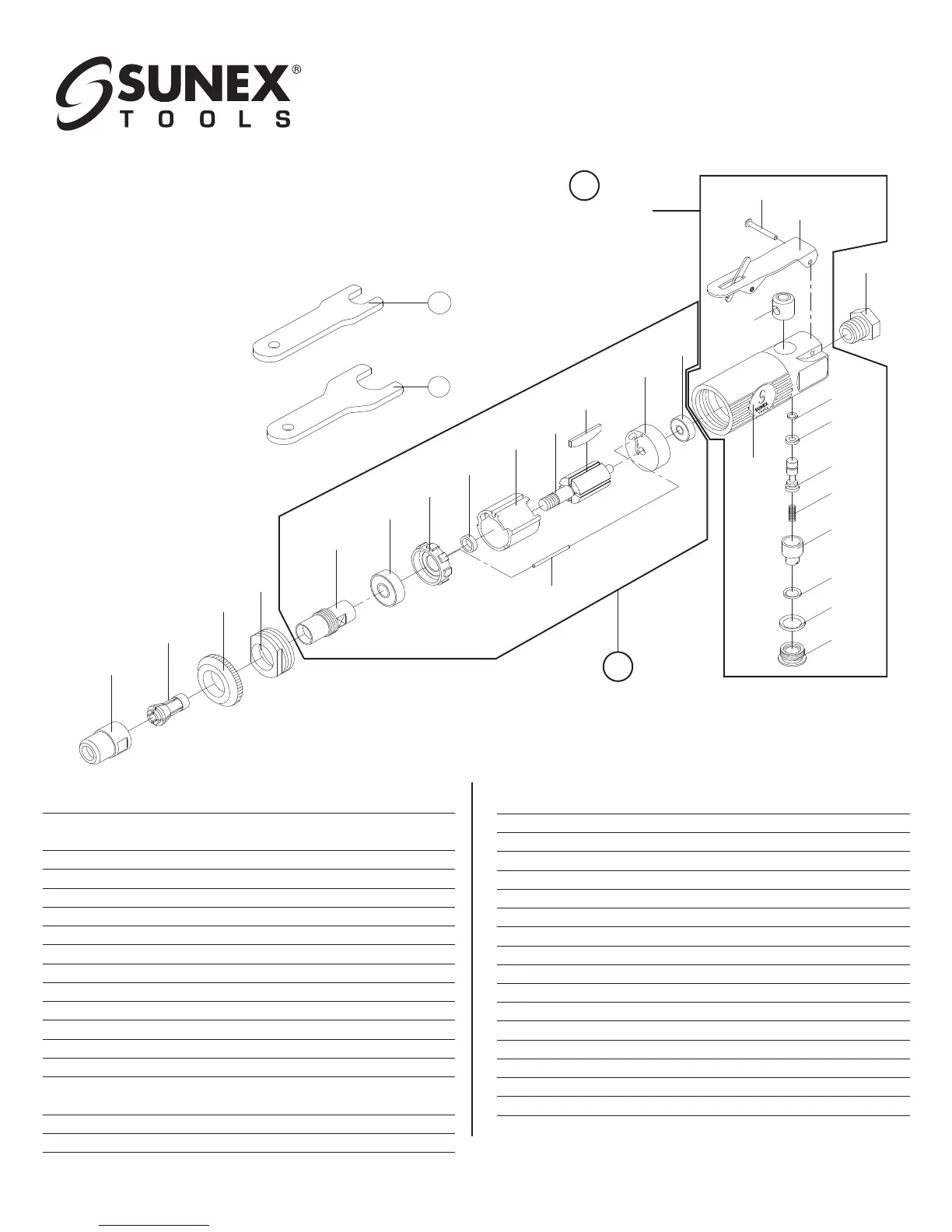

1/4" DRIVE MINI
AIR DIE GRINDER
REF. PART DESCRIPTION QTY.
NO. NO.
1 RS26401A Motor Housing Assembly
(incl. #1.1-11) 1
1.1 Housing (incl. with #1) 1
1.2 Valve Bushing (incl. with #1) 1
2 Trigger Assembly (incl. with #1) 1
3 Pin (incl. with #1) 1
4 O-Ring (incl. with #1) 1
5 O-Ring (incl. with #1) 1
6 Valve Stem (incl. with #1) 1
7 Spring (incl. with #1) 1
8 Air Regulator (incl. with #1) 1
9 O-Ring (incl. with #1) 1
10 O-Ring (incl. with #1) 1
11 Valve Plug (incl. with #1) 1
12 RS231B02A Air Motor Assembly
(incl. #12.1-12.10) 1
12.1 Bearing (incl. with #12) 1
12.2 End Plate (incl. with #12)
REF. PART DESCRIPTION QTY.
NO. NO.
12.3 Set Pin (incl. with #12) 1
12.4 Rotor (incl. with #12) 1
12.5 Rotor Blade (incl. with #12) 4
12.6 Cylinder (incl. with #12) 1
12.7 Rotor Spacer (incl. with #12) 1
12.8 Front Plate (incl. with #12) 1
12.9 Bearing (incl. with #12) 1
12.10 Collet Holder (incl. with #12) 1
13 RS231B28 Retainer 1
14 RS231B29 Housing Cap 1
15 RS26437 1/4" Collet 1
16 RS26438 Collet Nut 1
17 RS26441 Air Inlet 1
18 RS26439 Wrench 1
19 RS26440 Wrench 1
20 RSSX231BPLK Product Label Kit (not shown) 1
Only items identified by part # are available individually.
RS231B02A
Air Motor
Assembly
12
1
RS26401A
Motor Housing
Assembly
