U_GO_PL_SUNFIRE_SDG1SDG2 (Rev 18) Page 7
SUNFIRE PARTS IDENTIFICATION
Gas Convection Ovens models SDG-1, SDG-2

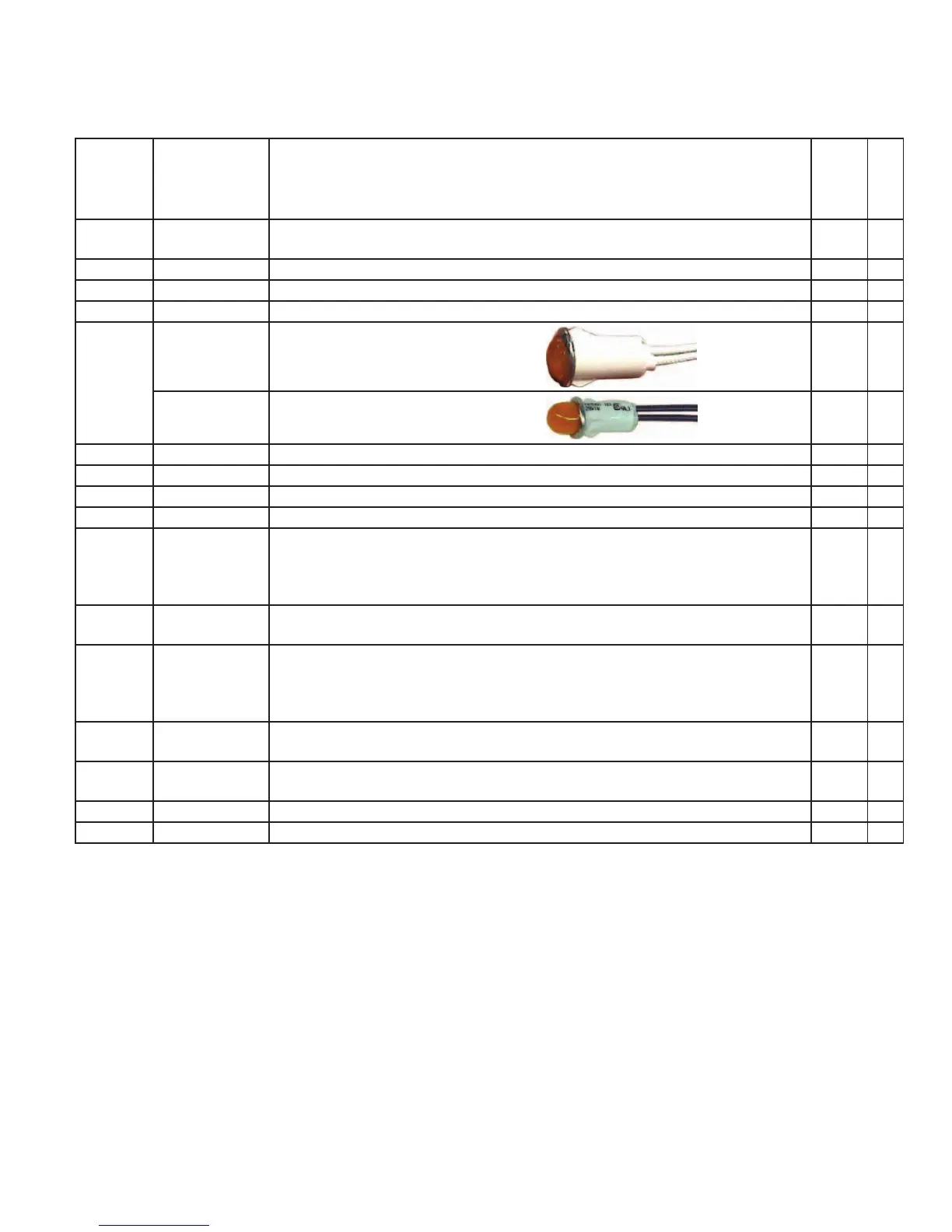

MANUAL CONTROL PANEL COMPONENTS
ITEM PART # DESCRIPTION QTY
CRITICAL
1 1719805
Control Panel - S/S, Manual
Note: Control Panel with P/N 1719801 is No Longer Available.
1
3 1657913 Overlay - Manual Control, 2SP, Sunre 1
4 1671100 Polar Fan - 115V, 120mm 1 C
5 1006489 Pilot Light - Green, 120V 1
6
1006496
Amber Pilot Light (115V)
Note: Used UP TO December, 1987.
1
1270000
Pilot Light - Amber (28V)
Note: Used FROM 6-Nov-95.
1
7 1955402 Rocker Switch - ON/ON 1 C
8 1955401 Rocker Switch - ON/OFF/ON 1 C
9 1181000 Momentary Push Switch 1 C
10 1749201 Panel Restraining Bracket 1
11 G027161
Dial - Small Shaft, Universal
Note: Used for the Thermostat (item 15) and the Mallory Timer (item14A). There
are two types of timers. Please check the type of timer used in the unit before
ordering.
MAX.
2
C
12 1314121 Dial Insert (for item 11)
MAX.
2
13 1765802
Fluted Knob (includes 2 set screws)
Note: Used FROM 1-Jan-07. Required for Timer P/N 1956001 (item 14B). There
are two types of timers. Please check the type of timer used in the unit before
ordering.
1
14A 1285700
Mallory Timer - 1hr, 115V, 50-60Hz
Note: Used UP TO 31-Dec-06. Used with the Universal Dial (item 11).
1 C
14B 1956001
Timer with Alarm - 1hr, 115V
Note: Used FROM 1-Jan-07. Used with the Fluted Knob (item 13).
1 C
15 G0290201 Thermostat 1 C
16 4515632 Main Harness SDG-1, 120V, Gas 1
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
